Name: Sanwa CD800a2 Digital Multimeter
Brand: Sanwa
Availability: InStock

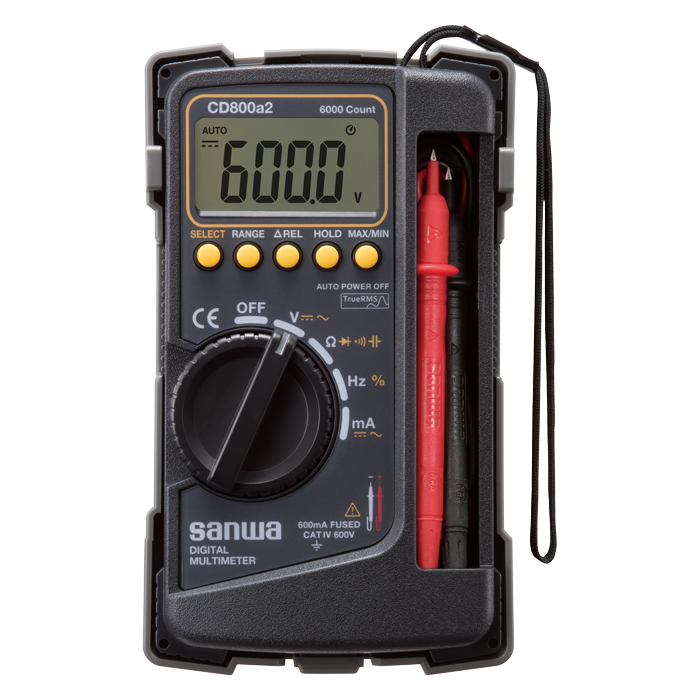

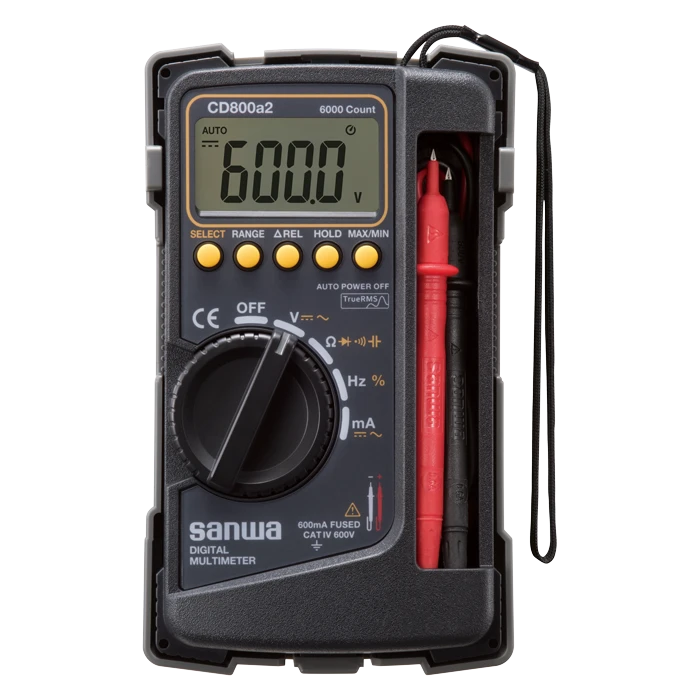

Sanwa CD800a2 Digital Multimeter – Reliable & Accurate Testing Solution

The Sanwa CD800a2 Digital Multimeter is a high-quality, compact, and versatile measuring tool designed for both professionals and beginners in the electrical and electronics field. Known for its accuracy, durability, and user-friendly design, this multimeter is widely used for testing voltage, current, resistance, continuity, and diode checks. Whether you are an electrician, technician, or hobbyist, the Sanwa CD800a2 ensures reliable performance with safety features you can trust.

With its advanced auto-ranging function, the Sanwa CD800a2 makes measurement easier and faster without the need to adjust ranges manually. The clear LCD display provides quick readings, while its ergonomic design ensures comfortable handling during long use. It also includes essential protective features like overload protection, ensuring long-lasting performance in demanding environments.

If you are searching for the Sanwa CD800a2 Digital Multimeter Price in Bangladesh, Tools Bangladesh offers this genuine product at a competitive rate. We ensure 100% authentic Sanwa tools directly from trusted sources, giving you confidence in quality and durability.

At Tools Bangladesh, we don’t just sell products—we deliver trust and value. By purchasing from us, you can be assured of after-sales support, reliable warranty policies, and fast delivery across Bangladesh. Our goal is to provide the best testing and measurement tools at affordable prices so that professionals and industries can perform their jobs with confidence.

Upgrade your toolkit today with the Sanwa CD800a2 Digital Multimeter from Tools Bangladesh—your trusted partner for authentic electrical tools in Bangladesh.

Key Features

6000 count
True RMS
0.7 best accuracy (DCmV)
Max/Min value hold
Data hold, Range hold, Relative function
Auto power off (30min.)(cancelable)

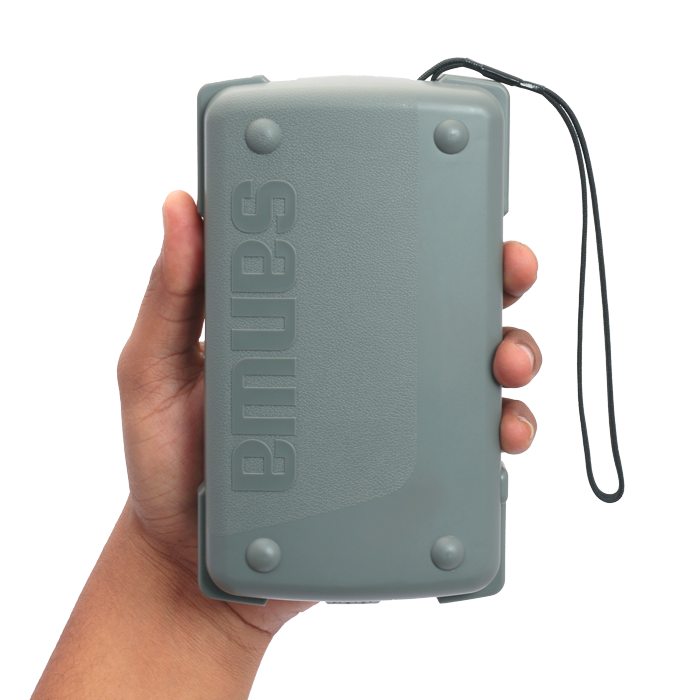

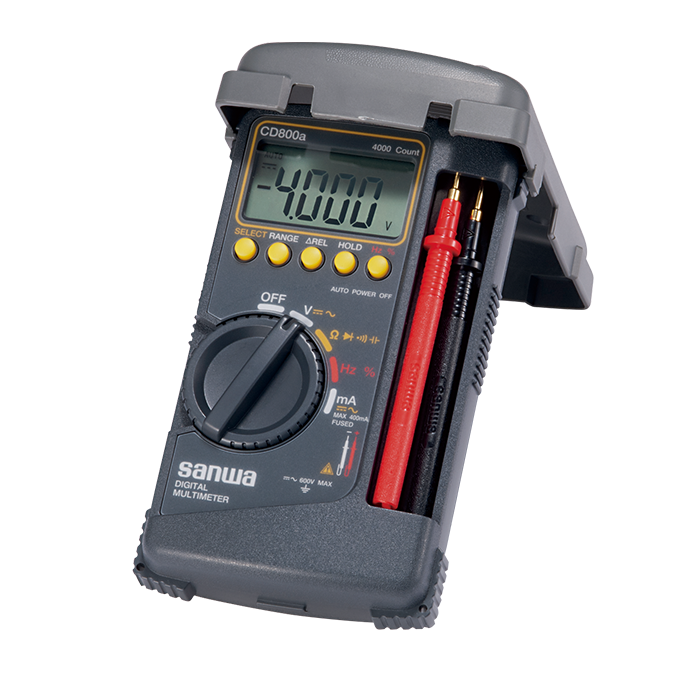

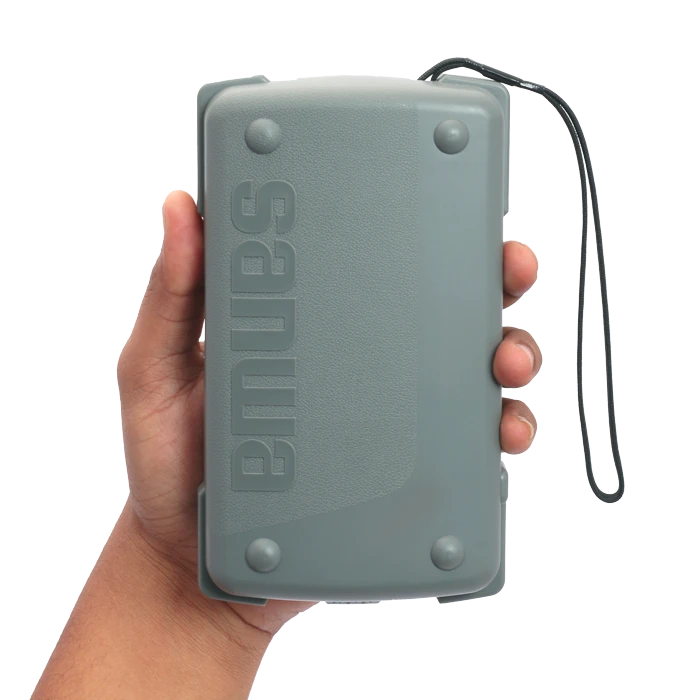

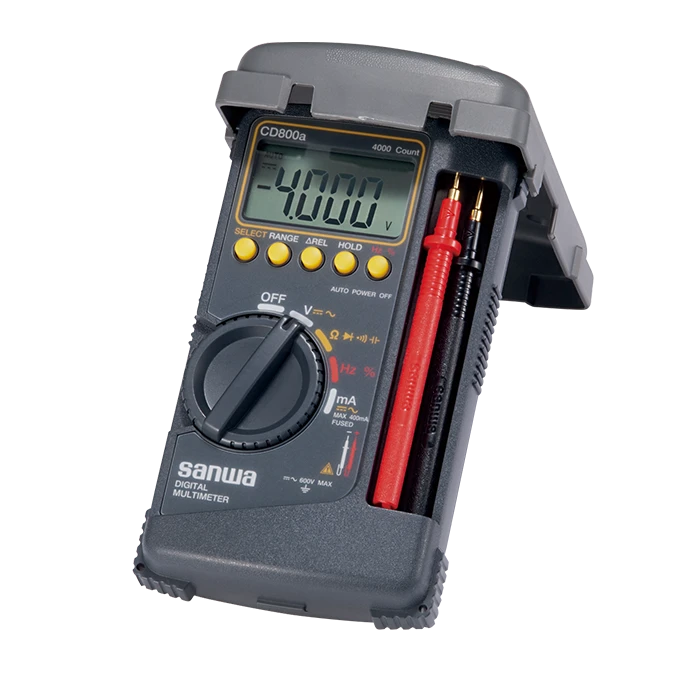

Body cover for protection and as a tilt stand
Chip holder behind the body cover

Specifications

CD800a2	Measuring range	Best accuracy	Resolution	Input impedance
DCV	600m/6/60/600V	±(0.7%+3)	0.1mV	10MΩ
ACV	6/60/600V	±(1.6%+5)	0.001V	10MΩ
DCA	60m/600mA	±(2.2%+5)	0.01mA
ACA	60m/600mA	±(2.8%+5)	0.01mA
Resistance	600/6k/60k/600k/6M/60MΩ	±(1.2%+5)	0.1 Ω
Capacitance	60n/600n/6μ/60μ/600μ/6mF	±(5%+10)	0.01nF
Frequency	9.999/99.99/999.9/9.999k/99.99kHz	±(0.5%+3)	0.001Hz
Duty cycle	20% to 80%	±(0.5%+5)	0.1%
Continuity	Buzzer sounds at 39-60Ω or less. Open voltage: approx. 0.4V
Diode test	Open voltage: approx. 3V

Display	numerical display 6000/9999(Hz function)
Sampling rate	3 times/sec.
Bandwidth	40-400Hz
Fuse	0.6A/600V 10kA Φ6.3×32mm
Battery	R6x2
Battery life	Approx. 650 hours at DCV
Size/Mass	H176×W104×D46mm/Approx. 340g
Test lead length/Pin tip	Length: approx. 0.77m/19mm
Safety standards	IEC61010 CAT.IV 600V
