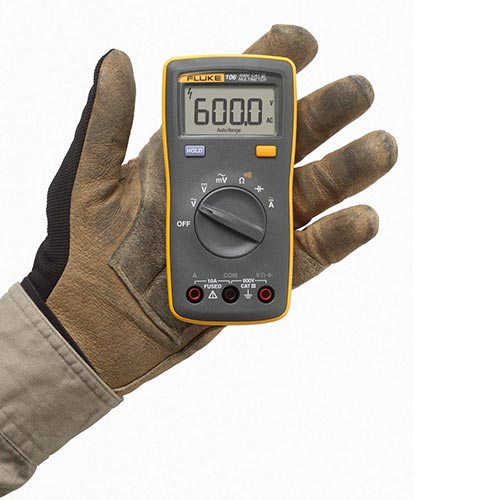

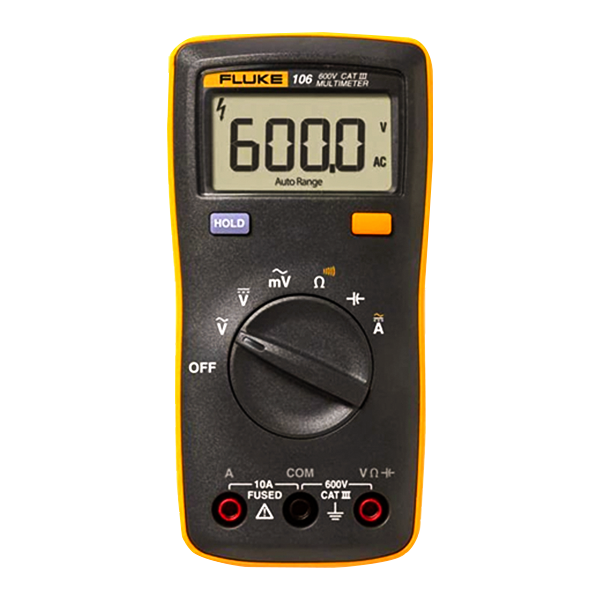

Fluke 106 Palm sized Digital Multimeter

Supplier: Iconic Engineering Limited

Out of Stock Ask for Price

Model: Fluke 106 Palm sized Digital Multimeter

Fluke 106 Palm-sized Digital Multimeter always provides an accurate and reliable result. The screen and controls are nicely portioned and, despite being Chinese made, it has the good build quality and category ratings.

Fluke 106 Palm-sized Digital Multimeter not only provides the best result but the value of this meter always spot on. The main things about Fluke 106 digital multimeter always provide an accurate and reliable result in any environment. We offer the best Fluke multimeter for you with free delivery anywhere in Bangladesh through Tools Bangladesh.

Features

Key Features: Fluke 106 Palm-sized Digital Multimeter

Voltage, resistance, continuity, capacitance
Input terminal for ac and dc current measurements to 10 A and current
Data hold

Specifications

Specifications: Fluke 106 Palm-sized Digital Multimeter

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits])

Accuracy Specifications
Function		Range	Resolution	Accuracy
AC Volts (40 Hz to 500Hz)¹		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	1.0 % + 3
DC Volts		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	0.5 % + 3
AC Millivolts		600.0 mV	0.1 mV	3.0 % + 3
Diode Test²		2.000 V	0.001 V	10 %
Resistance (Ohms)		400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
Capacitance³		50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency⁴ Hz (10 Hz – 100 kHz)		50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	NA
Duty Cycle⁴		1 % to 99 %	0.1 %	NA
AC Current (40 Hz to 200 Hz)		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC Current		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA. Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range). All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
Function	Overload Protection	Input Impedance (Nominal)	Common Mode Rejection Ratio	Normal Mode Rejection Ratio
AC Volts	600 V ¹	>10 MΩ <100 pF ²	>60 dB at dc, 50 Hz or 60 Hz	−
\AC Millivolts	600 mV	>1M, <100 pF	>80 dB at 50 Hz or 60 Hz	−
DC Volts	600 V ¹	>10 MΩ <100 pF	>100 dB at dc, 50 Hz or 60 Hz	>60 dB at 50 Hz or 60 Hz
6 x 105 V Hz Max For mV (AC), input impedance is approximately 1 MΩ.
General Specifications
Maximum Voltage Between any Terminal and Earth Ground		600 V
Display (LCD)		6000 counts, updates 3/sec
Battery Type		2 AAA, NEDA 24A, IEC LR03
Battery Life		200 hours minimum
Temperature
Operating		0 °C to 40 °C
Storage		-30 °C to 60 °C
Relative Humidity
Operating Humidity		Non-condensing when <10°C ≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C
Operating Humidity, 40 MΩ Range		≤80 % at 10 °C to 30 °C; ≤70 % at 30 °C to 40 °C
Altitude
Operating		2000 m
Storage		12,000 m
Temperature Coefficient		0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Fuse Protection for Current Inputs		11A, 1000V Fast Fuse, Fluke specified part only
Size (HxWxL)		142 mm x 69 mm x 28mm
Weight		200 g
IP Rating		IEC 60529: IP 40
Safety		IEC 61010-1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment		IEC 61326-1: Portable
Electromagnetic Compatibility		Applies to use Korea only. Class A Equipment (Industrial Broadcasting and Communication Equipment)¹
This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
