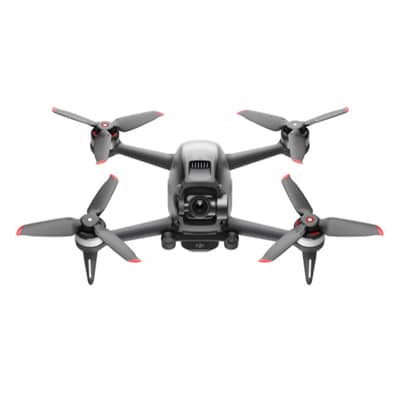

DJI FPV

Key Features:

• 8 Channels, 8 Drones
• 1080p Aerial Footage
• Multi-Antenna Technology

Specifications:

Camera

• Sensor

• 1/2.3” CMOS
  Effective pixels: 12 million

• Lens

• FOV: 150°
  35mm Format Equivalent: 14.66 mm
  Aperture: f/2.8
  Focus Mode: Fixed Focus
  Focus Range: 0.6 m to ∞

• ISO

• 100-12800

• Shutter Speed

• 1/50-1/8000 s

• Still Photography Modes

• Single shot

• Max Image Size

• 3840×2160

• Photo Format

• JPEG

• Video Resolution

• 4K: 3840×2160 at 50/60fps
  FHD: 1920×1080 at 50/60/100/120fps

• Video Formats

• MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC）

• Max Video Bitrate

• 120 Mbps

• Color Profile

• Standard, D-Cinelike

• RockSteady EIS

• Available

• Distortion Correction

• Available

• Supported File Formats

• exFAT (recommended)
  FAT32

Gimbal

• Mechanical Range

• Tilt: -65° to 70°

• Controllable Range

• Tilt: -50° to 58°

• Stabilization

• Single-axis (tilt), electronic roll axis

• Max Control Speed

• 60°/s

• Angular Vibration Range

• ±0.01° (N mode)

• Electronic Roll Axis

• Available (can stabilize footage when the aircraft is tilted at angles of up to 10°)

Aircraft

• Takeoff Weight

• Approx. 795 g

• Dimensions

• 255×312×127 mm (with propellers)
  178×232×127 mm (without propellers)

• Diagonal Distance

• 245 mm

• Max Ascent Speed

• M mode: No limit
  S mode: 15 m/s
  N mode: 8 m/s

• Max Descent Speed

• M mode: No limit
  S mode: 10 m/s
  N mode: 7 m/s

• Max Speed

• 140 kph; M mode: 39 m/s (27 m/s in Mainland China)
  S mode: 27 m/s
  N mode: 15 m/s

• Max Acceleration

• 0-100 kph: 2 s (in ideal conditions while flying in M mode)

• Max Service Ceiling Above Sea Level

• 6,000 m

• Max Flight Time

• Approx. 20 mins (measured while flying at 40 kph in windless conditions)

• Max Hover Time

• Approx. 16 mins (measured when flying in windless conditions)

• Max Flight Distance

• 16.8 km (measured while flying in windless conditions)

• Max Wind Speed Resistance

• 39-49 kph (25-31 mph)

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Transmitter Power (EIRP)

• 2.400-2.4835 GHz
  FCC: ≤ 31.5dBm
  CE: ≤ 20 dBm
  SRRC: ≤ 20 dBm
  MIC: ≤ 20 dBm

  5.725-5.850 Ghz
  FCC: ≤ 31.5 dBm
  CE: ≤ 14 dBm
  SRRC: ≤ 25.5 dBm

• Number of Antennas

• Four

• GNSS

• GPS+GLONASS+GALILEO

• Hovering Accuracy Range

• Vertical:
  ±0.1 m (with Vision Positioning)
  ±0.5 m (with GPS positioning)

  Horizontal:
  ±0.3 m (with Vision Positioning)
  ±1.5 m (with GPS positioning)

• Supported SD Cards

• microSD (up to 256 GB)

• Internal Storage

• N/A

Sensing System

• Forward

• Precision Measurement Range: 0.5-18 m
  Obstacle Sensing: Available in N mode only
  FOV: 56° (horizontal), 71° (vertical)

• Downward (dual vision sensors + ToF)

• ToF Effective Sensing Height: 10 m
  Hovering Range: 0.5-15 m
  Vision Sensor Hovering Range: 0.5-30 m

• Downward Auxillary Light

• Single LED

• Operating Environment

• Refers to non-reflective, discernible surfaces
  Diffuse reflectivity >20% (e.g. walls, trees, people)
  Adequate lighting conditions (lux >15 in normal indoor lighting conditions)

Charger

• Input

• 100-240 V, 50/60 Hz, 1.8 A

• Output

• Battery charging interface:
  25.2 V ± 0.1 V
  3.57 A ± 0.1 A (high current)
  1 A ± 0.2 A (low current)

  USB Port:
  5V/2A (×2)

• Rated Power

• 86 W

Intelligent Flight Battery

• Battery Capacity

• 2000 mAh

• Voltage

• 22.2 V

• Max Charging Voltage

• 25.2 V

• Battery Type

• LiPo 6S

• Energy

• 44.4 Wh@0.5C

• Discharge Rate

• Standard: 10C

• Weight

• 295 g

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Max Charging Power

• 90 W

Video Transmission

• Operating Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Communication Bandwidth

• 40 MHz (Max.)

• Live View Mode

• Low-Latency Mode: 810p/120fps ≤ 28ms
  High-Quality Mode: 810p/60fps ≤ 40ms

• Max Video Bitrate

• 50 Mbps

• Transmission Range

• 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

• Audio Transmission Support

• Yes
