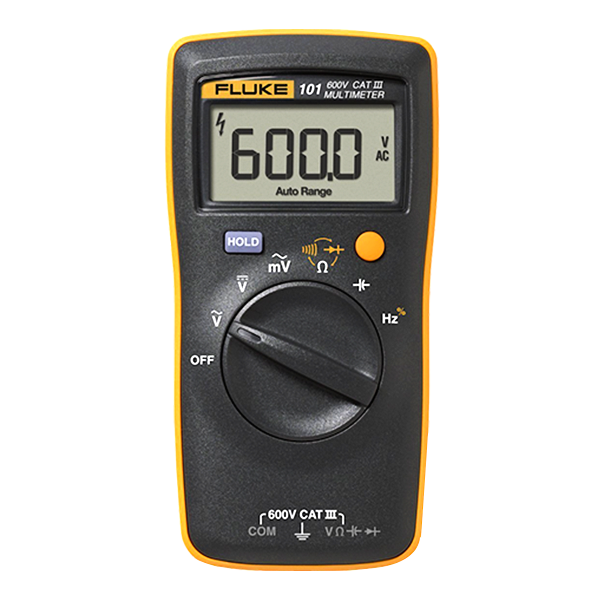

Fluke 101 Digital Multimeter
Fluke 101 Digital Multimeter, the first-choice multimeter for electrical professionals. We offer lowest price & best Digital Multimeter in Bangladesh.Fluke 101
Model: Fluke 101 Digital Multimeter
Fluke 101 Digital Multimeter easy to use and always provide an accurate result. One of the best Digital Multimeter that you are looking for. This multimeter has a CAT III 600 V safety rating & LCD screen. You can easily measure voltages, resistance, continuity, capacitance, and frequency.
Fluke 101 Digital Multimeter also called pocket Multimeter. You can easily carry on another place without hassle. Iconic Engineering offers the brand new Fluke 101 Digital Multimeter through Tools Bangladesh. Do you know? our delivery is fully free! We make this very easy for you. Keep it very simple and get the best Fluke 101 Digital Multimeter that you are looking for.
Key Features: Fluke 101 Digital Multimeter
- Basic dc accuracy 0.5%
- CAT III 600 V safety rated
- The battery is easy to replace
- Diode and continuity test with buzzer
- Automatic shutdown

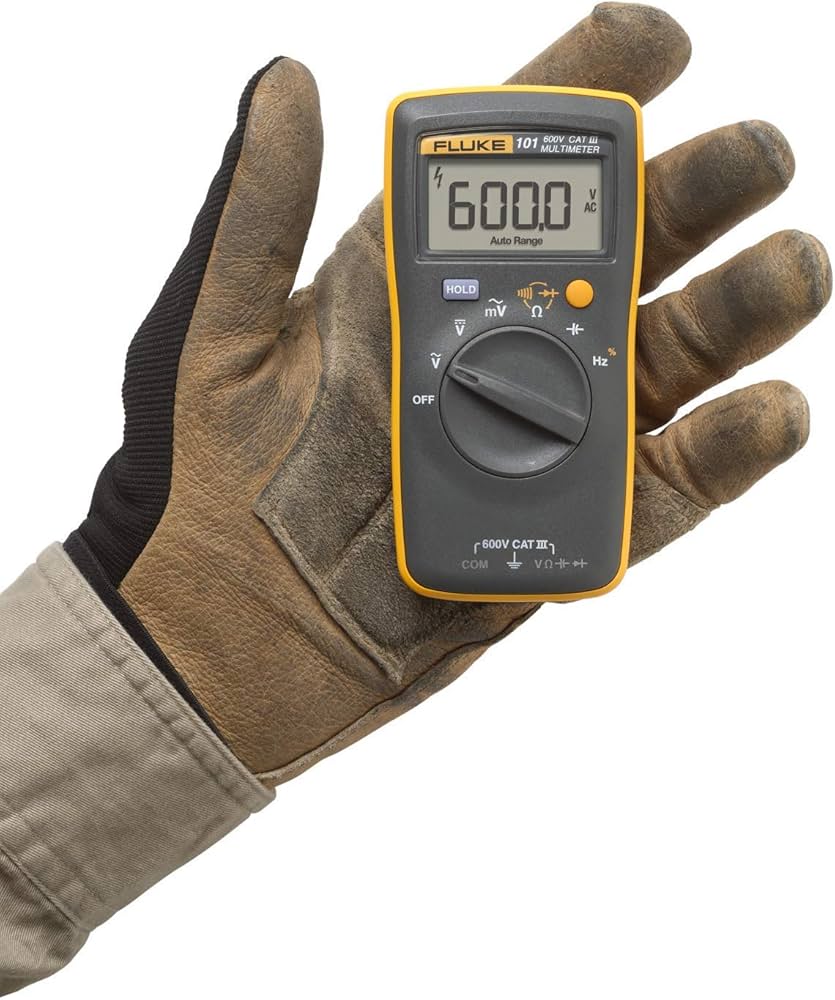

- Small lightweight design for one-handed use
- Rugged, durable design
Specification: Fluke 101 Digital Multimeter
Electrical Specifications | ||
V AC (40-500Hz) | Range | 600.0 mV 6.000 V 60.00 V 600.0 V |
Resolution | 0.1 mV 0.001 V 0.01 V 0.1 V |
|
Accuracy | 3.0%±3 digit 1.0%±3 digit |
|
V DC | Range | 6.000 V 60.00 V 600.0 V |
Resolution | 0.001 V 0.01 V 0.1 V |
|
Accuracy | 0.5%±3 digit | |
Resistance Ohms | Range | 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ |
Resolution | 0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ |
|
Accuracy | 0.5 %±3 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 1.5%±3 digit |
|
Capacitance | Range | 50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000.0 μF |
Resolution | 0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF |
|
Frequency (10 Hz – 100 kHz) |
Range | 50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz |
Resolution | 0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz |
|
Duty Cycle | Range | 0.1 % to 99.9 % |
Resolution | 0.1 % | |
General Specifications | ||
CAT Rating | CAT III 600 V | |
V AC Range | 600.0 V | |
V DC Range | 600.0 V | |
Ohms Range | 40.00 MΩ | |
Auto Shutoff | Y | |
Continuity | Y | |
Capacitor | 100.0 μF | |
Frequency | 100.0 kHz | |
Hold | No | |
Duty Cycle | Yes | |
Size | 130 mm x 65 mm x 27mm | |
Weight | 160 g | |
Battery | Two AAA | |
Warranty | 1 year | |
Environmental Specifications | ||
Operating Temperature | 0 °C to +40 °C | |
Storage Temperature | -30 °C to +60 °C | |
Operating Humidity | Non condensing (<10 °C) <=90% RH (at 10 °C to 30 °C) <=75% RH (at 30 °C to 40 °C) (Without Condensation) |
|
Operating Humidity, 40 MΩ | 80% RH 10 °C to 30 °C, 70% RH 30 °C to 40 °C | |
Operating Altitude | 2,000 meters | |
Storage Altitude | 12,000 meters | |
IP Rating | IP 40 per IEC 60529 | |
Vibration Requirements | MIL-PRF-28800F, Class 2 | |
Drop Test Requirements | -10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 for portable Hand-held equipment Shipping container drop per Fluke SOP 39. |
|
EMI, RFI, EMC | Must meet all applicable requirements in IEC/EN 61326-1 |
|
Absorption/Corrosion | Per Fluke SOP 39.1 | |
Temperature Coefficients | Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 ºC |
Includes: Fluke 101 Digital Multimeter
- Fluke 101 Digital Multimeter
Accessories: Fluke 101 Digital Multimeter
- N/A
