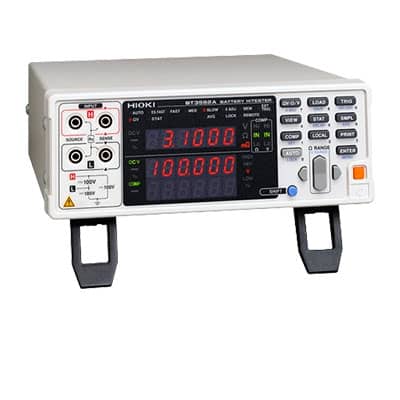

HIOKI BT3562A BATTERY HiTESTER:
The HIOKI BT3562A Battery HiTESTER is a battery testing device designed for evaluating the quality and performance of batteries in various applications, including electric vehicles, power tools, and consumer electronics. It helps measure important battery parameters like internal resistance, voltage, and insulation resistance, allowing users to determine if a battery is functioning properly or needs replacement. Fully Automated Production Line Testing of Large Cells for xEVs or Mid-sized Packs of up to 100 V.
Are you searching for an excellent, battery tester? Yes, you are in the right place at the right time. tools Bangladesh provides testing supplies and tools. So, you may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest shipping options.
Key Features:
- Simultaneous measurement of internal resistance and open circuit voltage.
- Fully automated production line testing of large cells for xEVs or mid-sized packs of up to 100 V.
- Measure from 0 Ω to 3.1 kΩ (minimum resolution 0.1 μΩ)
- Resistance measurement ranges: 3 mΩ/30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
- Measure from 0 V DC to ±100 V DC (minimum resolution 10 μV)
- Voltage measurement ranges: 6 V/60 V/100 V
- Equipped with LAN
Basic specifications:
Accuracy guaranteed: 1 year
| Resistance measurement ranges |
3 mΩ（Max. display: 3.1000 mΩ, resolution: 0.1 μΩ, measurement current: 100 mA）
30 mΩ（Max. display: 31.000 mΩ, resolution: 1 μΩ, measurement current: 100 mA）
300 mΩ（Max. display: 310.00 mΩ, resolution: 10 μΩ, measurement current: 10 mA）
3 Ω（Max. display: 3.1000 Ω, resolution: 100 μΩ, measurement current: 1 mA）
30 Ω（Max. display: 31.000 Ω, resolution: 1 mΩ, measurement current: 100 μA）
300 Ω（Max. display: 310.00 Ω, resolution: 10 mΩ, measurement current: 10 μA）
3 kΩ（Max. display: 3.1000 kΩ, resolution: 100 mΩ, measurement current: 10 μA）
Basic accuracy: ±0.5% rdg ±10 dgt（3 mΩ range）, ±0.5% rdg ±5 dgt（30 mΩ range or more）
Measurement frequency: 1 kHz ±0.2 Hz
Measurement method: AC four-terminal method |
| Voltage measurement ranges |
6 V（Max. display: 6.00000 V, resolution: 10 μV）
60 V（Max. display: 60.0000 V, resolution: 100 μV）
100 V（Max. display: 100.000 V, resolution: 1 mV）
Basic accuracy: ±0.01% rdg. ±3 dgt. |
| Response time |
10 ms |
| Sampling period |
Ω or V (60 Hz): 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW)
ΩV (60 Hz): 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW)
Ω or V (50 Hz): 4 ms (EX.FAST), 12 ms (FAST), 42 ms (MEDIUM), 157 ms (SLOW)
ΩV (50 Hz): 8 ms (EX.FAST), 24 ms (FAST), 84 ms (MEDIUM), 259 ms (SLOW) |
| Functions |
Contact check, Zero adjustment (±1000 counts), Pulse measurement, Comparator (Hi/ IN/ Lo), Statistical calculations (Max. 30,000), Delay, Average, Panel saving/loading, Memory storage, LabVIEW® driver |
| Interfaces |
LAN (TCP/IP, 10BASE-T/100BASE-TX)
RS-232C (Max. 38.4 kbps, Available as printer I/F)
EXT I/O (37-pin Handler interface)
Analog output (DC 0 V to 3.1 V) |
| Power supply |
100 to 240 V AC, 50 Hz/60 Hz, 35 VA max. |
| Dimensions and mass |
215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz) |
| Included accessories |
Instruction manual ×1, Power cord ×1, Operating Precautions ×1 |
