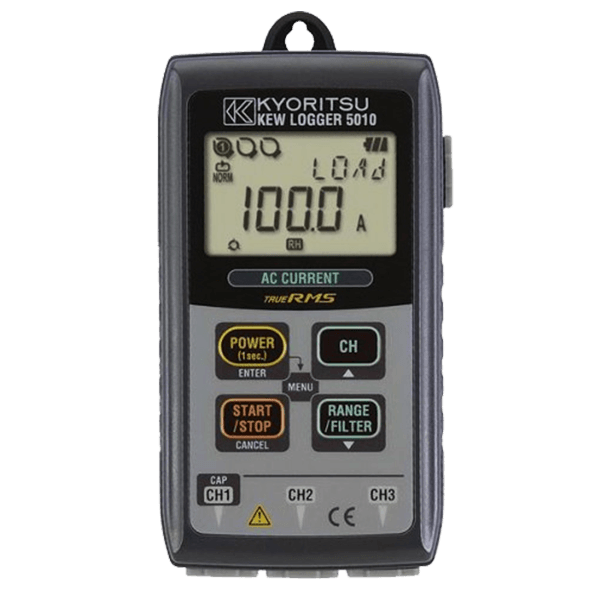

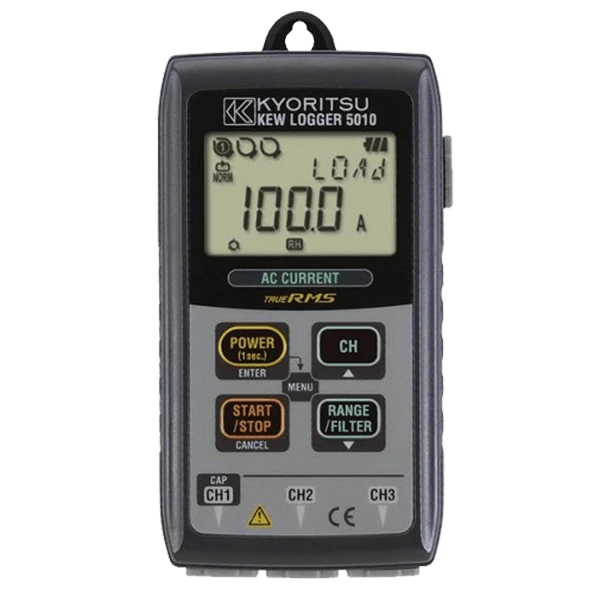

Kyoritsu KEW 5010 Loggers is rugged reliable and trusted that includes 3 channel inputs for the simultaneous recording of Leakage Current and Load Current and Large capacity for storing 60,000 data points.

Key Features: Kyoritsu KEW 5010 Loggers

• Large capacity for storing 60,000 data points
• Lowpass Filter will filter out the harmonics
• LED flickers when the preset current value is exceeded
• CALL:Confirmation of recorded data
• Selection of One-time mode or Endless mode
• Non Volatile Memory
• Battery power indicator
• The userfriendly PC software "KEW LOG Soft 2" is supplied
• Continuous measuring time:Approx. 10 days (Alkaline Battery)

Specifications: Kyoritsu KEW 5010 Loggers

Range	Accuracy
100.0mA	±3.0%rdg±1.7%f.s.+ Accuracy of Sensor
Other ranges	±2.5%rdg±1.5%f.s.+ Accuracy of Sensor

Recording mode	Normal, Trigger, Capture
Operating system	Successive Approximation (CH1 single synchronized sampling)
Rated max. working voltage	AC 9.9Vrms, 14V peak value
Number of input channel	3ch
Measuring method	True RMS
RMS measuring interval	approx. 100ms
Sampling interval	Normal/Trigger mode : approx. 1.65ms/CH Capture mode : approx. 0.55ms (waveform: at every 1.1ms)
Current range	8146 (30A type) : 100.0/1000mA/10.00/30.0A 8147 (70A type) : 100.0/1000mA/10.00/70.0A 8148 (100A type) : 100.0/1000mA/10.00/100.0A 8121 (100A type) : 10.00/100.0A 8122 (500A type) : 50.00/500.0A 8123 (1000A type) : 100.0/1000A 8128 (5A type) : 5.000A/(50.00A) 8127 (100A type) : 10.00A/100.0A 8126 (200A type) : 20.00A/200.0A 8125 (500A type) : 50.00A/500.0A 8124 (1000A type) : 100.0A/1000A 8129 (300A range) : 300.0A 8129 (1000A range) : 1000A 8129 (3000A range) : 3000A 8130 (1000A type) : 100.0/1000A
Low battery warning	Battery mark display (in 4 levels)
Over-range indication	"OL" mark is displayed when exceeding the measuring range
Auto power off	Power-off function operates automatically after a switch remains for 3min. (when recording is stopped)
Possible measurement time	Approx. 10 days (with alkaline LR6 batteries)
Applicable standards	IEC 61010-1:2001 CAT III 300V Pollution degree2 IEC 61326 (EMC standard)
Dimensions	111(L)×60(W)×42(D)mm
Weight	Approx. 265g
Included Accessories	Alkaline battery LR6×4pcs, 9118 (Carrying case) PC software "KEW LOG Soft 2", 7148 (USB cable) Instruction manual, Quick manual, Install manual, USB Notice sheet
Optional Accessories	8146/8147/8148 (Leakage & Load current Clamp Sensor), 8121/8122/8123 (Load current Clamp Sensor), 8128/8127(1)/8126(1)/8125(1)/8124 (Load current Clamp Sensor), 8129(1)/8130(*1) (Flexible Clamp Sensor), 8320 (AC Adapter), 9135 (Carrying bag), 9119 (Hard carry case), 7185 (Extension cable for sensor)
