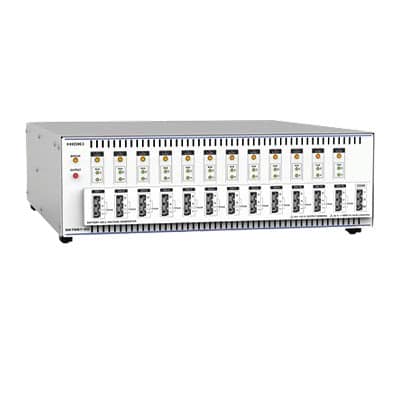

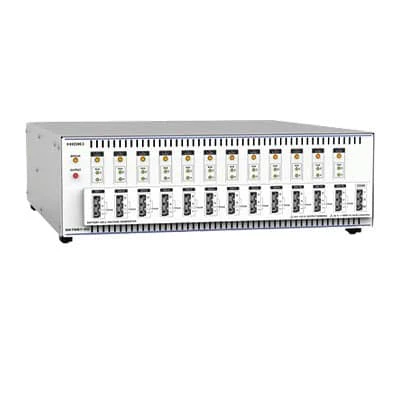

HIOKI SS7081-50 BATTERY CELL VOLTAGE GENERATOR:
The SS7081-50 is a 12-channel battery cell voltage generator that delivers power supply, electronic load, and DMM functionality in a single package. The system's simple architecture makes building an environment for validating BMS (*1) functionality safer, more affordable and more productive than ever before. Efficiently and Safely Validate Battery Management Systems.
Are you looking for an outstanding, battery tester? Yes, you are in the right place at the right time. tools Bangladesh provides testing supplies and tools. So, you may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest shipping options.
Key Features:
- Build a highly accurate BMS (*1) validation environment easily and safely
- Use as voltage generator or simulated battery in place of actual batteries and power supplies to establish an efficient testing environment
Basic specifications:
Accuracy guaranteed: 1 year
| Number of channels |
12 |
Maximum in-series
connections |
In-series connections of instrument up to and including a
maximum in-series output voltage of 1000 V |
| Output range |
DC voltage: 0.0000 V to 5.0250 V (set independently for all channels)
Maximum output current: ±1.00000 A (set independently for all channels) |
Measurement
range |
DC voltage: -0.00100 V to 5.10000 V
DC current (2-range architecture): ±1.20000 A (1 A range)
±120.0000 μA (100 μA range) |
| Integration time |
1 PLC (50 Hz: 20 ms; 60 Hz: 16.7 ms) × number of smoothing
iterations (user-configured) |
Voltage output
accuracy |
±0.0150% of setting ±500 μV |
Voltage measurement
accuracy |
±0.0100% of reading ±100 μV |
Current measurement
accuracy |
1 A range: ±0.0700% of reading ±100 μA
100 μA range: ±0.0350% of reading ±10 nA |
| Interfaces |
LAN |
| Power supply |
Universal (100 V to 240 V AC), 50 Hz / 60 Hz |
| Dimensions and mass |
430 (16.93 in)W × 132 (5.20 in)H × 483 (19.02 in)D, 10.3 kg (363.3 oz.) |
| Included accessories |
User manual × 1, power cord × 1, rack frame × 1, disk with computer application × 1 (Available within the range of application specifications) |
