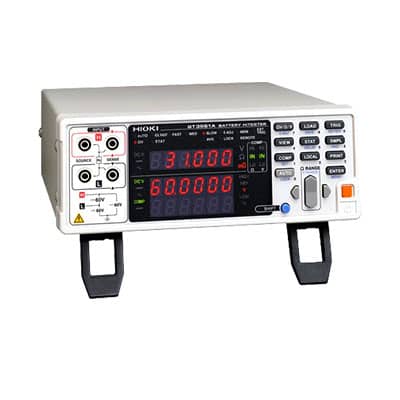

HIOKI BT3561A BATTERY HiTESTER:
Fully automated production line testing of small cells for power motors or small packs of up to 60 V. The HIOKI BT3561A Battery HiTESTER is a specialized testing device designed for assessing the performance and quality of batteries, specifically those used in electric vehicles, smartphones, and other electronics. It is used to measure various parameters such as internal resistance, battery voltage, and insulation resistance to determine a battery's condition and durability.
Are you searching for an excellent, battery tester? Yes, you are in the right place at the right time. tools Bangladesh provides testing supplies and tools. So, you may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest shipping options.
Key Features:
- Simultaneous measurement of internal resistance and open circuit voltage.
- Fully automated production line testing of small cells for power motors or small packs of up to 60 V.
- Measure from 0 Ω to 3.1 kΩ (minimum resolution 1 μΩ)
- Resistance measurement ranges: 30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
- Measure from 0 V DC to ±60 V DC (minimum resolution 10 μV)
- Voltage measurement ranges: 6 V/60 V
- Equipped with LAN
Basic specifications:
Accuracy guaranteed: 1 year
| Resistance measurement ranges |
30 mΩ（Max. display: 31.000 mΩ, resolution: 1 μΩ, measurement current: 100 mA）
300 mΩ（Max. display: 310.00 mΩ, resolution: 10 μΩ, measurement current: 10 mA）
3 Ω（Max. display: 3.1000 Ω, resolution: 100 μΩ, measurement current: 1 mA）
30 Ω（Max. display: 31.000 Ω, resolution: 1 mΩ, measurement current: 100 μA）
300 Ω（Max. display: 310.00 Ω, resolution: 10 mΩ, measurement current: 10 μA）
3 kΩ（Max. display: 3.1000 kΩ, resolution: 100 mΩ, measurement current: 10 μA）
Basic accuracy: ±0.5% rdg ±5 dgt（30 mΩ range or more）
Measurement frequency: 1 kHz ±0.2 Hz
Measurement method: AC four-terminal method |
| Voltage measurement ranges |
6 V（Max. display: 6.00000 V, resolution: 10 μV）
60 V（Max. display: 60.0000 V, resolution: 100 μV）
Basic accuracy: ±0.01% rdg. ±3 dgt. |
| Response time |
10 ms |
| Sampling period |
Ω or V (60 Hz): 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW)
ΩV (60 Hz): 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW)
Ω or V (50 Hz): 4 ms (EX.FAST), 12 ms (FAST), 42 ms (MEDIUM), 157 ms (SLOW)
ΩV (50 Hz): 8 ms (EX.FAST), 24 ms (FAST), 84 ms (MEDIUM), 259 ms (SLOW) |
| Functions |
Contact check, Zero adjustment (±1000 counts), Pulse measurement, Comparator (Hi/ IN/ Lo), Statistical calculations (Max. 30,000), Delay, Average, Panel saving/loading, Memory storage, LabVIEW® driver |
| Interfaces |
LAN (TCP/IP, 10BASE-T/100BASE-TX)
RS-232C (Max. 38.4 kbps, Available as printer I/F)
EXT I/O (37-pin Handler interface)
Analog output (DC 0 V to 3.1 V) |
| Power supply |
100 to 240 V AC, 50 Hz/60 Hz, 35 VA max. |
| Dimensions and mass |
215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz) |
| Included accessories |
Instruction manual ×1, Power cord ×1, Operating Precautions ×1 |
