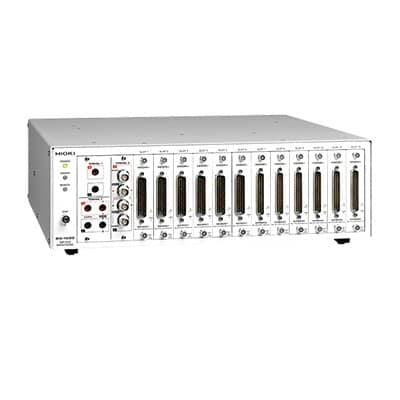

HIOKI SW1002 SWITCH MAINFRAME :
The SW1002 is a switch mainframe for housing the SW9001 or SW9002 Multiplexer Module to deliver quick, multi-channel battery testing. Connect up to 2 battery testing instruments to test OCV measurement, internal resistance measurement, and external potential measurement of battery cells. The SW1002 is packed with Features to Assure Accuracy in Multi-channel Battery Testing.
Are you looking for an outstanding, battery tester? Yes, you are in the right place at the right time. tools Bangladesh provides testing supplies and tools. So, you may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest shipping options.
Key Features:
- Switch between voltmeter and battery tester while testing
- SW1002: max. 264 channels (2-wire) to max. 72 channels (4-terminal pair)
- Circuit-design-friendly for impedance measurements that minimize errors between channels (Effect: 0.01% f.s. [*1])
- For OCV measurement, internal resistance measurement, and external potential measurement of battery cells
- Measure battery modules up to 60 V DC
Basic specifications:
| Slots |
12 slots |
| Supported modules |
MULTIPLEXER MODULE SW9001 (2-wire/4-wire)
MULTIPLEXER MODULE SW9002 (4-terminal pair) |
| Connectible instruments |
Max. 2 units
2-wire × 1 + 4-wire × 1, or 2-wire × 1 + 4-terminal pair × 1 |
| Max. input voltage |
60 V DC (Cannot connect to battery packs in excess of 60 V DC), 30 V AC rms, 42.4 V peak, Maximum rated voltage to ground: 60 V DC |
| Communication I/F |
LAN, USB, RS-232C (for host, for measurement instruments) |
| Functions |
Channel switching, wiring method, scan function, communication command transmission, channel delay, shield switching |
| Power supply |
100 to 240 V AC / 30 VA (50/60 Hz) |
| Dimensions and mass |
430 mm (16.93 in) W × 132 mm (5.20 in) H × 420 mm (16.54 in) D, 6.0 kg (211.6 oz) |
| Included accessories |
Power cord ×1, instruction manual ×1, usage precautions ×1, USB driver CD ×1 |
