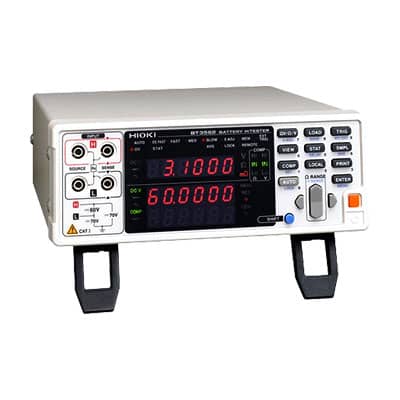

Name: HIOKI BT3562 BATTERY HiTESTER
Brand: Hioki
Availability: InStock

Shop	:
Product ID	:	2419
Brand	:	Hioki
Availability	:	In Stock
Price BDT	:	0.00 Taka
Reviews	:
Share	:

Add To Cart

Customer Support
+8801965656380
Cash One Delivery
Pay after getting the product on hand
Warranty
1 Year warranty by manufacturer
Secured Payment Method
Your cart is always secure to shop
Easy Return Policy
7 days return without physical defect.

HIOKI BT3562 BATTERY HiTESTER:

Hioki benchtop battery testers support simultaneous high-speed measurement of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low-resistance batteries, and other battery packs for high-voltage applications. The BT3562 can measure the voltage and resistance of coin-size to large-cell batteries up to 60V almost simultaneously due to their quick response time. 3 mΩ to 3000 Ω/60V DC Battery Testers for Production Line Testing of Battery Packs and Modules.

Are you looking for an excellent, battery tester? Yes, you are in the right place at the right time. tools Bangladesh provides testing supplies and tools. So, you may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest shipping options.

Key Features:

Measure the voltage of battery packs up to 60 V
Measure from 0 V DC to ±60 V DC (minimum resolution 10 μV)
Measure from 0 Ω to 3.1 kΩ (minimum resolution 0.1 μΩ)
Large (low-resistance) cell testing
Production line testing of high-voltage battery packs and battery modules
Choice of PC interfaces for full remote operation

Basic specifications:

Accuracy guaranteed: 1 year

Max. applied measurement voltage	± 60 V DC-rated input voltage ± 70 V DC Max. rated voltage to earth
Resistance measurement ranges	3 mΩ (Max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3000 Ω (Max. display 3100.0 Ω, resolution 100 mΩ), 7 ranges Accuracy: 30 mΩ to 3000 Ω ranges, ± 0.5% rdg. ± 5 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM) 3 mΩ range, ± 0.5% rdg. ± 10 dgt. (Add ± 30 dgt. for EX.FAST, or ± 10 dgt. for FAST, or ± 5 dgt. for MEDIUM) Testing source frequency: 1 kHz ± 0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3000 Ω range) Open-circuit Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3000 Ω ranges)
Voltage measurement ranges	6 VDC (resolution 10 μV) to 60 VDC (resolution 100 μV), 2 ranges
	Accuracy: ± 0.01% rdg. ± 3 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM)
Display	31000 full digits (resistance), 600000 full digits (voltage), LED
Sampling rate	Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow) (Typ., sampling time depends on supply frequency settings and function.)
Measurement time	Response time + sampling rate, approx. 10 ms for measurements (Response time depends on reference values and the measurement object.)
Comparator functions	Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.)
Analog output	Measured resistance (displayed value, from 0 to 3.1 V DC, -01 suffix models only)
Interfaces	External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only)
Power supply	100 to 240 VAC, 50/60 Hz, 30 VA max.
Dimensions and mass	215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz)
Included accessories	Instruction manual ×1, Power cord ×1
