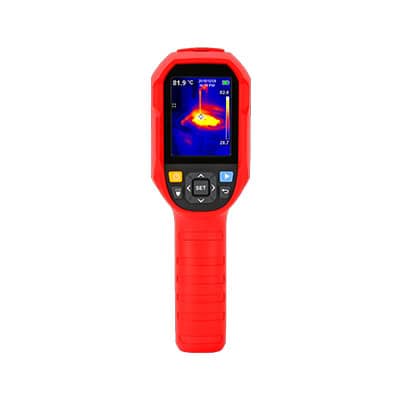

UTi165A+ Heavy Duty Thermal Camera:
UTi165A+ Heavy Duty Thermal Camera is a great tool for experts. UTi165A+ is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance, with 160×120 pixels IR resolution which can automatically track the objective’s temperature from -10℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications.
Are you trying to find a good, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Key Features :
- Durable and user-friendly
- 8” TFT display screen (320×240 Pixels)
- IR resolution: 160×120
- Digital camera resolution：640×480
- Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 5(White hot, Red hot, Ice blue, Rainbow, Ironbow)
- LED flashlight
- PC software analysis
- Rechargeable Li-ion battery
- 1/4” tripod mounting hole
- IP65
- 2m drop-proof
Specifications:
| Technical Data |
| IR resolution (Pixels) |
160×120 |
| Display |
2.8” TFT LCD (320×240) |
| Field of view(FOV) |
56°×42° |
| Thermal sensitivity(NETD) |
≤50mk |
| Spatial resolution(IFOV) |
6.1mrad |
| Frame rate |
≤9Hz |
| Spectral range |
8~14µm |
| Focus |
Focus free |
| Temperature measurement range |
-10℃~400℃ |
| Accuracy |
±2℃ or ±2% whichever is greater |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Colour palettes |
7
(White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC) |
| Image modes |
Thermal, Visual image, Fusion |
| On-screen analyzer |
3 Points |
| Digital camera resolution |
640×480 |
| Hi/Lo temperature alarm |
Icon, LED flashlight |
| PC software analysis |
√ |
| General Characteristics |
| Battery |
Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time |
≥ 7 hours |
| USB |
Type-C |
| IP rating |
IP65 |
| Drop-proof |
2m |
| Storage |
Up to 32GB Micro SD card |
| Image/Video storage format |
BMP |
| Certificates |
CE, FCC, RoHS |
| Product net weight |
490g |
| Product size |
236mm×75.5mm×86mm |
| Packing Details |
| Standard accessories |
Micro SD card, Type-C USB cable, Adapter, English manual, Documents download operation guide card |
| Standard individual packing |
Gift box |
| Standard Qty per carton |
10 |
| Standard carton size |
500mm×315mm×295mm |
| Standard carton G.W. |
10.1kg |
