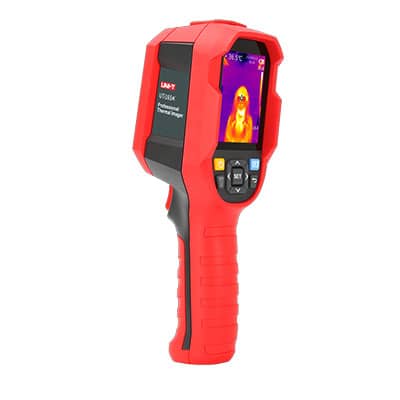

UTi165K (Discontinued) EST Thermal Camera:
UTi165K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can also be mounted on a tripod and set in public locations, such as schools, shopping malls, airports and other high-traffic areas. The thermal camera has PC software (which supports data review, analysis and report sharing), it also supports real-time projection to display the image and data on a large monitor and automatically tracks and alarms for high temperatures.
Are you trying to find a good, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Specifications:
| Technical Data |
| IR resolution (Pixels) |
160×120 |
| Display |
2.8”TFT LCD (320×240) |
| Field of view(FOV) |
56°×42° |
| Thermal sensitivity(NETD) |
≤50mk |
| Spatial resolution(IFOV) |
6.1mrad |
| Frame rate |
≤9Hz |
| Spectral range |
8~14µm |
| Focus |
Focus Free |
| Temperature measurement range |
30℃~45℃ (86℉-113℉) |
| Accuracy |
±0.5° (@25˚C ambient temperature) |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Color palettes |
7
(Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC) |
| Image modes |
Thermal,Visual Image,Fusion |
| On screen analyzer |
3 Points |
| Digital camera resolution |
640×480 |
| Hi/Lo temperature alarm |
Icon,LED flashlight |
| Software analysis |
PC |
| General Characteristics |
| Battery |
Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time |
≥ 6 hours |
| USB |
Type-C |
| Storage |
32G Micro SD card |
| Image/Video storage format |
BMP |
| Certificates |
CE,FCC,RoHS |
| Product net weight |
910g |
| Product size |
236mm×75.5mm×86mm |
| Packing Details |
| Standard accessories |
Type-C USB cable, Micro SD card, English manual |
| Standard individual packing |
Gift box |
| Standard Qty per carton |
10pcs |
| Standard carton size |
500mm×315mm×295mm |
| Standard carton G.W. |
2.2kg |
