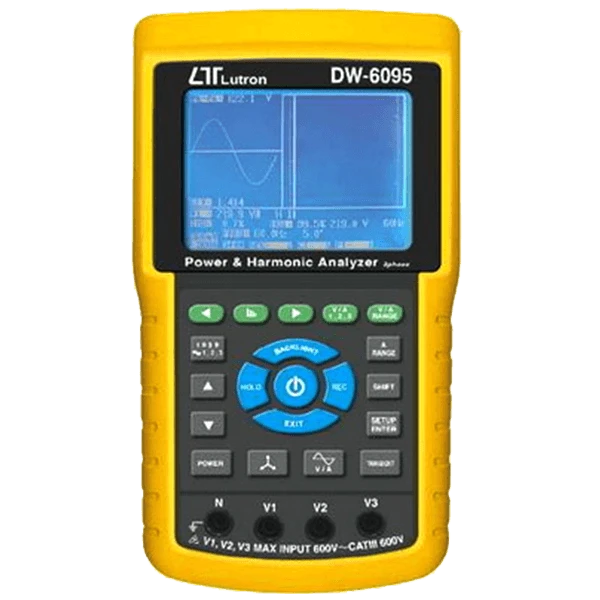

Key Features: Lutron DW 6095 3 phase power analyzer

• Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W.
• 3 current probes (CP-1201) are included, if change the current probes, the calibration procedures are not necessary.
• Current probe input signal/ranges with selection :
• Input signal (ACV) : 200 mV/300 mV/500 mV/1 V/2 V/3 V.
• Ranges (ACA) : 20 A/200 A/2000 A/30 A/300 A/ 3000 A.
• Meter can cooperate the universal current probes.
• Complete set with 4 PCs Test Leads, 4 PCs Alligator clips, 3 PCs Clamp Probe (CP 1201), AC to DC 9V adapter, 2GB SD memory card and Carrying bag.
• Measurement :
• V (phase-to-phase), V (phase-to-ground)
• A (phase-to-ground)
• KW / KVA / KVAR / PF (phase)
• KW / KVA / KVAR / PF (system)
• KWH / KVAH / KVARH / PFH (system)
• Phase angle
• Harmonics display (1-50th order).
• Simultaneous display of Harmonics and Wave form.
• Display of Waveform with Peak Values.
• Analysis of Total Harmonic Distortion (THD).
• Graphic Phase diagram with 3-Phase system parameters.
• 3 phase Voltage or Current Unbalanced Ratio (VUR, AUR) and Unbalanced Factor.
• Calculated Unbalanced Current through Neutral Line (An)
• Capture Transient events (including Dip, Swell and Outage) with programmable threshold (%).
• Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).
• ACV input impedance is 10 Mega ohms.
• Safety Standard : IEC 1010, CAT III 600V.
• Built-in clock and Calendar, real time data record with SD memory card , sampling time set from 2 to 7200 seconds. Just slot in the SD card into the computer, it can down load the all the measured value with the time information (year, month, data, hour, minute, second) to the Excel directly, then user can make the further data analysis by themselves.
• Powered by AA (UM-3) DC 1.5 V X 8 batteries (Alkaline type) or DC 9V adapter.
• Computer data

Specifications: Lutron DW 6095 3 phase power analyzer

• Circuit (Circuit)
• Custom one-chip of microprocessor LSI circuit
• Display (Display)
• *LCD Size: 81.4 X 61 mm (3.2 X 2.4 inch)* Dot Matrix LCD (320 X 240 pixels) with back light.
• Measurement (Measurement)
• V (phase-to-phase)* V (phase-to-ground)* A (phase-to-ground)* KW / KVA / KVAR / PF (phase)KW / KVA / KVAR / PF (system)KWH / KVAH / KVARH / PFH (system)* Power factor* Phase angle* Frequency* Harmonics display.
• Line connection (Wire connections)
• 1P/2W, 1P/3W, 3P/3W, 3P/4W.
• Voltage range (Voltage ranges)
• 10 ACV to 600 ACV, auto range.
• Current measuring stick of the input signal and range (Current probe input signal and range)
• Current probe input signal volage (ACV): 200mV/300mV/500mV/1V/2V/3V.* Current probe input current range (ACA): 20 A/200A/2000A (1200 A) / 30A/300A/3000A* Meter can cooperate the universal current probe.
• Safety Standards (Safety standard)
• IEC1010 CAT III 600 V.
• AC input impedance (ACV input impedance)
• 10 Mega ohms.
• Range Select (Range select)
• ACV:Auto range.ACA:manual range.
• Clamp Frequency response (Clamp frequency response)
• 40 Hz to 1 KHz.
• Measured frequency specification (Spec. tested frequency)
• 45 to 65 Hz.
• Overload protection (Over load protection)
• ACV:720 ACV rmsACA:1300 ACA with clamp probe CP-1200
• Data Lock (Data Hold)
• Freeze the display reading.
• Data Record (Data Record)
• SD Card Record.
• Sampling time (Sampling Time)
• 1 Sec.
• Power switch (Power ON / OFF)
• Manual OFF by push button.
• Overload display (Over Indicator)
• LCD display show "OL".* The data save into the SD card will show "9999" or "999" (overleap the decimal point).
• Too low to display (Under Indicator)
• LCD display show "UR".* The data save into the SD card will show "9999" or "999" (overleap the decimal point).
• Real-time data logger (Real time data logger)
• Real time data logger, saved the data into SD memory card and down load the all the measured value with the time information (year / month / data / hour / mimute / second) down load to the Excel* Integration time for data logger: 2 seconds to 7200 seconds, the during of setting step are 2 seconds.
• USB/RS232Data Output (Data Output USB/RS232 * Computer interface)
• RS232 computer serial interface:* Connect the optional USB cable USB-01 will get the USB plug.* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
• Operating Temperature (Operating Temp.)
• 0 to 50 (32 to 122 ).
• Operating Humidity (Operating Humidity)
• Less than 80% R.H.
• Power Supply (Power Supply)
• DC 1.5V, AA (UM-3) Battery X 8 PCs (Alkaline or heavy duty battery)(not included).* AC to DC 9V power adapter.
• Power consumption (Power Consumption)
• Meter:500 DCmA.* Clamp: 34 DCmA.
• Clamp Connector maximum size (Clamp max. Conductor Size)
• 50 mm (2.0 inch) Dia. For the Clamp, CP-1201
• Weight (Weight)
• Meter: 948g (includes batteries)* Clamp:(Includded cable): 467g
• Dimension (Dimension)
• Meter:225 X 125 X 64 mm (8.86 X 4.92 X 2.52 inch)Clamp:210 X 64 X 33mm (8.3 X 2.5 X 1.3 inch)Clamp Jaw:86 mm (3.4 inch) - outside
• Attachment (Standard Accessories)
• Instruction manual ....................... 1 PC* Test Leads (TL88-4AT) ................. 1 Set (4 PCs)* Alligator clips (TL88-4AC) .............. 1 Set (4 PCs)* Clamp Probe (CP-1201) .............. 3 PCs* AC to DC 9V adapter ..................... 1 PC* SD card (2 G) ............................ 1 PC* Carrying bag ................................ 1 PC
• Optional accessories (Optional Accessories)
• 2000 Amp current probe, CP-2000* 200 Amp current probe, CP-200* Flexible 3000 Amp current probe, CP-3000* USB Cable, USB-01* RS232 cable, UPCB-02* Data Acquisition software, SW-U811-WIN
•

• N/A

Accessories: Lutron DW 6095 3 phase power analyzer

• Instruction manual…………… 1 PC
• Test Leads (TL88-4AT)………. 1 Set (4 PCs)
• Alligator clips (TL88-4AC) 1 Set (4 PCs)
• Clamp Probe ( CP-1201 )……. 3 PCs
• AC to DC 9V adapter…………..1 PC
• SD card ( 2 G )……………….. 1 PC
• Carrying bag……………………. 1 PC
