Fluke 43B Single Phase Power Quality Analyzer
Iconic Engineering Limited
Fluke 43B Single Phase Power Quality Analyzer maintains power systems that are rugged and reliable and order at Tools Bangladesh to get quick delivery anywhere in Bangladesh...
In stock

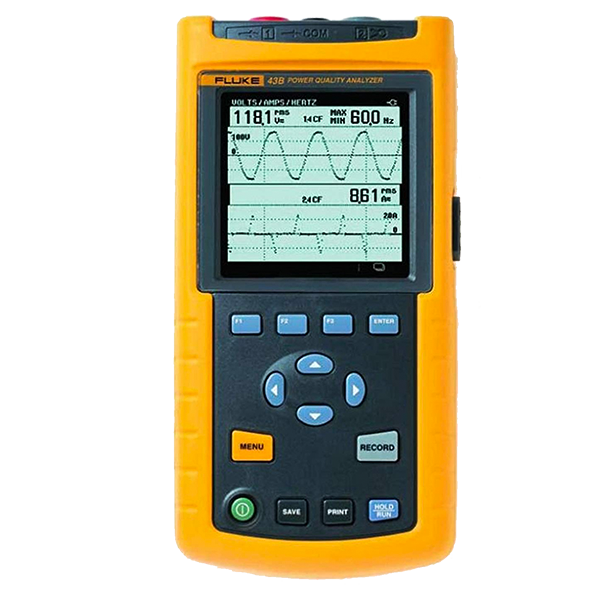

Model: Fluke 43B Single Phase Power Quality Analyzer
Performs the measurements you need to maintain power systems, troubleshoot power problems and diagnose equipment failures. All in a rugged handheld package. The Fluke 43B Power Quality Analyzer performs the measurements you need to maintain power systems, troubleshoot power problems and diagnose equipment failures.
This versatile tool combines the most useful capabilities of a power quality analyzer, multimeter, and scope—all in a rugged handheld package.
Use the Fluke 43B to measure resistance, diode voltage drop, continuity, and capacitance or to trend voltage, current, frequency, power harmonics and captures voltage sags, transients, and inrush current. You can also calculate 3-phase power on balanced loads, from a single-phase measurement.
Tools Bangladesh is most of the electrical website to discover client satisfaction and Iconic Engineering going on this site to expose the reliable product and ready to deliver all over in Bangladesh.
Key Features: Fluke 43B Single Phase Power Quality Analyzer
- NiMH Battery provides an extended operating time of 6.5 hours
- Combines the most useful capabilities of a power quality analyzer, multimeter and scope
- Calculates 3-phase power on balanced loads, from a single-phase measurement
- Trends voltage, current, frequency, power harmonics and captures voltage sags, transients and inrush current
- Monitoring functions help track intermittent problems and power system performance
- Records two selectable parameters for up to 16 days
- 20 measurement memories to save/recall screens and data with cursor readings
- FlukeView® software can log harmonics and all other readings over time and provides a complete harmonics profile up to the 51st harmonic
- Measures resistance, diode voltage drop, continuity, and capacitance
- Users/applications manual and power quality video to help answer tough questions
- Complete package with voltage probes and 400 A current clamp, FlukeView Software and optically isolated interface cable
- 3 year warranty on the Fluke 43B, 1 year on accessories
Specifications: Fluke 43B Single Phase Power Quality Analyzer
| Specifications | |||
| Input characteristics | Input impedance | 1 MΩ, 20 pF | |
| Voltage rating | 600 V rms, CAT III | ||
| V/A/Hz display | True-rms voltage (AC + DC) |
Ranges | 5.000 V, 50.00 V, 500.0 V, 1250 V1 |
| Accuracy | ±(1% + 10 counts) | ||
| True-rms current (AC + DC) |
Ranges | 50.00 A, 500.0 A, 5.000 kA, 50.00 kA, 1250 kA | |
| Accuracy | ±(1% + 10 counts) | ||
| Frequency | Ranges | 10.0 to 15.0 kHz | |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | ||
| CF crest factor | Ranges | 1.0 – 10.0 | |
| Accuracy | ±(5% + 1 count) | ||
| Power display | Watts, VA, VAR | 1-phase and 3-phase,3 conductor balanced loads | |
| Ranges | 250 W – 1.56 GW | ||
| Accuracy | ±(4% + 4 counts) Fundamental Power | ||
| Accuracy | ± (2% + 6 counts) Total Power | ||
| PF power factor | Range | 0 – 1.0 | |
| Accuracy | ±0.04 | ||
| DPF displacement power factor, Cos .F | Range | 0.25 – 0.9 | |
| Accuracy | ±0.04 | ||
| Range | 0.90 – 1.0 | ||
| Accuracy | ±0.03 | ||
| H2 frequency fundamental | Ranges | 40.0 to 70.0 Hz | |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | ||
| Harmonics display | Voltage, current, frequency | Ranges | Fundamental to 51st harmonic |
| Accuracy | VA ±(3% + 2 counts) W ±(5% + 2 counts) | ||
| Fundamental | 2 to 31st harmonic | VA ±(5% +3 counts) W ±(10% +10 counts) | |
| 32 to 51st harmonic | VA ±(15% +5 counts) W ±(30% +5 counts) | ||
| Frequency fundamental | Ranges | 40 Hz to 70 Hz | |
| Accuracy | ±0.25 Hz | ||
| Phase | Range | V, A (Between fundamental and harmonics) | |
| Accuracy | ±3° to ±15° | ||
| Range | W (Between voltage fundamental and current harmonics) | ||
| Accuracy | ±5° to ±15° | ||
| K-factor (Current and Power) |
Range | 1.0 to 30.0 | |
| Accuracy | ±10% | ||
| THD total harmonic distortion | Range | 0.00 – 99.99 | |
| Accuracy | ±(3% + 8 counts) | ||
| Sags and swells | Recording times | 4 min to 16 days (selectable) | |
| Vrms actual, vrms max, min (AC + DC) | Ranges | 5.000 V, 50.00 V, 500.0 V, 1250 V1 | |
| Accuracy | Readings ±(2% +10 counts); Cursor readings ± (2% + 12 counts) | ||
| Arms actual, arms max, min (AC + DC) | Ranges | 50.00 A, 500.0 A, 5.000 kA, 50.00 kA | |
| Accuracy | ±(2% +10 counts) | ||
| Transient capture | Minimum pulse width | 40 ns | |
| Useful bandwidth input 1 | DC to 1 MHz | ||
| Number of transients | 40 | ||
| Voltage threshold settings | 20%, 50%, 100%, 200% above or below reference | ||
| Reference signal | After START, the Vrms and frequency of the signal are measured. From these data a pure sinewave is calculated as reference for threshold setting. | ||
| Vpeak min, vpeak max at cursor | 10 V, 25 V, 50 V, 125 V, 250 V, 500 V, 1250 V Accuracy: ±5% of full scale | ||
| R, C, diode, continuity | Resistance ranges | 500.0 Ω, 5.000 kΩ, 50.00 kΩ, 500.0 kΩ, 5.000 MΩ, 30.00 MΩ | |
| Resistance accuracy | ±(0.6% + 5 counts) | ||
| Capacitance ranges | 50.00 nF, 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF | ||
| Capacitance accuracy | ±(2% + 10 counts) | ||
| Diode Ranges | 0 to 3.000 V | ||
| Diode voltage | |||
| Accuracy | ±(2% + 5 counts) | ||
| Continuity | Beeper on at < 30 Ω ± 5 Ω | ||
| Max current | 0.5 mA | ||
| Temperature | °C or °F | ||
| Inrush current | Inrush times | 1 s, 5 s, 10 s, 50 s, 100 s, 5 min | |
| Current ranges | 1 A, 5 A, 10 A, 50 A, 100 A, 500 A, 1000 A | ||
| Cursor readings | A peak max at cursor 1 and cursor 2 | ||
| Accuracy | ±5% of full scale | ||
| Time between cursors | 4 to 235 pixels (1 pixel = inrush time/250) Accuracy: ±(0.2% + 2 pixels) | ||
| Temperature (with accessory) |
Range | -100 °C – 400 °C | |
| Accuracy | ±(0.5% + 5 counts) | ||
| Scope display | Measurements | DC, AC, AC + DC, peak, peak-peak, frequency, duty cycle, phase, pulse width, crest factor | |
| Time ranges | 20 ns/div to 60 s/div | ||
| Max sampling rate | 25 MS/s | ||
| Bandwidth | Voltage channel [1] | 20 MHz at inputs, 1 MHz with TL24 leads | |
| Current channel [2] | DC to 15 kHz at inputs, 10 kHz with i400s current clamp | ||
| Coupling | AC, DC (10 Hz – 3 dB) | ||
| Vertical sensitivity | 5 mV/div to 500V/div | ||
| Vertical resolution | 8 bit (256 levels) | ||
| Record length | 512 samples per channel | ||
| Base ranges | 60 S/div to 20 nS/div ± (0.4% + 1 pixel) | ||
| Timebase modes | Normal, roll, single | ||
| Pre-trigger | Up to 10 divisions | ||
| Trigger Source | Input 1 or input 2 or automatic selection | ||
| Trigger Mode | Automatic Connect-and-View™, free Run, and single Shot | ||
| Connect-and-view™ | Advanced automatic triggering that recognizes signal patterns | ||
| Automatically adjusts triggering, timebase and amplitude and displays stable pictures | |||
| Memories | 20 (screens, settings, data) | ||
| Recording | Recording times | 4 min to 16 days (selectable) | |
| Parameters | Choose one or two parameters from one of the groups below | ||
| Volts/Ampères/Hertz | |||
| Power | Watts, VA, VAR, PF, DPF, frequency | ||
| Harmonics, THD, volts (Fund. and harmonic), ampères (F&H) watts(F&H) | |||
| Frequency (H), %(H) of total, Phase(H), KF | |||
| Temperature | |||
| Resistance | Resistance, diode, continuity, capacitance | ||
| Scope | DC voltage, DC current, AC voltage, AC current, frequency, | ||
| Pulse width + or -, phase, duty cycle + or -, peak max, peak min, peak min-max, crest factor | |||
| Environmental specifications | Operating temperature | 0°C to +50°C | |
| Safety specifications | Electrical safety | EN 61010-1 CAT III, 600V. CSA listed | |
| Mechanical and general specifications | Size | 232 x 115 x 50 mm | |
| Weight | 1.1 kg | ||
| Battery life | Rechargeable NiMH pack (charger included), 6.5 hrs extended operating time (continuous) | ||
| Shock and vibration | Mil 28800E, Type 3, Class III, Style B | ||
| Case | IP51 (dust, drip, waterproof) | ||
Includes: Fluke 43B Single Phase Power Quality Analyzer
- C120 Hard Case
- TP1 Flat-tipped Slim-Reach™ Test Probes
- TP4 4 mm Round Slim-Reach™ Test Probes
- i400s AC Current Clamp
- OC4USB Optically Isolated USB Interface Adapter
- BP120MH Rechargeable NiMH Battery Pack (installed)
- PM 8907 Line Voltage Adapter/Battery Charger
- SW43W FlukeView™ Power Quality Analyzer Software and Users Manual on CD-ROM
- Shielded Banana-to-BNC Adapter
- Users Manual / Application Guide
Accessories: Fluke 43B Single Phase Power Quality Analyzer
Batteries, Chargers & Adapters (2)
- Fluke BP120MH Fluke BP120MH NiMH Battery Pack for Fluke 120 series, Fluke 43 and 43B
- Fluke PM8907 Fluke PM8907 Line Voltage Adapter/Battery Charger
Cables & Hardware (1)
- Fluke OC4USB Fluke OC4USB USB Interface Cable
Cases & Holsters (4)
- Fluke C120 Fluke C120 Hard Carrying Case
- Fluke C125 Fluke C125 Meter Case
- Fluke C43 Fluke C43 Soft Carrying Case
- Fluke C550 Fluke C550 Tool Bag
Clips (3)
- Fluke AC220 Fluke AC220 SureGripTM Alligator Clips
- Fluke AC285 Fluke AC285 SureGripTM Alligator Clips
- Fluke TLK225 Fluke TLK-225 SureGripTM Master Accessory Set
Current Clamps (3)
- Fluke 80i 110s Fluke 80i-110s AC/DC Current Clamp
- Fluke i1000s Fluke i1000s AC Current Probe
- Fluke i200s Fluke i200s AC Current Clamp
Options (1)
- Fluke BB120 Fluke BB120 Shielded Banana to Female BNC Adapter
Temperature Accessories (2)
- Fluke 80T 150UA Fluke 80T-150UA Universal Temperature Probe
- Fluke 80TK Fluke 80TK Thermocouple Module
Test Leads (7)
- Fluke TL220 Fluke TL220 SureGripTM Industrial Test Lead Set
- Fluke TL221 Fluke TL221 SureGripTM Test Lead Extension Set
- Fluke TL223 Fluke TL223 SureGripTM Electrical Test Lead Set
- Fluke TL224 Fluke TL224 SureGripTM Insulated Test Leads
- Fluke TL238 Fluke TL238 SureGripTM Test Lead Set for High Energy Environments
- Fluke TL27 Fluke TL27 Heavy Duty Test Lead Set
- Fluke TL71 Fluke TL71 Premium Test Lead Set
