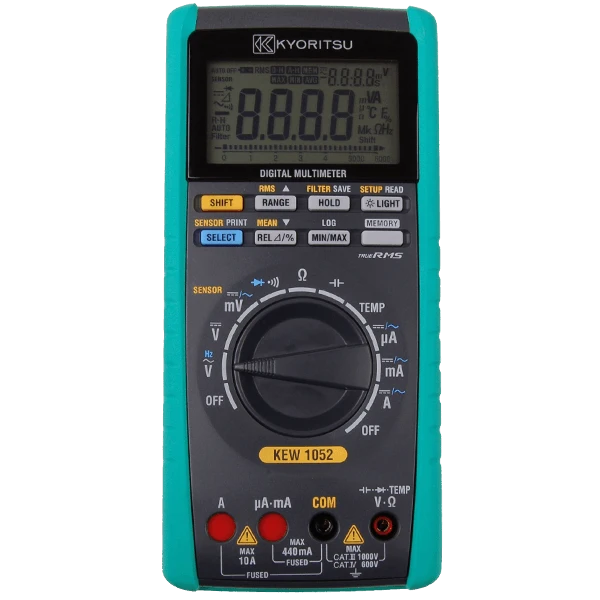

Kyoritsu KEW 1052 Digital Multimeter in the Distrelec Online Shop We love electronics.
Find many great new & used options and get the best deals for O28 Kyoritsu Kew 1052 Digital Multimeter at the best online prices online with Free shipping in Bangladesh.
Key Features: Kyoritsu KEW 1052 Digital Multimeters
• 0.09% basic DC accuracy
• Large display with 6,000 counts
• True-RMS Measurements
• True-RMS or MEAN value detection mode can be selected
• Low-pass filter for motor drive measurements
• User calibration function
• Complies with IEC 61010-1 CAT IV 600V, CAT III 1000V
• Terminal shutter to prevent incorrect test leads' insertion in current terminals
• Very wide operating temperature range from -10 to 55ºC
• Large data internal memory 1,600 data (logging), 100 data (manual)
• Download data and Live Monitoring on a PC via the USB interface
(Option for USB Communication set)
*MAX 32,767 data can be transferred.
Specifications: Kyoritsu KEW 1052 Digital Multimeters
| Detection mode |
MEAN/RMS (switch) |
| DC V |
600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V])
±0.09%rdg±2dgt (Basic accuracy) |
| AC V [RMS] |
600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V],
10MΩ<50pF [60/600/1000V])
±0.5%rdg±5dgt (Basic accuracy) |
| AC V [MEAN] |
600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V],
10MΩ<50pF [60/600/1000V])
±0.5%rdg±5dgt (Basic accuracy) |
| DC A |
600.0/6000µA/60.00/440.0mA/6.000/10.00A
±0.2%rdg±2dgt (Basic accuracy) |
| AC A [RMS] |
600.0/6000µA/60.00/440.0mA/6.000/10.00A
±0.75%rdg±5dgt (Basic accuracy) |
| Ω |
600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ
±0.4%rdg±1dgt (Basic accuracy) |
| Continuity buzzer |
600.0Ω (The buzzer turns on for resistances lower than 50±30Ω) |
| Diode test |
2.000V ±1%rdg±2dgt
Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current) |
| Capacitance |
10.00/100.0nF/1.000/10.00/100.0/1000µF
±2%rdg±5dgt (Basic accuracy) |
| Frequency |
10.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz
±0.02%rdg±1dgt (Basic accuracy) |
| Temperature |
-50 - 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe) |
| Other functions |
Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H),
Maximum value (MAX) *, Minimum value (MIN) *, Average value (AVG) *, Zero Adjustment (Capacitor, Resistance), Save to Memory *,
LCD backlight |
| Applicable standards |
IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2,
IEC 61010-031, IEC 61326-1 (EMC) |
| Power source |
R6 (1.5V)×4 (Auto power off: approx. 20 minutes) |
| Dimensions |
192(L)×90(W)×49(D) mm |
| Weight |
Approx. 560g (including batteries) |
| Included Accessories |
7220A (Test leads), R6×4, Instruction manual,
8926 (Fuse [440mA/1000V])×1 (included)
8927 (Fuse [10A/1000V])×1 (included) |
