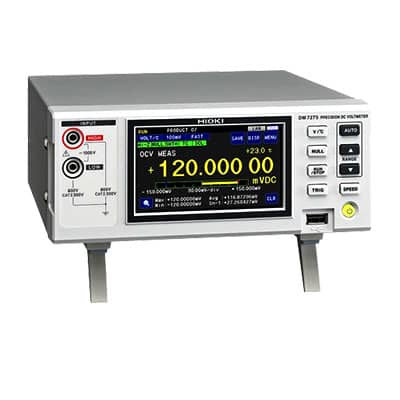

HIOKI DM7275 PRECISION DC VOLTMETER:
The DM7275 Precision DC Voltmeter delivers superior measurement accuracy of 20 ppm (0.002%), an accuracy level that is demanded by advanced applications such as ageing tests of lithium-ion batteries. Other key features include contact checks to maximize measurement reliability, binning and temperature compensation, making the voltmeter ideal for developing and manufacturing Li-ion batteries, electrical double-layer capacitors, electric vehicle components, and other next-generation devices.
Are you looking for a great, battery tester? Yes, you are in the right place at the right time. tools Bangladesh provides testing supplies and tools. So, you may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest delivery options.
Key Features:
- Basic model with 1-year 20ppm Accuracy: DM7275
- Capacitance contact check (using built-in C-monitor)
- Supports global production with built-in variable power supply
- Built-in EXT I/O, LAN, and USB
Basic specifications:
Accuracy guaranteed: 1 year
| DC Voltage | 100 mV ( ±120.000 00 mV) to 1000 V ( ±1000.000 0 V ), 5 ranges | |||||
|---|---|---|---|---|---|---|
| Basic accuracy | 10 V range: ±0.0020% rdg. ±12 μV | |||||
| Temperature | -10.0°C to 60.0°C (14.0°F to 140°F), combined with sensor Z2001: ±0.5°C (5.0°C to 35°C) | |||||
| Integration time | Integration time unit: PLC/ms (PLC setting: 0.02/ 0.2/ 1/ 10/ 100, ms setting: 1 ms to 9999 ms) | |||||
| Measurement support functions | Smoothing function, null, temperature compensation, scaling, over-range display, self-calibration, auto-hold, contact check | |||||
| Management support functions | Comparator, BIN, absolute value judgment, label display, statistics, measurement information, communication monitor, EXT. I/O TEST | |||||
| Contact check | Check signal: 10 mV rms, threshold value: 0.5 nF to 50 nF (Cannot use in the 100 V/1000 V ranges), Contact check integration time: 1 ms to 100 ms | |||||
| Interfaces | Standard: LAN (100BASE-TX), EXT. I/O, USB flash drive / USB device (USB2.0 Full-Speed) Optional: GP-IB (-02 type only) / RS-232C (-03 type only) / PRINTER (-03 type only) |
|||||
| Power supply | 100 to 240 V AC, 50/60 Hz, 30 VA | |||||
| Dimensions and mass | 215 mm (8.46 in) W × 88 mm (3.46 in) H × 232 mm (9.13 in) D (-01 type): 2.3 kg (81.1 oz), (-02/-03 type): 2.4 kg (84.7 oz) |
|||||
| Included accessories | Instruction manual ×1, power cord ×1, application disk (CD-R) ×1 | |||||
