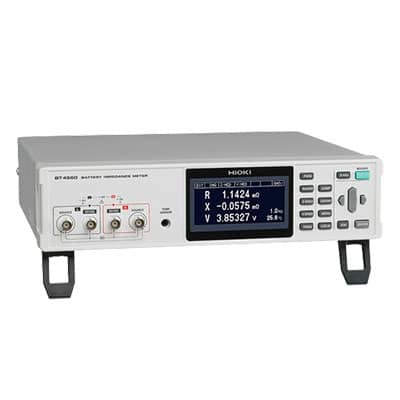

HIOKI BT4560 BATTERY IMPEDANCE METER:
Hioki benchtop battery testers support simultaneous high-speed measurement in the ever-expanding production lines of increasingly larger lithium-ion low-resistance batteries. The BT4560 battery impedance tester measures the impedance of lithium-ion batteries using the low-frequency AC-IR measurement method without charging and discharging the battery, substantially reducing the time needed to inspect the internal resistance of battery cells.
Are you looking for an excellent, battery tester? Yes, you are in the right place at the right time. tools Bangladesh provides testing supplies and tools. So, you may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest delivery services.
Key Features:
- Low-frequency AC-IR measurement (*1): Measure the reaction resistance of a battery
- Extremely reliable measurements for low-impedance batteries (*2)
- Circuit configuration highly tolerant of contact and wire resistance to provide stable measurements
- Voltage measurement function equivalent to 6-digit DMM (± 0.0035% rdg.)
Basic specifications:
Accuracy guaranteed: 1 year
| Allowable input voltage |
Up to 5 V |
| Measured information |
Impedance, voltage, temperature |
| Impedance measurement |
Parameters: R, X, Z, θ, Frequency: 0.1 Hz to 1050 Hz, Measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ
Testing current: 3 mΩ range: 1.5 Arms, 10 mΩ range: 500 mArms, 100 mΩ range: 50 mArms |
| Voltage measurement |
Measurement range: 5.00000 V (single range), Measurement time: 0.1 s (Fast) to 1.0 s (Slow) |
| Temperature measurement |
Range: -10.0 °C to 60.0 °C, Measurement time: 2.3 s |
| Basic accuracy |
Z: ±0.4% rdg. θ: ±0.1 °, V: ±0.0035% rdg. ±5 dgt. , Temperature: ±0.5 °C (at 10.0 to 40.0 °C) |
| Functions |
Comparator, self-calibration, sample delay, average, contact check, measurement current error, and other |
| Interfaces |
RS-232C/USB (virtual COM port) * Cannot be used simultaneously
EXT. I/O (NPN/PNP can be switched) |
| Power supply |
100 to 240 V AC, 50/60 Hz, 80 VA max |
| Dimensions and mass |
330 mm (12.99 in) W × 80 mm (3.15 in) H × 293 mm (11.54 in) D, 3.7 kg (130.5 oz) |
| Included accessories |
Power cord ×1, Instruction manual ×1, Zero-adjustment board ×1, USB cable (A-B type) ×1, CD-R (communication instruction manual, PC application software, USB driver) ×1 |
