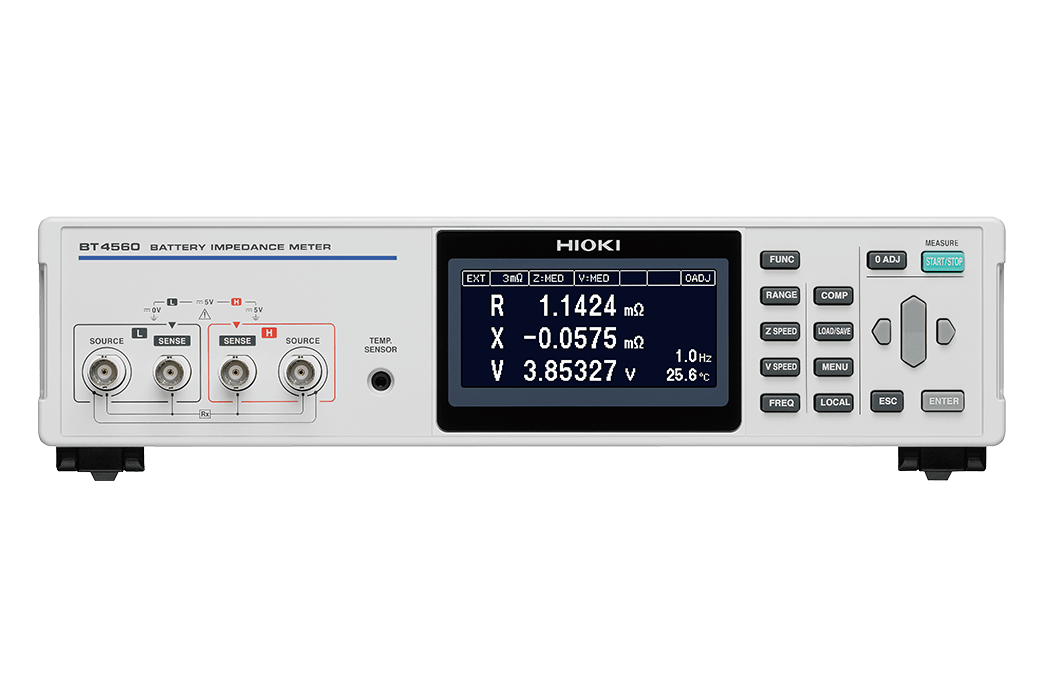

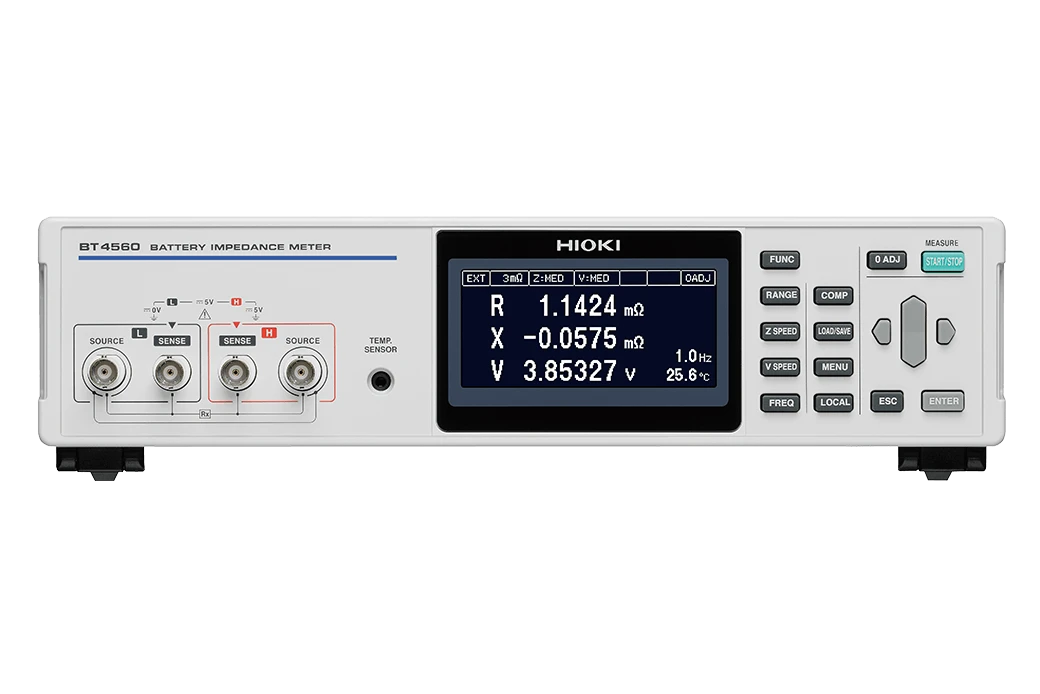

HIOKI BATTERY IMPEDANCE METER BT4560

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4230
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

The Battery Impedance Meter BT4560 can make EIS(*1) measurements quickly and easily in applications ranging from R&D to manufacturing. It delivers high-precision measurement capability for quality control of high-capacity batteries, and it can be expanded into an evaluation system for efficiently measuring multiple batteries. In addition, a new LAN interface simplifies the process of building a testing system, offering additional convenience.

HIOKI BATTERY IMPEDANCE METER BT4560 Price in Bangladesh reflects its premium performance and precision in battery testing. Designed for high-speed production lines, this advanced meter measures internal resistance and voltage of batteries with exceptional accuracy. It supports both AC and DC measurement modes, making it ideal for evaluating lithium-ion and other rechargeable batteries. Its compact design, fast testing capability, and easy integration into automated systems make it a top choice for manufacturers. Built with reliability and efficiency in mind, the BT4560 ensures accurate diagnostics in demanding environments. For professionals seeking performance, the HIOKI BATTERY IMPEDANCE METER BT4560 Price in Bangladesh offers great value.

Key Features

  • EIS measurement frequency: 0.01 Hz to 1.05 kHz
  • Simultaneous measurement of impedance, voltage, & temperature
  • Convenient evaluation application software for R&D use
  • Data compatibility with third-party equivalent circuit analysis software
  • For production lines: LAN interface & advanced multi-channel solutions

Basic specifications

Accuracy guaranteed: 1 year

Allowable input voltage Up to 5 V
Measured items Impedance, voltage, temperature
Impedance measurement Parameters: R (resistance), X (reactance), Z (impedance), θ (phase angle)
Frequency: 0.01 Hz to 1050 Hz
Measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ
Measurement current: 3 mΩ range: 1.5 A rms, 10 mΩ range: 500 mA rms, 100 mΩ range: 50 mA rms
Voltage measurement Measurement range: 5.00000 V (single range), measurement time: 0.1 s (FAST) to 1.0 s (SLOW)
Temperature measurement Range: -10.0°C to 60.0°C, measurement time: 2.3 s
Basic accuracy Z: ±0.4% rdg. θ: ±0.1°, V: ±0.0035% rdg. ±5 dgt., Temperature: ±0.5°C (at 10.0°C to 40.0°C)
Functions Comparator, self-calibration, sample delay, average, voltage limit, potential gradient compensation for impedance measurement, charge/discharge prevention during AC signal application, key lock, system test, panel saving and loading (up to 126 condition sets)

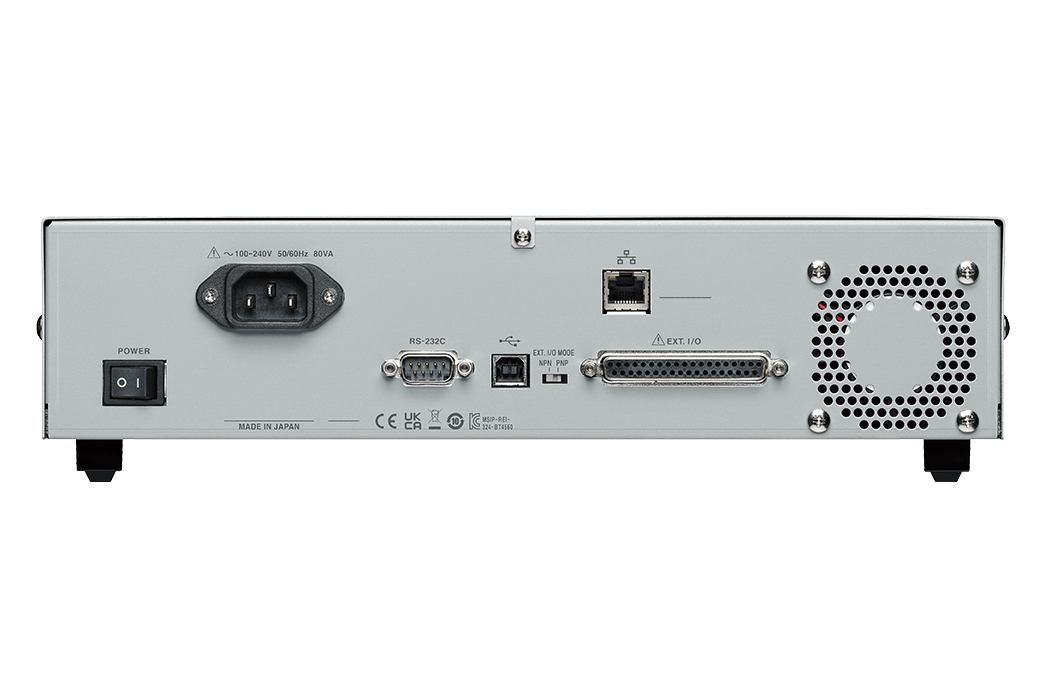

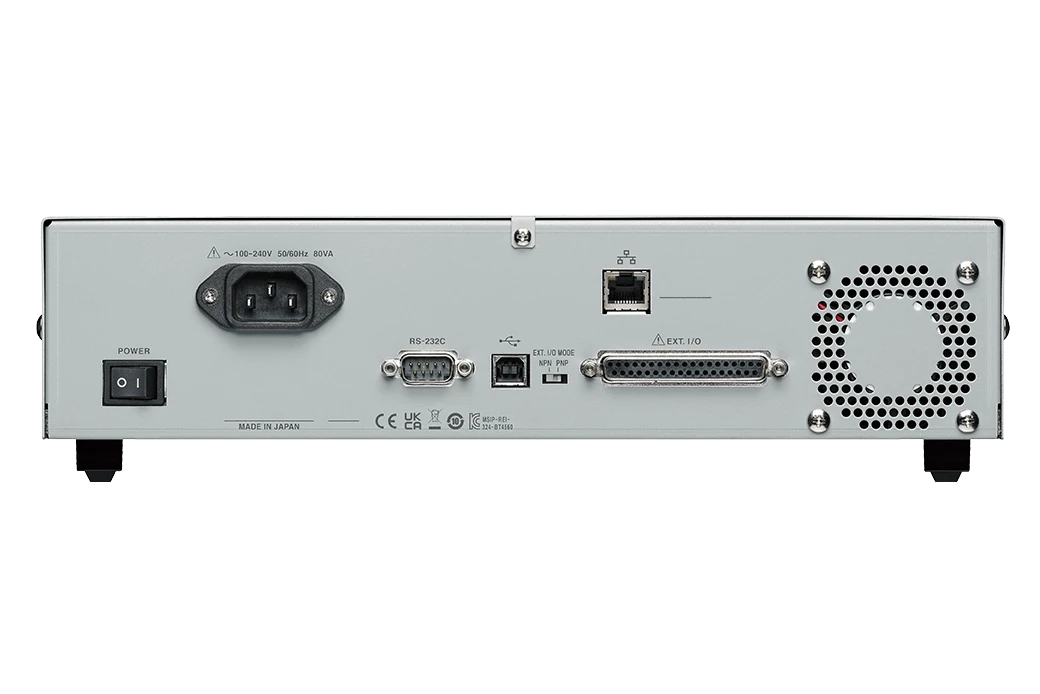

Interfaces LAN, RS-232C, USB, EXT. I/O (NPN/PNP can be switched)
Power supply Rated supply voltage: 100 V to 240 V AC
Rated supply frequency: 50 Hz/60 Hz
Rated power 80 VA max
Dimensions and weight Approx. 330W × 80H × 293D mm (12.99W × 3.15H × 11.54D in.), approx. 3.8 kg (134.0 oz.)
Included accessories Power cord × 1, instruction manual × 1, zero-adjustment board × 1, USB cable (A-B type) × 1, CD-R (comes with communication instruction manual, PC application software, and USB driver) × 1
Included accessories Power cord × 1, instruction manual × 1, zero-adjustment board × 1, USB cable (A-B type) × 1, CD-R (comes with communication instruction manual, PC application software, and USB driver) × 1
Included accessories Power cord × 1, instruction manual × 1, zero-adjustment board × 1, USB cable (A-B type) × 1, CD-R (comes with communication instruction manual, PC application software, and USB driver) × 1

The Battery Impedance Meter BT4560 can make EIS(*1) measurements quickly and easily in applications ranging from R&D to manufacturing. It delivers high-precision measurement capability for quality control of high-capacity batteries, and it can be expanded into an evaluation system for efficiently measuring multiple batteries. In addition, a new LAN interface simplifies the process of building a testing system, offering additional convenience.

HIOKI BATTERY IMPEDANCE METER BT4560 Price in Bangladesh reflects its premium performance and precision in battery testing. Designed for high-speed production lines, this advanced meter measures internal resistance and voltage of batteries with exceptional accuracy. It supports both AC and DC measurement modes, making it ideal for evaluating lithium-ion and other rechargeable batteries. Its compact design, fast testing capability, and easy integration into automated systems make it a top choice for manufacturers. Built with reliability and efficiency in mind, the BT4560 ensures accurate diagnostics in demanding environments. For professionals seeking performance, the HIOKI BATTERY IMPEDANCE METER BT4560 Price in Bangladesh offers great value.

Key Features

  • EIS measurement frequency: 0.01 Hz to 1.05 kHz
  • Simultaneous measurement of impedance, voltage, & temperature
  • Convenient evaluation application software for R&D use
  • Data compatibility with third-party equivalent circuit analysis software
  • For production lines: LAN interface & advanced multi-channel solutions

Basic specifications

Accuracy guaranteed: 1 year

Allowable input voltage Up to 5 V
Measured items Impedance, voltage, temperature
Impedance measurement Parameters: R (resistance), X (reactance), Z (impedance), θ (phase angle)
Frequency: 0.01 Hz to 1050 Hz
Measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ
Measurement current: 3 mΩ range: 1.5 A rms, 10 mΩ range: 500 mA rms, 100 mΩ range: 50 mA rms
Voltage measurement Measurement range: 5.00000 V (single range), measurement time: 0.1 s (FAST) to 1.0 s (SLOW)
Temperature measurement Range: -10.0°C to 60.0°C, measurement time: 2.3 s
Basic accuracy Z: ±0.4% rdg. θ: ±0.1°, V: ±0.0035% rdg. ±5 dgt., Temperature: ±0.5°C (at 10.0°C to 40.0°C)
Functions Comparator, self-calibration, sample delay, average, voltage limit, potential gradient compensation for impedance measurement, charge/discharge prevention during AC signal application, key lock, system test, panel saving and loading (up to 126 condition sets)
Interfaces LAN, RS-232C, USB, EXT. I/O (NPN/PNP can be switched)
Power supply Rated supply voltage: 100 V to 240 V AC
Rated supply frequency: 50 Hz/60 Hz
Rated power 80 VA max
Dimensions and weight Approx. 330W × 80H × 293D mm (12.99W × 3.15H × 11.54D in.), approx. 3.8 kg (134.0 oz.)
Included accessories Power cord × 1, instruction manual × 1, zero-adjustment board × 1, USB cable (A-B type) × 1, CD-R (comes with communication instruction manual, PC application software, and USB driver) × 1

Included accessories Power cord × 1, instruction manual × 1, zero-adjustment board × 1, USB cable (A-B type) × 1, CD-R (comes with communication instruction manual, PC application software, and USB driver) × 1

Included accessories Power cord × 1, instruction manual × 1, zero-adjustment board × 1, USB cable (A-B type) × 1, CD-R (comes with communication instruction manual, PC application software, and USB driver) × 1
