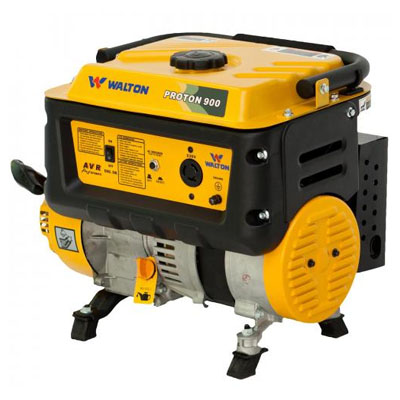

WALTON Proton 900:
The Walton Proton 900 is a compact gasoline generator equipped with a non-contact transistor ignition system, ensuring consistent and reliable engine starts. It features a 4-stroke gasoline engine, providing efficient power generation with lower emissions. The generator includes an automatic voltage regulator (AVR), which helps maintain a steady output voltage, preventing damage from power fluctuations.
Operating at a frequency of 50 Hz, the Proton 900 is designed for light-duty applications. It has a maximum AC output power of 800W and a rated output power of 700W, making it suitable for powering small appliances, lights, or electronic devices. Its compact design and moderate power output make it a practical choice for camping, and outdoor activities, or as an emergency backup generator for essential household items.
Key Features:
- Non-contact transistor ignition system
- Engine type: 4-stroke gasoline Engine
- Automatic voltage regulator (AVR)
- Frequency: 50 Hz
- Max. AC output power: 800W
- Rated output power: 700W
Specifications:
Start :
|
Starting System
|
Recoil Start
|
|
Fuel :
|
|
Fuel Tank capacity
|
3 L
|
|
Fuel Option
|
Petrol/Octane
|
|
Fuel Consumption
|
620 mL/Hr. at rated load
|
|
Time :
|
|
Operating Time
|
4 Hours Continuously at rated load
|
|
Engine :
|
| Engine Type |
Single cylinder; 4-stroke gasoline engine |
|
Engine Displacement
|
98cc
|
|
Engine Model
|
186F
|
| Engine oil capacity |
500 mL |
| Cooling system |
Air cooling |
| Shaft position |
Horizontal shaft |
| Ignition |
| Ignition Mode |
Transistorized Magneto |
|
Load Capacity :
|
|
Capacity Output (Rated)
|
700 Watt
|
|
Capacity Output (Maximum)
|
800 Watt
|
|
Frequency :
|
|
Frequency in hertz
|
50 Hz
|
|
Voltage :
|
|
Rated output voltage
|
230V
|
| Noise |
| Noise Level (dB) |
75 decibel |
|
Speed :
|
|
Speed per miniute
|
3000 RPM
|
| Carton Dimension (mm) |
| Length |
443 mm |
| Width |
323 mm |
| Height |
410 mm |
| Product Dimension (mm) |
| Length |
433 mm |
| Width |
307 mm |
| Height |
368 mm |
| Weight (kg) |
| Gross Weight |
23.7 kg |
| Net Weight |
22 kg |
