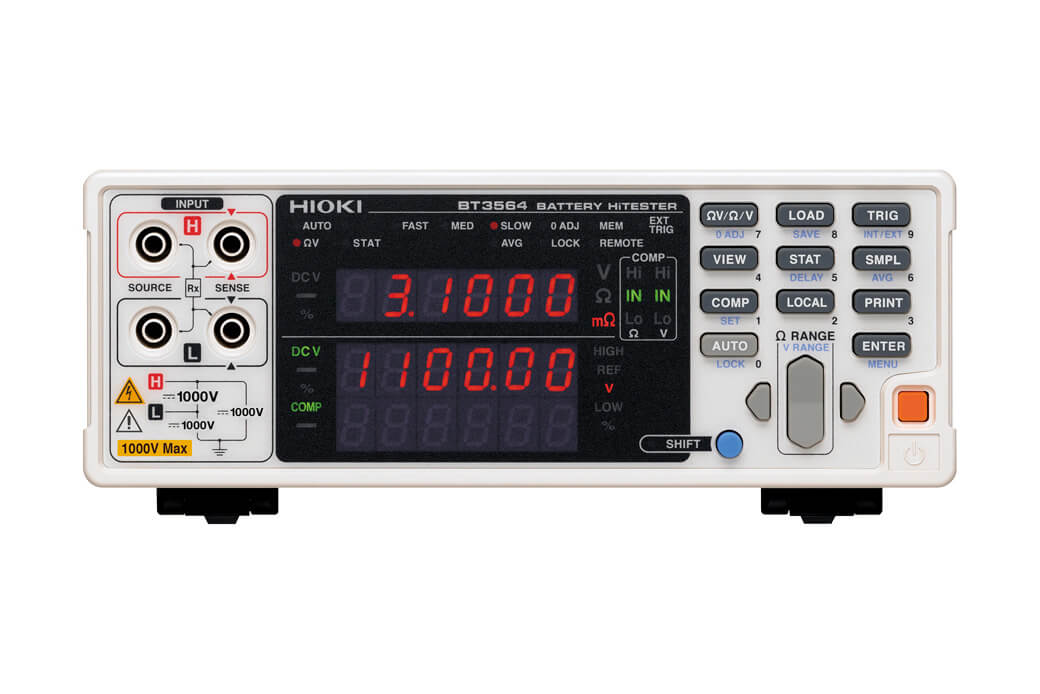

HIOKI BATTERY HiTESTER BT3564

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4238
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki benchtop battery testers support simultaneous high-speed measurement of the internal resistance and battery voltage of EV and PHEV battery packs. The BT3564 Battery HiTester can measure pack voltage and total resistance, as well as bus bar resistance up to 1000 V. HIOKI BATTERY HiTESTER BT3564 Price in Bangladesh offers precise battery testing for production lines and R&D. This advanced tester ensures high-speed, high-accuracy measurements, ideal for lithium-ion battery inspection. Suitable for EV and energy storage applications, the HIOKI BATTERY HiTESTER BT3564 Price in Bangladesh guarantees top performance and reliability.

Key Features

  • Measure high-voltage battery packs up to 1000 V
  • Production line testing of high-voltage battery packs for EV, PHEV
  • 0.1 μΩ to 3000 Ω internal resistance range (pack total resistance, bus bar resistance)
  • Measure from 0 V DC to ±999.999 V DC (minimum resolution 10 μV)
  • Optional measurement probe available for 1000 V and high-voltage battery packs
  • Spark discharge reduction function
  • Analog output function

Basic specifications

Accuracy guaranteed: 1 year

Max. applied
measurement voltage		 ± 1000 VDC rated input voltage
± 1000 VDC max. rated voltage to earth
Resistance measurement ranges 3 mΩ (max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3 kΩ (max. display 3.1000 kΩ, resolution 0.1 Ω), 7 ranges
Accuracy: ±0.5 % rdg. ±5 dgt. (30 mΩ to 3 kΩ range), ±0.5 % rdg. ±10 dgt. (3 mΩ range)
Testing source frequency: 1 kHz ±0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3.000 kΩ range)
Open terminal Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3.000 kΩ range)
Voltage measurement ranges 10 V DC (resolution: 10 µV) to 1000V DC (resolution: 1 m V), 3 ranges
Accuracy: ±0.01 % rdg. ±3 dgt.
Display 31000 full digits (resistance), 999999 full digits (voltage, 1000 V range: 999999 or 110000), LED
Sampling time FAST: 12 ms, MEDIUM: 35 ms, SLOW: 253 ms
(Typ., sampling time depends on supply frequency settings and function.)
Total measurement time Response time + sampling time (Response time for both resistance and voltage are reference value of about 700 ms, depends on measurement object.)
Comparator functions Judgment result: Hi/IN/Lo (resistance and voltage judged independently)
Setting: Upper and lower limit, Deviation (%) from reference value
Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results.
Result display, beeper, or external I/O output (open-collector, 35 V, 50 mA DC max.)
Analog output Measured resistance (displayed value, from 0 to 3.1 V DC)
Interfaces External I/O, RS-232C, Printer (RS-232C), GP-IB
Power supply 100 to 240 V AC, 50/60 Hz, 30 VA max.
Dimensions and mass 215 mm (8.46 in) W × 80 mm (3.29 in) H × 295 mm (12.95 in) D, 2.4 kg (84.7 oz)
Included accessories Instruction manual ×1, Power cord ×1 , Operating Precautions ×1
Included accessories Instruction manual ×1, Power cord ×1 , Operating Precautions ×1
Included accessories Instruction manual ×1, Power cord ×1 , Operating Precautions ×1

Hioki benchtop battery testers support simultaneous high-speed measurement of the internal resistance and battery voltage of EV and PHEV battery packs. The BT3564 Battery HiTester can measure pack voltage and total resistance, as well as bus bar resistance up to 1000 V. HIOKI BATTERY HiTESTER BT3564 Price in Bangladesh offers precise battery testing for production lines and R&D. This advanced tester ensures high-speed, high-accuracy measurements, ideal for lithium-ion battery inspection. Suitable for EV and energy storage applications, the HIOKI BATTERY HiTESTER BT3564 Price in Bangladesh guarantees top performance and reliability.

Key Features

  • Measure high-voltage battery packs up to 1000 V
  • Production line testing of high-voltage battery packs for EV, PHEV
  • 0.1 μΩ to 3000 Ω internal resistance range (pack total resistance, bus bar resistance)
  • Measure from 0 V DC to ±999.999 V DC (minimum resolution 10 μV)
  • Optional measurement probe available for 1000 V and high-voltage battery packs
  • Spark discharge reduction function
  • Analog output function

Basic specifications

Accuracy guaranteed: 1 year

Max. applied
measurement voltage		 ± 1000 VDC rated input voltage
± 1000 VDC max. rated voltage to earth
Resistance measurement ranges 3 mΩ (max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3 kΩ (max. display 3.1000 kΩ, resolution 0.1 Ω), 7 ranges
Accuracy: ±0.5 % rdg. ±5 dgt. (30 mΩ to 3 kΩ range), ±0.5 % rdg. ±10 dgt. (3 mΩ range)
Testing source frequency: 1 kHz ±0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3.000 kΩ range)
Open terminal Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3.000 kΩ range)
Voltage measurement ranges 10 V DC (resolution: 10 µV) to 1000V DC (resolution: 1 m V), 3 ranges
Accuracy: ±0.01 % rdg. ±3 dgt.
Display 31000 full digits (resistance), 999999 full digits (voltage, 1000 V range: 999999 or 110000), LED
Sampling time FAST: 12 ms, MEDIUM: 35 ms, SLOW: 253 ms
(Typ., sampling time depends on supply frequency settings and function.)
Total measurement time Response time + sampling time (Response time for both resistance and voltage are reference value of about 700 ms, depends on measurement object.)
Comparator functions Judgment result: Hi/IN/Lo (resistance and voltage judged independently)
Setting: Upper and lower limit, Deviation (%) from reference value
Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results.
Result display, beeper, or external I/O output (open-collector, 35 V, 50 mA DC max.)
Analog output Measured resistance (displayed value, from 0 to 3.1 V DC)
Interfaces External I/O, RS-232C, Printer (RS-232C), GP-IB
Power supply 100 to 240 V AC, 50/60 Hz, 30 VA max.
Dimensions and mass 215 mm (8.46 in) W × 80 mm (3.29 in) H × 295 mm (12.95 in) D, 2.4 kg (84.7 oz)
Included accessories Instruction manual ×1, Power cord ×1 , Operating Precautions ×1

Included accessories Instruction manual ×1, Power cord ×1 , Operating Precautions ×1

Included accessories Instruction manual ×1, Power cord ×1 , Operating Precautions ×1
