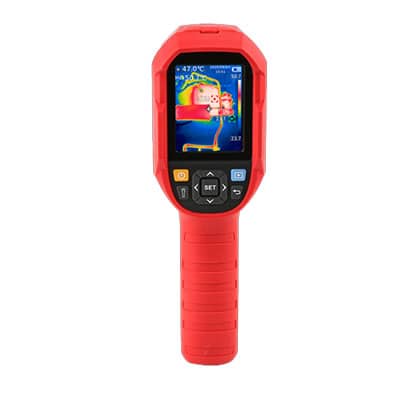

UTi720A Heavy Duty Thermal Camera:
UTi720A Heavy Duty Thermal Camera is a great tool for experts.UTi720A is a featured thermal imager with a quality build. Cooperating with a 2.8″ large display screen, UTi720A’s high-definition IR resolution assists users in noticing thermal abnormalities easily. Furthermore, it is also equipped with high-brightness LED light. This rugged product has an IP65 certificate and withstands a 2-meter drop. It can be equipped with a macro lens UT-Z002 (Optional), the recommended distance is 4 cm.
Are you trying to find a good, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Key Features :
- Durable and user-friendly
- 2.8” TFT display screen (320×240 Pixels)
- IR resolution: 256×192
- Temperature measurement range: -20℃ to 400℃ / -4℉ to 1022 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On-screen analyzer: 3 Points
- Image capture
- Image modes: Thermal
- Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
- LED flashlight
- PC software analysis and real-time image projection)
- Rechargeable Li-ion battery
- 1/4” Tripod Mounting Hole
- IP65
- 2m drop-proof
Specifications:
| Technical Data |
| IR resolution (Pixels) |
256×192 |
| Display |
2.8” TFT LCD (320×240) |
| Field of view(FOV) |
56°×42.2° |
| Thermal sensitivity(NETD) |
≤50mK |
| Spatial resolution(IFOV) |
3.8mrad |
| Frame rate |
≤25Hz |
| Spectral range |
8~14µm |
| Focus |
Focus Free |
| Temperature measurement range |
-20℃~400℃ (-4℉~752℉) |
| Accuracy |
±2℃ or ±2% whichever is greater |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Colour palettes |
7
(White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC) |
| Image modes |
Thermal |
| On-screen analyzer |
3 Points |
| Hi/Lo temperature alarm |
Icon, LED flashlight |
| PC software analysis |
√ |
| General Characteristics |
| Battery |
Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time |
≥ 7 hours |
| USB |
Type-C |
| IP rating |
IP65 |
| Drop-proof |
2m |
| Storage |
Up to 32GB Micro SD card |
| Image/Video storage format |
BMP |
| Certificates |
CE, FCC, RoHS |
| Product net weight |
490g |
| Product size |
236mm×75.5mm×86mm |
| Packing Details |
| Standard accessories |
Micro SD card, Type-C USB cable, English manual, Documents download operation guide card.
Macro Lens–UT-Z005 (Optional)
|
| Standard individual packing |
Gift box |
| Standard Qty per carton |
10 |
| Standard carton size |
500mm×315mm×295mm |
| Standard carton G.W. |
10.1kg |
