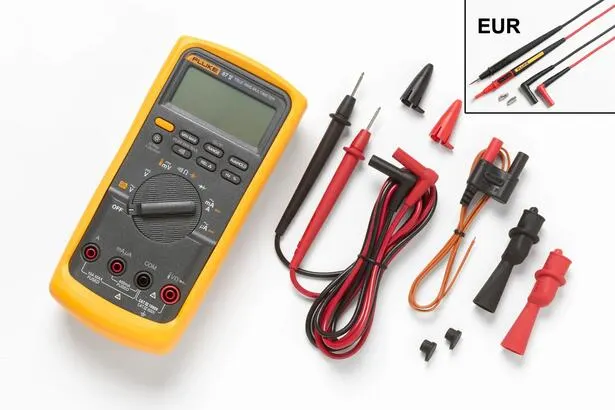

Fluke 87V Industrial Digital Multimeter

Supplier: Iconic Engineering Limited

Brand: Fluke

Category: Electrical

Sub Category: Digital Multimeters

Out of Stock Ask for Price

Model: FLUKE 87-5 Industrial Digital Multimeter

Fluke 87V Industrial Digital Multimeter which is best for testing and a major group of engineers they enjoyed.

When productivity is on the line and you need to solve problems fast, the Fluke 87V multimeter delivers the accuracy and advanced troubleshooting capabilities you need.

Designed specifically to handle complex signals, it takes the guesswork out of drive system troubleshooting—even in loud, high-energy, high-altitude locations. The full-featured 87V is well suited for most heavy industrial environments. Combo kit also available mfg. part no. Fluke-87-5/E includes special accessories to make industrial troubleshooting even more productive. All the time your Fluke product available anywhere in Bangladesh.

If you want to buy this one through Tools Bangladesh you can get a delivery service anywhere in Bangladesh. You also will get an engineering service if you need it.

Features

Key features: FLUKE 87-5 Industrial Digital Multimeter

Unique function for accurate voltage and frequency measurements on adjustable speed True-RMS ac voltage and current for accurate measurements on nonlinear signals
Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
Motor drives and other electrically noisy equipment
Measure up to 1000 V ac and dc
Measure up to 10 A (20 A for 30 seconds)
10,000 uF capacitance range
Frequency to 200 kHz and % duty cycle
Peak capture to record transients as fast as 250 ìs
4½ digit mode
Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
Large display digits and 2 level bright white backlight for increased visibility
Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
Improved sleep mode for long battery life
Relative mode to remove test lead resistance from low ohms measurements
Auto and manual ranging for maximum flexibility

Specifications

Specifications: FLUKE 87-5 Industrial Digital Multimeter

Specifications
Voltage DC	Maximum voltage	1000 V
	Accuracy	±(0.05% + 1)
	Maximum resolution	10 µV
Voltage AC	Maximum voltage	1000 V
	Accuracy	±(0.7% + 2) True RMS
	AC bandwidth	20 kHz with low pass filter; 3 db @ 1 kHz
	Maximum resolution	0.1 mV
Current DC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(0.2% + 2)
	Maximum resolution	0.01 µA
Current AC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(1.0% + 2) True RMS
	Maximum resolution	0.1 µA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.2% + 1)
	Maximum resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	accuracy	±(1% + 2)
	Maximum resolution	0.01 nF
Frequency	Maximum frequency	200 kHz
	Accuracy	±(0.005% + 1)
	Maximum resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.90%
	Accuracy	±(0.2% per khz + 0.1%)
	Maximum resolution	0.10%
Temperature measurement	–200.0°C – 1090°C
	–328.0°F – 1994.0°F
	excluding probe
80 BK temperature probe	–40.0°C – 260°C
	–40.0°F – 500°F, 2.2°C or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% + 1)
Duty cycle range	Accuracy	Within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature	–20°C to + 55°C
Storage temperature	–40°C to + 60°C
Humidity (without condensation)	0% – 90% (0°C – 35°C)
	0% – 70% (35°C – 55°C)
Operating Altitude	2000 m
Safety Specifications
Overvoltage category	EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals	UL, CSA, TÜV, VDE listed
Mechanical and General Specifications
Size	201 x 98 x 52 mm (with holster)
Weight	355 g
	624 g – with holster
Display	Digital	6000 counts updates 4/sec.
		19,999 counts in high–resolution mode
	Analog	32 segments, updates 40/sec
	Frequency	19,999 counts, updates 3/sec at > 10 Hz
Warranty	Lifetime
Battery Life	Alkaline	~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010–1:2001
Vibration	Per MIL–PRF–28800 for a Class 2 instrument
