Name: FLIR DM286 Industrial Thermal Imaging Multimeter with IGM™
Brand: Flir
Availability: InStock

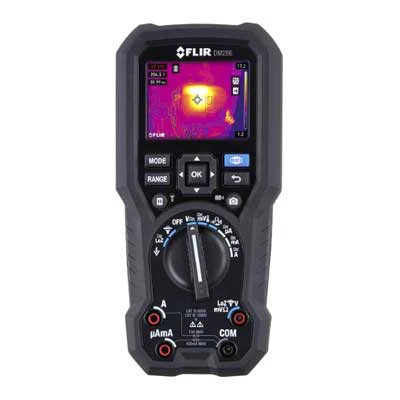

FLIR DM286 Industrial Thermal Imaging Multimeter with IGM™

The FLIR DM286 industrial imaging multimeter is the ultimate tool for electrical inspectors seeking a safe, accurate, and efficient way to identify, document, and share findings. With IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging), you can safely identify where hazards might be before contact is ever made. The powerful multimeter can capture and store up to 30,000 images and 100 log files, with the ability to record thermal and visual video clips. Stream live data in real time from the DM286 to your mobile device. Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing. Are you looking for digital multimeter? Now Explore FLIR G-Series Optical Gas Imaging (OGI) Cameras for Hydrocarbons Price in Bangladesh, advanced leak detection technology.

Key Features: FLIR DM286 Industrial Thermal Imaging Multimeter with IGM™

Perform Safe, Accurate & Quick Inspections
Safely locate potentially dangerous problems without direct contact using FLIR IGM. MSX gives you unrivaled clarity by embedding edge and outline detail onto thermal images.
Purpose Built for All Day Operation
The FLIR DM286 comes with a built-in LED worklight for better visibility in dark or poorly lit areas, two rechargeable Lithium Polymer battery packs for all-day operation, and a 2 m drop test rating for durability.
Unmatched Connectivity
Use the FLIR METERLiNK app to quickly and efficiently capture and compare readings, analyze and share radiometric images and videos, and create reports.

Specifications: FLIR DM286 Industrial Thermal Imaging Multimeter with IGM™

IR Resolution

160 × 120 (19,200 pixels)

Display Counts

6000

AC/DC Voltage

1000 V AC RMS ±(1.0％＋3) 1000 V DC ±(0.09%+3)

AC/DC Amps

10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3)

Connectivity

Bluetooth BLE

Imaging & Optical

Color Palettes

Iron, rainbow, arctic, white hot, and black hot

Field of view - visual

71° × 56°

Focus

Fixed

Frame Rate

9 Hz

Image Modes

Thermal MSX (Multi Spectral Dynamic Imaging)
Thermal Camera only
Digital Camera only

IR Resolution

160 × 120 (19,200 pixels)

IR Sensitivity

150 mK (0.15°C)

Spectral Response

8–14 µm

Thermal Imaging Detector

FLIR Lepton® microbolometer

Visual Focus and FOV

Fixed focus, 71° × 56° FOV

Visual Resolution

2 MP (1600 × 1200 pixels)

Measurement & Analysis

AC/DC Amps

10.00 A AC RMS ±(1.5%+3) 10.00 A DC ±(1.0%+3)

AC/DC LoZ V

1000 V AC RMS or 1000 V DC ±(1.3%+4)

AC/DC mVolt

AC 600.0 mV ±(1.0％＋3) DC 600.0 mV±(0.2%+3)

AC/DC Voltage

1000 V AC RMS ±(1.0％＋3) 1000 V DC ±(0.09%+3)

Calibration Cycle

Once per year, recommended

Capacitance

10.00 mF ±(4.0%+5)

Continuity check threshold

10–100Ω

Diode Test

1.500 V ± 0.9%

Display Counts

6000

Frequency Counter

100.00 kHz ±(0.1%+5)

Measuring Rate

3 samples per second

Resistance

6.000 MΩ ±(0.9%+5), 60.00 MΩ ±(3.0%+5)

Temperature Accuracy

±3°C (5.4°F) or ± 3% of the reading (whichever is greater) for temperatures > 25°C (77°F) ±5°C for temperatures -10°C to 25°C (14°F to 77°F)

Temperature Range

–5°C to 300°C (23°F to 572°F)

Temperature Resolution

0.1°C (0.1°F)

Temperature Type K thermocouple

-40°C to 400°C DMM ± (1.0% + 3°C) / IGM ± (1.0% + 5°C)
(-40°F to 752°F DMM ± (1.0% + 5.4°F) / IGM ± (1.0% + 9°F)

Thermal Sensitivity

150 mK (0.15°C)

VFD

AC V: 1000 V AC RMS, ±(1.3%+4) at 45∽65 Hz

Communication & Data Storage

Communication Protocol

METERLiNK

Connectivity

Bluetooth BLE

Image File Format

Radiometric

Storage

40,000 readings per memory set

Storage Media

eMMC 4GB

Stored Image Capacity

up to 30,000

Video Recording

50 minutes maximum duration
20 seconds max duration for file transmission

User Interface

Display

2.8"

Display Brightness

High, Medium, Low

Power

Auto Power Off

For Meter: set to OFF, 2, 5, or 10 minutes
For Worklight only: set to OFF, 5, 15, or 30 minutes

Battery

TA04, Lithium Polymer Rechargeable, 3050 mAh. Two supplied.

Battery life

Approx. 6.5 hours in IGM mode with display brightness set to medium.
Approx. 10 hours in Multimeter mode (medium brightness)

Non_Contact Voltage Detector [NCV]

Yes

General

Dimensions (L x W x H)

20 cm × 9.6 cm × 5.6 cm (7.9 in × 3.8 in × 2.2 in)

Included

1 x DM286 Industrial Thermal Imaging Multimeter
1 set of CATIV 600V Test Lead
1 set of CATIV 600V Alligator Clip
1 x Type-A to Micro-USB Cable (with Data transfer capability)
1 x K-type Thermocouple (-30°C to 260°C)
1 x Soft-sided carrying case
1 x FLIR Quick Start Guide
1 x FLIR Warranty Card
2 x TA04 Rechargeable Battery Cell

Scanning Mode

Continuous scan. Crosshairs and laser pointer targeting.

Weight

569 g (1.25 lb) without battery (approx.)

Worklights

x1 LED

Environmental & Certifications

Certifications

ETL, FCC, CE, RCM, UKCA, FDA, EN60825, EN50689

Drop test

2 m (6.6 ft)

EMC

EN61326-1

Emissivity Settings

0.10 to 1.00 (default is 0.95); select from four presets or set manually.

IP Rating

IP40

Laser Pointer Power

≤0.39 mW

Laser Type

Class I (red)

Laser Wavelength

640 nm to 660 nm

Operating Altitude

2000 m (6560 ft)

Operating Temp & Humidity

-10°C to 30°C (14°F to 86°F), <85% RH
30°C to 40°C (86°F to 104°F), <75% RH
40°C to 50°C (104°F to 122°F), <45% RH

Pollution Degree

2.0

Safety

IEC 61010-1 CAT IV - 600 V, CAT III - 1000 V

Storage temperature and relative humidity [RH]

-20°C to 60°C (-4°F to 140°F), 0–80% RH (without batteries)

Warranty

Limited 10-Year Warranty https://www.flir.com/testwarranty

Accessories

Software

FLIR METERLiNK® app
