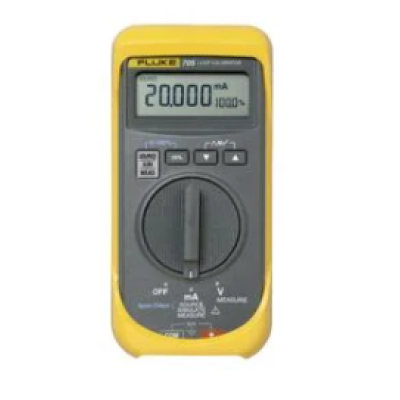

Name: Fluke 705 Loop Calibrator
Brand: Fluke
Availability: InStock

Product overview: Fluke 705 Loop Calibrator

Fluke 705 loop calibrator provides a cost-effective, integrated solution for calibrating milliamp loops

The Fluke 705 is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features a large display and simple, pushbutton interface for ease of use. Plus, it offers the other capabilities you need most to calibrate mA loops including:

mA sourcing, simulation and measurement
0.02% accuracy and 0.001 mA resolution
Simultaneous mA and % of span display
Selectable step or ramp outputs
24 V Loop supply with mA measure
0-28 VDC measurement to check Loop Voltage
Easy battery exchange without opening the case
Includes “span check” for fast confirmation of zero and span.
Provides selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
Runs on a single 9 V battery that is easily changed without breaking the calibration seal
Offers 0 - 20 mA or 4 - 20 mA default start up modes
Comes with a protective yellow holster with test lead storage and a three year warranty

Key Features

Powerful loop calibrator that provides a very cost effective, integrated solution for calibration, repair, and maintenance of milliamp loops
Provides simultaneous mA and % readout for quick, easy interpretation of readings.
Delivers mA accuracy of 0.02%
Features push button 25% steps for fast, easy linearity checks

Specifications: Fluke 705 Loop Calibrator

Specifications
Current measurement	Range	0 to 24 mA
	Resolution	0.001 mA
	Accuracy	0.02% Rdg + 2 LSD
Current sourcing	Range	0 to 20 mA or 4 to 20 mA
	Accuracy	0.025% Rdg + 2 LSD
	Drive capability	1000 Ω @ 24 mA
Current simulation	Range	0 to 20 mA or 4 to 20 mA
	Accuracy	0.025% Rdg + 2 LSD
	Ext. loop voltage requirement	12-30 V
Loop power	While measuring mA, 24 V
Voltage measurement	Range	0 to 28 V DC
	Resolution	1 mV
	Accuracy	0.025% Rdg + 2 LSD
Environmental Specifications
Operating temperature	-10°C to 55°C
Storage temperature	-40°C to 60°C
Humidity (without condensation)	0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)
Temperature coefficient	-10°C to 18°C, 28°C to 55°C, ±.005% of range per°C
Safety Specifications
Safety	CSA C22.2 No. 1010.1:1992
EMC	EN50082-1:1992 and EN55022:1994 Class B
Maximum voltage	30 V
Mechanical and General Specifications
Size	152 x 70 x 41 mm
Weight	340 g
Batteries	One 9 V battery
Warranty	Three years
Shock and vibration	per MIL-T-28800 for a Class 2 Instrument
Display current and % of span	Yes
Auto step, auto ramp	Yes
Span check	Yes
