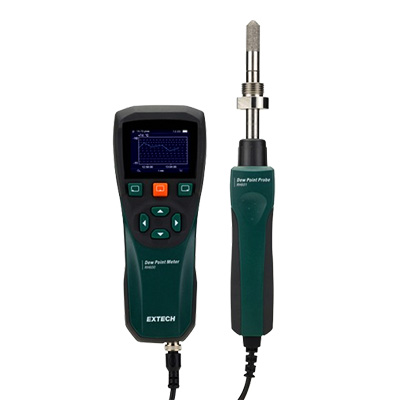

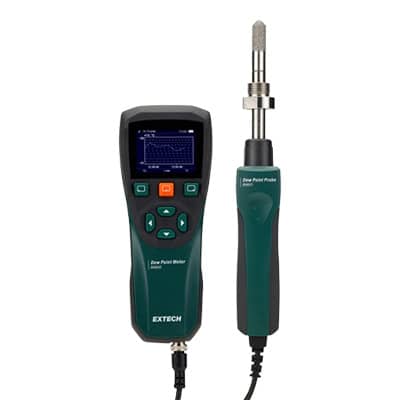

Extech RH600 Dew Point Meter:
The Extech RH600 accurately measures and data logs dew point levels in compressed air systems. This high-precision meter can help manufacturing professionals protect product quality while avoiding damaged pneumatic equipment, corrosion, and problems in cylinder and valve systems. Featuring a colour graphical display, the RH600 provides clear, stable readings, allowing you to measure dew point temperature down to -50°C (-58°F) in max ambient pressure of 20 bar. Set high/low audible and visible alarms for temperature, relative humidity, and dew point thresholds. You can also easily log and transfer recorded data to a PC in CSV format to create inspection reports quickly.
Are you looking for the best Dew Point Meter? Indeed, you are in the right position at this moment. Given that Tools Bangladesh offers testing supplies and testing equipment, As a result, you may affordably get your preferred tool from us in Bangladesh with the best delivery service.
Key Features:
- Precisely measure dew point as low as -50°C (-58°F) under ambient pressure up to 20 bar
- Take reliable readings using the sensor purge/ purification feature, which allows the probe sensor to dry quickly after contact with moisture
- Directly insert the probe sensor into the compressed air system through a G1/2” thread
- Measure low humidity (RH <5%) with high accuracy (±0.025%)
- Easily monitor dew point on the color graphical display with a menu-based user interface
- Log and transfer up to 32,000 data sets to a computer (in CSV format) using USB cable
- Program high/low set points for temperature, relative humidity, and dew point with visual and audible alarms
- Complete with RH601 Dew Point Probe, AC adapter, Micro USB to USB-A cable, 3.7 V Li-ion battery, and hard case
Specifications:
| Dew Point |
Range: -40°C to 30°C (-40°F to 86°F), Basic Accuracy: ±3.6°F (±2°C)
Range: -50°C to -40°C (-58°F to -40°F), Basic Accuracy: ±4.5°F (±2.5°)
Max Resolution: 0.01°
|
| Dimensions & Weight |
192 mm × 77 mm × 40 mm (7.5 in × 3.0 in × 1.6 in), 598 g (21.1 oz) |
| Relative Humidity |
Range: 15 to 100% RH, Basic Accuracy: ±2% RH + 3% of reading
Range: 5 to 15% RH, Basic Accuracy: ±1% RH + 5% of reading
Range: 0 to 5% RH, Basic Accuracy: ±0.025% RH +17.5% of reading
Max Resolution: .01% RH |
| Response Time |
At a flow rate 0.2 m/s, 1 bar pressure, 63% RH [90% RH]
0°C to 40°C Td (32°F to -40°F Td): 20 s [120 s]
40°C to 0°C Td (-40°F to 32°F Td): 10 s [20 s] |
| Temperature |
Range: -10℃ to 60℃ (14℉ to 140℉)
Max Resolution: 0.01°
Basic Accuracy: ±0.3℃ (±0.54°F) |
| Water Concentration |
Range: 40 to 20,000 ppm
Max Resolution: 1
Basic Accuracy: ±(7.3 ppm + 8.3% of rdg) |
| Data Logging |
32,000 data sets with time stamps |
| Operating Conditions |
-10°C to 60°C (14°F to 140°F), Pressure: 0 to 20 bar
Accuracy at environment temperature: 16°C to 25°C (60.8°F to 77°F) |
| Power |
3.7 V rechargeable Li-ion battery (included) |
| |
|
