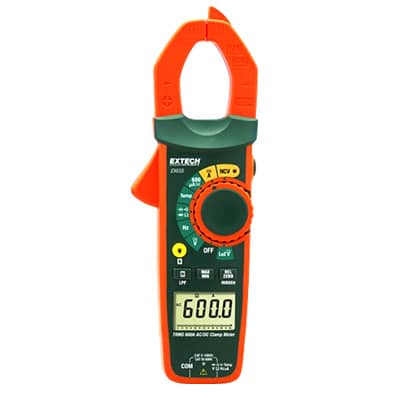

Extech EX655 600A True RMS AC/DC Clamp Meter + NCV:
The EX655 is a 600A True RMS AC/DC Clamp meter. This clamp meter also measures AC/DC voltage, resistance, capacitance, frequency, temperature, and continuity/diode test and has an NCV detector. The EX655 has a 1.18" jaw size which accommodates conductors up to 350 MCM. This meter also features a 6000-count backlit LCD, data hold, min/max, relative function, low pass filter, inrush mode, DC zero function, LCD trending bar graph, auto power off and a convenient LED work light. Complete with test leads general purpose bead wire Temperature probe, and 3 AAA batteries.
Are you looking for the best Clamp Meters? Indeed, you are in the right position at this moment. Given that Tools Bangladesh offers testing supplies and testing equipment, As a result, you may affordably get your preferred tool from us in Bangladesh with the best delivery service.
Specifications:
General Specifications:
AC Current 60A, 600A
AC Current Basic Accuracy ±2.5% of reading
AC Current Max Resolution 0.01A
AC Microcurrent 600µA
AC Microcurrent Max Resolution 0.1µA
AC Voltage 750V
AC Voltage Basic Accuracy ±1.2% of reading
AC Voltage Max Resolution 1mV
Capacitance 60mF
Capacitance Max Resolution 0.01nF
Continuity Yes
DC Current 60A ,600A
DC Current Basic Accuracy ±2.5% of reading
DC Current Max Resolution 0.01A
DC Microcurrent 600µA
DC Microcurrent Max Resolution 0.1µA
DC Voltage 1000V
DC Voltage Basic Accuracy ±0.8% of reading
DC Voltage Max Resolution 0.1mV
Diode Test Yes
Frequency 10Hz to 1MHz
Frequency Max Resolution 0.01Hz
Jaw Size 1.18" (30mm), conductors up to 350MCM
Non-Contact Voltage (NCV) Detector 100 to 1000VAC
Resistance 60MΩ
Resistance Max Resolution 0.1Ω
Temperature (Type K) Max Resolution -40 to 1832°F (-40 to 1000°C)
Temperature (Type N) Basic Accuracy
; ; 1°F/°C
True RMS Yes
Additional Details
Certifications CE, UL
Dimensions 9 × 3 × 1.6" (228 × 77 × 41mm)
Power 3 × AAA (1.5V) batteries
Safety Category CATIII - 600V, CATII - 1000V
Warranty 3 years
Weight 9.4oz (265g)
