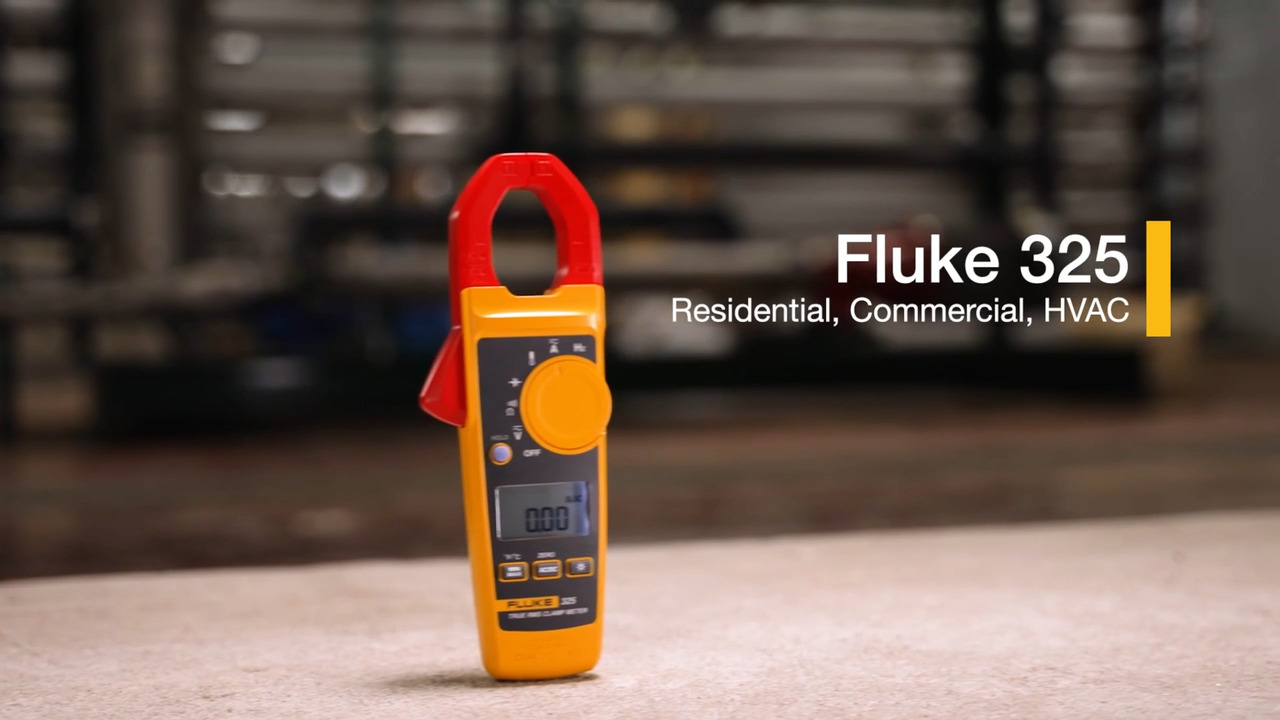

Model: Fluke 325 True RMS Clamp Meter
We ensure that Fluke 325 True RMS Clamp is a Rugged, reliable True-RMS clamp meter with dc current and frequency measurements. This is the right choice and gets it out from Tools Bangladesh.
This Fluke tool Clamp Meter is the peak of the 320 Series Clamp Meters. Designed to undertaking the toughest environments and have enough money noise-forgive, honorable results, you can trust the 325 to gain you confidently diagnose all kinds of electrical problems. It features True RMS measurements, optimized ergonomics, a large backlight display, and a rugged compact design to play in current in the works to 400 A in tight cable compartments. You can as well as use it to show temperature, capacitance, AC/DC current, and frequency.

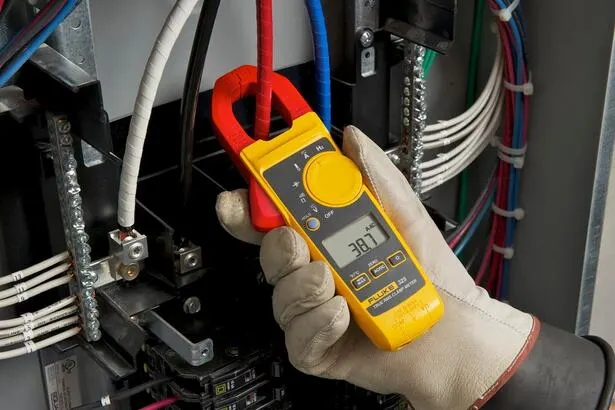

Commercial and residential electricians use the 325 to proclaim the presence of load current, AC voltage, and continuity of circuits, switches, fuses, and friends. Frequency measurements divulge checking of portable generators; dc current psychotherapy battery backups and solar storage equipment.
Also, you will get The Fluke 325 comes later than a two-year warranty and soft carrying events. So no late quick to get on your hand order at Tools Bangladesh.
Key Features: Fluke 325 True RMS Clamp Meter
- Rugged, reliable True-RMS clamp meter with dc current and frequency measurements
- Measures AC and DC current to 400 A
- Measures AC voltage and DC voltage to 600 V
- Provides True RMS AC voltage and current for accurate measurements on non-linear signals
- Measures resistance to 40 kΩ with continuity detection
- Measures frequency to 500 Hz
Specifications: Fluke 325 True RMS Clamp Meter
| Specifications |
| AC current |
Range |
40.00 A / 400.0 A |
| Accuracy |
2% ± 5 digits (45 Hz to 65 Hz)
2.5% ± 5 digits (65 Hz to 400 Hz) |
| DC current |
Range |
40.00 A / 400.0 A |
| Accuracy |
2% ± 5 digits |
| AC voltage |
Range |
600.0 V |
| Accuracy |
1.5% ± 5 digits |
| DC voltage |
Range |
600.0 V |
| Accuracy |
1.0% ± 5 digits |
| Resistance |
Range |
400.0 Ω / 4000 Ω / 40.00 kΩ |
| Accuracy |
1.0% ± 5 digits |
| Continuity |
≤ 30 Ω |
| Capacitance |
0 to 100.0 μF / 100μF to 1000 μF
|
| Frequency |
5.0 Hz to 500.0 Hz |
| AC response |
True-RMS |
| Backlight |
Yes |
| Data hold |
Yes |
| Contact temperature |
-10.0°C to 400.0°C (14.0°F to 752.0°F) |
| Min/Max |
Yes |
| Size |
H x W x D (mm) |
207 x 75 x 34 |
| Max wire diameter |
30 mm (600 MCM) |
| Weight |
283 g |
| Category rating |
CAT III 600 V
CAT IV 300 V |
| Warranty |
Two-year |

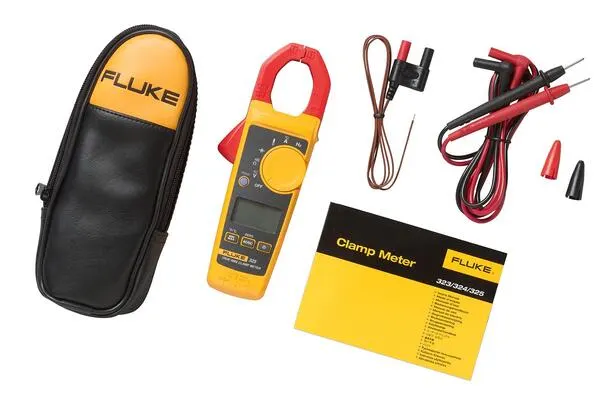

Includes: Fluke 325 True RMS Clamp Meter
- Test leads
- Soft case
- User's manual
Accessories: Fluke 325 True RMS Clamp Meter
Test leads (1)
Fluke TL223 SureGrip™ Electrical Test Lead Set
Cases (2)
Fluke C43 Soft Carrying Case
Fluke CAMO-37 Camouflage Carrying Case
Other (1)
Fluke MeterCleaner™ Wipes
