Hioki clamp meters are best-in-class measuring devices incorporating Hioki's gains in current sensing technology.

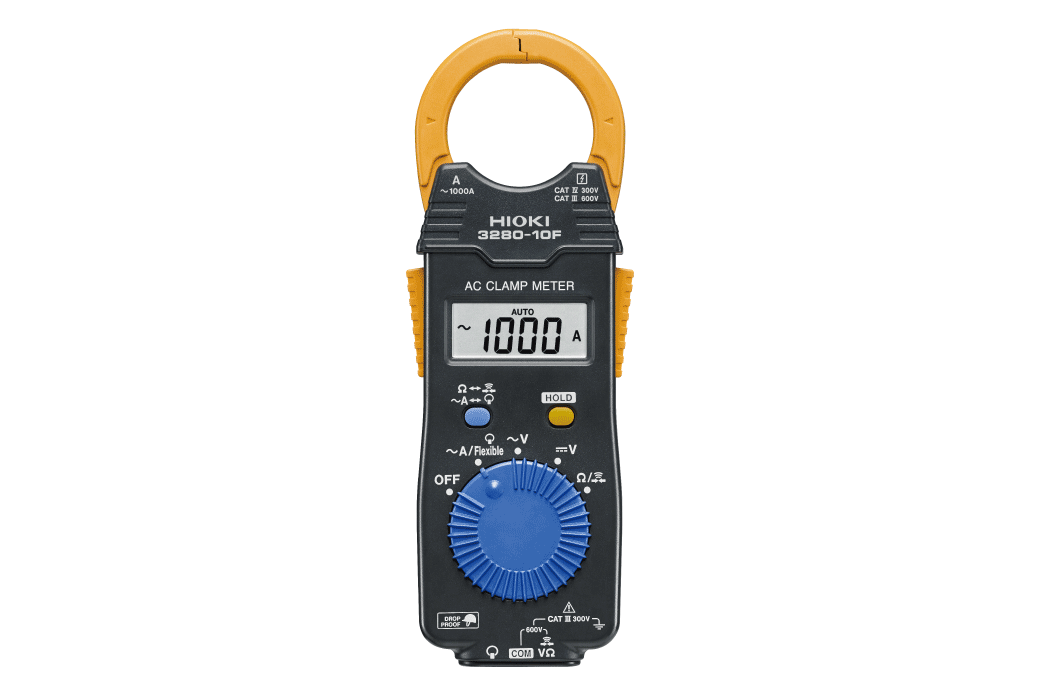

The 3280-10F is an average rectifying 1000A AC clamp meter that features an expansive energetic temperature range of -25C to 65C, skinny and compact clamp core, and optional gymnastic current sensor that you can tape to set aside you acquire into the tightest skin. Hioki 3280-10F Clamp Multimeter price in Bangladesh is affordable considering its high-quality performance and reliability. This versatile tool is perfect for electricians and technicians who need accurate AC, voltage, and resistance measurements in a compact design. Built for durability, the Hioki 3280-10F ensures efficient troubleshooting in both industrial and residential settings. Hioki 3280-10F price in Bangladesh. Offers precise current measurement with an easy clamp design, ideal for electricians.
Key Features: Hioki 3280-10F Clamp Multimeter
- Measure the fundamental waveform component using the average rectified method
- Expanded -25 °C to 65 °C operating temperature range

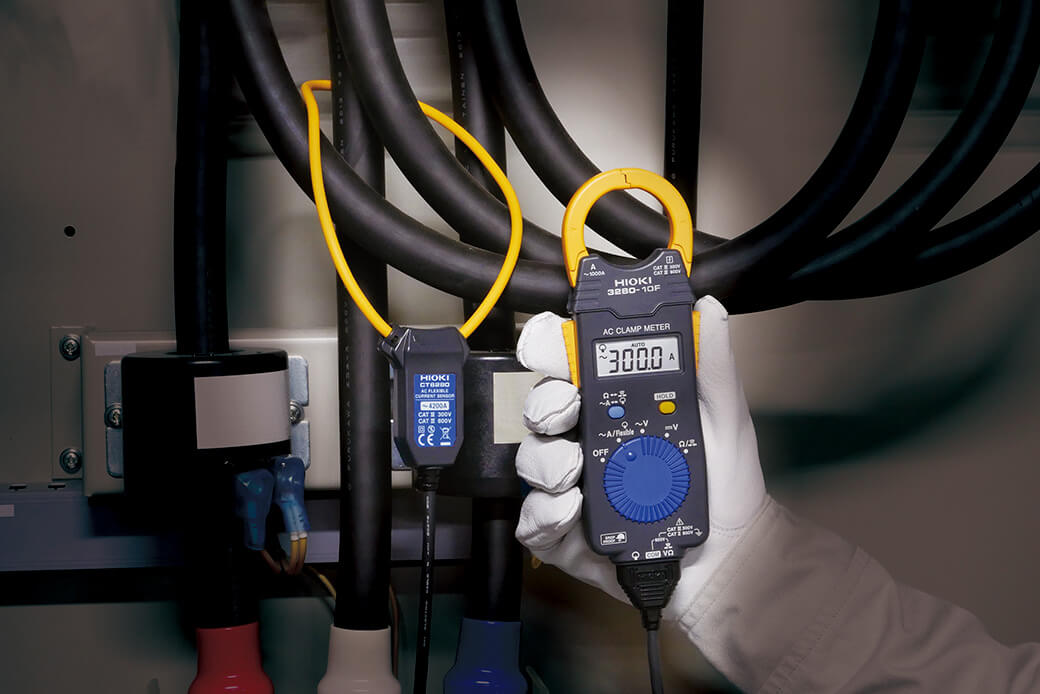

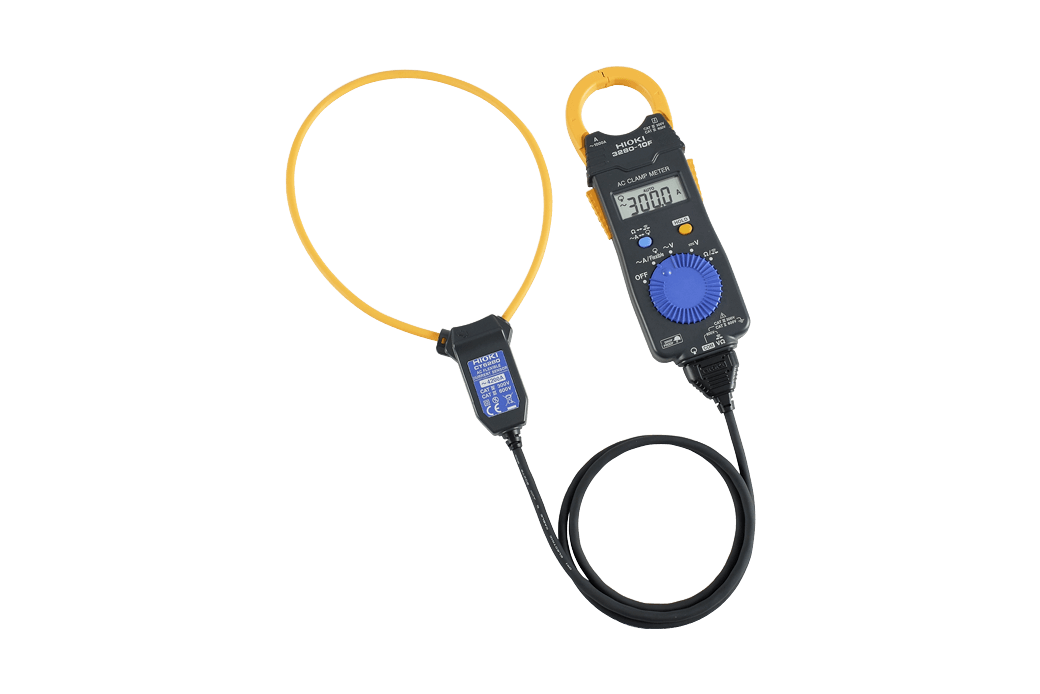

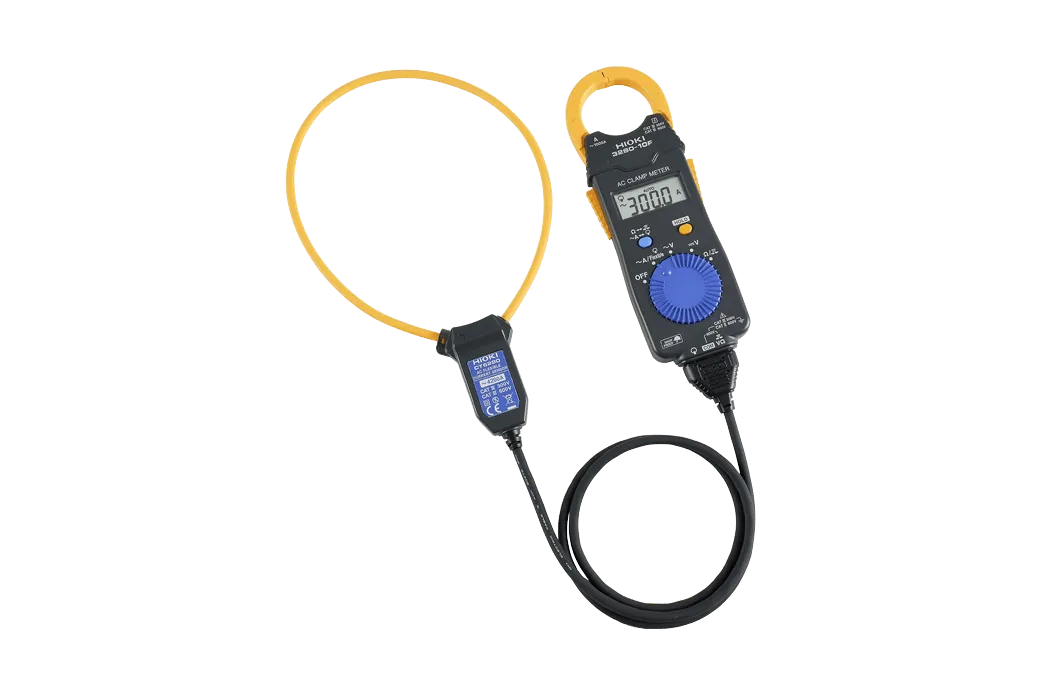

- Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
- Drop-proof design withstands drop from a height of 1 meter
Specifications: Hioki 3280-10F Clamp Multimeter
| AC Current range |
41.99 to 1000 A, 3 ranges (50 to 60 Hz, Average rectified),
Basic accuracy: ±1.5 % rdg. ±5 dgt. |
| DC Voltage range |
419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. |
| AC Voltage range |
4.199 V to 600 V, 4 ranges
(45 to 500 Hz, Average rectified),
Basic accuracy: ±1.8 % rdg. ±7 dgt. |
| Crest factor |
N/A |
| Resistance range |
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. |
| Other functions |
Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
| Display |
LCD, max. 4199 dgt., Display refresh rate: 400 ms |
| Environmental protection |
IP40 dustproof and waterproof |
| Power supply |
Coin type lithium battery (CR2032) ×1, Continuous use 120 hours |
| Core jaw dia. |
φ 33 mm (1.30 in) |
| Dimensions and mass |
57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz) |
| Accessories |
CARRYING CASE 9398 ×1, TEST LEAD L9208 ×1, Coin type lithium battery (CR2032) ×1, Instruction manual ×1 |
CT6280 Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Core jaw dia. |
φ 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in)) |
| AC Current |
419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.) |
| Cable length |
800 mm (31.5 in) |
| Included accessories |
CARRYING CASE 9398 ×1, TEST LEAD L9208 ×1, Coin type lithium battery (CR2032) ×1, Instruction manual ×1 |
| Included accessories |
CARRYING CASE 9398 ×1, TEST LEAD L9208 ×1, Coin type lithium battery (CR2032) ×1, Instruction manual ×1 |
Write a Review
Product ta genuine ebong perfectly kaj kore. Lightweight ebong carry korte onek convenient.
