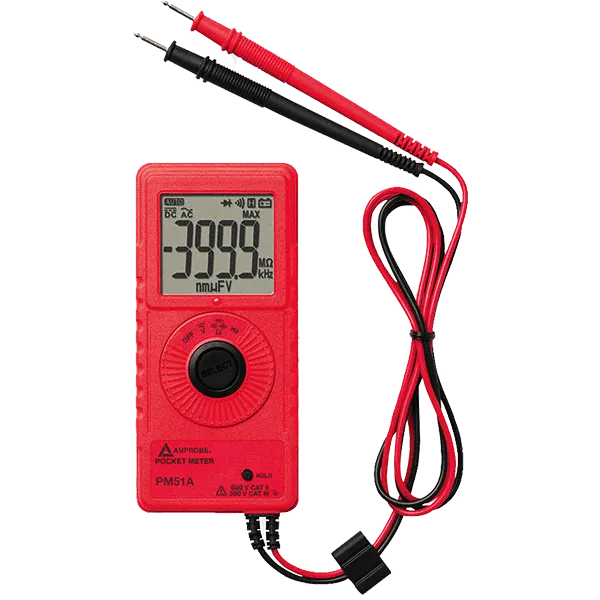

Model: Amprobe PM51A Pocket Digital Multimeter

Amprobe PM51A Pocket Digital Multimeter is Measures AC and DC voltage, resistance, continuity with beeper, capacitance, and frequency that are rugged reliable and trusted.

The Amprobe PM51A, a shirt-pocket sized meter is by yourself 3/8 thick and weighs less than 3 oz. With full functionality offering AC and DC voltage to 600V, resistance to 40 megohms, capacitance to 3000 F, frequency to 1 MHz, continuity taking into account beeper, and diode test.

Fully auto-ranging, this meter offers seven exchange measurement functions taking into account 27 full ranges of measurement. The digital display is oversized subsequent to large digits and annunciators. In fierceness of its size, this meter is adequate safety rated to CAT III 300 V, CAT II 600 V and is UL listed. No option meter offers this small size past such society and high safety ratings.

Tools Bangladesh offers the best tools that are rugged reliable and trusted and it's doing a good performance to the test point.

Key Features: Amprobe PM51A Pocket Digital Multimeter

  • Measures AC and DC voltage, resistance, continuity with beeper, capacitance and frequency
  • Fully autoranging with 7 measurement functions and 27 ranges
  • Large oversize digital display with measurement results and the unit icon
  • Data hold freezes measurement value
  • Average sensing
  • Power consumption (typical) 2 mA
  • Automatic power off , timing Idle for 30 minutes
  • APO consumption (typical) 2.2 μA
  • E.M.C. meets EN61326
  • Battery installed, and users manual
  • Audible continuity tester open circuit voltage 0.4 V DC typical
  • Diode tester test current (typical) 0.25 mA
  • Diode tester open circuit voltage 1.6 V dc

Specifications: Amprobe PM51A Pocket Digital Multimeter

FEATURE PM51A PM55A
Voltage AC/DC 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V 6.000, 60.00, 600.0 V
Resistance 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO 600.0 O, 6.000 kO, 60.00 kO, 600.0 kO, 6.000 MO
AC/DC Current – 400.0 µA, 2000 µA
Frequency 400 Hz, 4 kHz, 40 kHz, 400 kHz, and 1 MHz 10.00 Hz → 30.00 kHz
Capacitance 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF 100.0 nF, 1000 nF, 10.00 µF, 100.0 µF, 2000 µF
VolTect™ Non-Contact Voltage Detection – •
Specifications
DC Voltage range: 400.0 mV , Accuracy: ± (1.0 %+2 dgt)
DC Voltage range: 4.000 V, 40.00 V, 400.0 V, Accuracy: ± (2.0 %+2 dgt)
DC Voltage range: 600 V, Accuracy: ± (2.5 %+4 dgt)
DC Voltage NMRR: > 50 dB @ 50 Hz/60 Hz
DC Voltage CMRR: > 120 dB @ dc, 50 Hz/60 Hz; Rs= 1 kO
Input impedance: 10 MO, 30 pF nominal; (1000 MO for 400.0 mV range)
AC Voltage range 50 Hz – 60 Hz: 4.000 V, 40.00 V, 400.0 V, Accuracy: ± (2.0 %+5 dgt)
AC Voltage range 60 Hz – 500 Hz: 4.000 V, 40.00 V, 400.0 V, Accuracy: ± (3.0 %+5 dgt)
AC Voltage range 50 Hz – 500 Hz: 600 V, Accuracy: ± (3.5 %+5 dgt)
Input impedance: 10 MO, 30 pF nominal
AC Voltage CMRR: > 60 dB @ dc to 60 Hz, Rs=1 kO
Capacitance range*: 500.0 nF, 5.000 µF, 50.00 µF,500.0 µF, 3000 µF3
Capacitance accuracy*: ± (3.5 %+6 dgt4)
Resistance range: 400.0 O, Accuracy: ± (1.5 %+6 dgt)
Resistance range: 4.000 KO, 40.00 KO, 400.0 KO, Accuracy:± (1.0 %+4 dgt)
Resistance range: 4.000 MO, Accuracy: ± (1.5 %+4 dgt)
Resistance range: 40.00 MO, Accuracy: ± (2.5 %+4 dgt)
Open circuit voltage: 0.4 V dc typical
Frequency range**: 400 Hz, 4 kHz, 40 kHz, 400 kHz, 1 MHz,Accuracy:± (0.5 %+4 dgt)
Sensitivity (V-peak): 5 Hz – 100 kHz, Accuracy:> 1.3 Vp
Sensitivity (V-peak): 100 kHz – 500 kHz, Accuracy:> 2.2 Vp
Sensitivity (V-peak): 500 kHz – 1 MHz, Accuracy:> 4.2 Vp
Audible continuity tester open circuit voltage: 0.4 V dc typical
Audible threshold : 65 O ±55 O

For complete specs please download the product datasheet under the “Resources” tab.

Includes: Amprobe PM51A Pocket Digital Multimeter

  • Measures ac and dc voltage, resistance, continuity w/ beeper, capacitance and frequency
  • Fully autoranging
  • Large oversize digital display
  • Data Hold

Accessories: Amprobe PM51A Pocket Digital Multimeter

  • Battery(installed),
  • Users manual

Model: Amprobe PM51A Pocket Digital Multimeter

Amprobe PM51A Pocket Digital Multimeter is Measures AC and DC voltage, resistance, continuity with beeper, capacitance, and frequency that are rugged reliable and trusted.

The Amprobe PM51A, a shirt-pocket sized meter is by yourself 3/8 thick and weighs less than 3 oz. With full functionality offering AC and DC voltage to 600V, resistance to 40 megohms, capacitance to 3000 F, frequency to 1 MHz, continuity taking into account beeper, and diode test.

Fully auto-ranging, this meter offers seven exchange measurement functions taking into account 27 full ranges of measurement. The digital display is oversized subsequent to large digits and annunciators. In fierceness of its size, this meter is adequate safety rated to CAT III 300 V, CAT II 600 V and is UL listed. No option meter offers this small size past such society and high safety ratings.

Tools Bangladesh offers the best tools that are rugged reliable and trusted and it's doing a good performance to the test point.

Key Features: Amprobe PM51A Pocket Digital Multimeter

  • Measures AC and DC voltage, resistance, continuity with beeper, capacitance and frequency
  • Fully autoranging with 7 measurement functions and 27 ranges
  • Large oversize digital display with measurement results and the unit icon
  • Data hold freezes measurement value
  • Average sensing
  • Power consumption (typical) 2 mA
  • Automatic power off , timing Idle for 30 minutes
  • APO consumption (typical) 2.2 μA
  • E.M.C. meets EN61326
  • Battery installed, and users manual
  • Audible continuity tester open circuit voltage 0.4 V DC typical
  • Diode tester test current (typical) 0.25 mA
  • Diode tester open circuit voltage 1.6 V dc

Specifications: Amprobe PM51A Pocket Digital Multimeter

FEATURE PM51A PM55A
Voltage AC/DC 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V 6.000, 60.00, 600.0 V
Resistance 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO 600.0 O, 6.000 kO, 60.00 kO, 600.0 kO, 6.000 MO
AC/DC Current – 400.0 µA, 2000 µA
Frequency 400 Hz, 4 kHz, 40 kHz, 400 kHz, and 1 MHz 10.00 Hz → 30.00 kHz
Capacitance 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF 100.0 nF, 1000 nF, 10.00 µF, 100.0 µF, 2000 µF
VolTect™ Non-Contact Voltage Detection – •
Specifications
DC Voltage range: 400.0 mV , Accuracy: ± (1.0 %+2 dgt)
DC Voltage range: 4.000 V, 40.00 V, 400.0 V, Accuracy: ± (2.0 %+2 dgt)
DC Voltage range: 600 V, Accuracy: ± (2.5 %+4 dgt)
DC Voltage NMRR: > 50 dB @ 50 Hz/60 Hz
DC Voltage CMRR: > 120 dB @ dc, 50 Hz/60 Hz; Rs= 1 kO
Input impedance: 10 MO, 30 pF nominal; (1000 MO for 400.0 mV range)
AC Voltage range 50 Hz – 60 Hz: 4.000 V, 40.00 V, 400.0 V, Accuracy: ± (2.0 %+5 dgt)
AC Voltage range 60 Hz – 500 Hz: 4.000 V, 40.00 V, 400.0 V, Accuracy: ± (3.0 %+5 dgt)
AC Voltage range 50 Hz – 500 Hz: 600 V, Accuracy: ± (3.5 %+5 dgt)
Input impedance: 10 MO, 30 pF nominal
AC Voltage CMRR: > 60 dB @ dc to 60 Hz, Rs=1 kO
Capacitance range*: 500.0 nF, 5.000 µF, 50.00 µF,500.0 µF, 3000 µF3
Capacitance accuracy*: ± (3.5 %+6 dgt4)
Resistance range: 400.0 O, Accuracy: ± (1.5 %+6 dgt)
Resistance range: 4.000 KO, 40.00 KO, 400.0 KO, Accuracy:± (1.0 %+4 dgt)
Resistance range: 4.000 MO, Accuracy: ± (1.5 %+4 dgt)
Resistance range: 40.00 MO, Accuracy: ± (2.5 %+4 dgt)
Open circuit voltage: 0.4 V dc typical
Frequency range**: 400 Hz, 4 kHz, 40 kHz, 400 kHz, 1 MHz,Accuracy:± (0.5 %+4 dgt)
Sensitivity (V-peak): 5 Hz – 100 kHz, Accuracy:> 1.3 Vp
Sensitivity (V-peak): 100 kHz – 500 kHz, Accuracy:> 2.2 Vp
Sensitivity (V-peak): 500 kHz – 1 MHz, Accuracy:> 4.2 Vp
Audible continuity tester open circuit voltage: 0.4 V dc typical
Audible threshold : 65 O ±55 O

For complete specs please download the product datasheet under the “Resources” tab.

Includes: Amprobe PM51A Pocket Digital Multimeter

  • Measures ac and dc voltage, resistance, continuity w/ beeper, capacitance and frequency
  • Fully autoranging
  • Large oversize digital display
  • Data Hold

Accessories: Amprobe PM51A Pocket Digital Multimeter

  • Battery(installed),
  • Users manual
