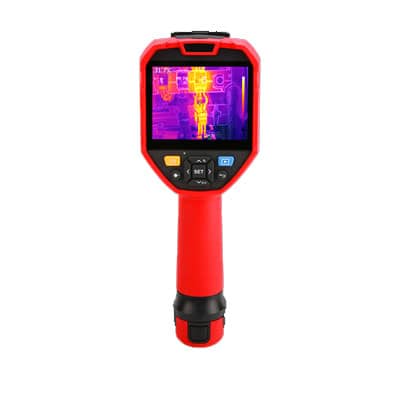

Name: UTi730V Professional Enhanced Thermal Camera
Brand: Uni-T
Availability: InStock

UTi730V Professional Enhanced Thermal Camera:

The UTi730V Professional Enhanced Thermal Camera is a cutting-edge device designed for precise thermal imaging in various applications. With advanced features and high-quality imaging capabilities, this camera offers unparalleled performance for professionals in fields such as building inspection, electrical maintenance, HVAC, automotive diagnostics, and more. V series features a 5MP digital camera and 3.5′ touch display screen to improve the working efficiency and imaging quality. Build-in laser ranging function meets the need to measure targets at a safe distance. In functions, video & voice recording and Wi-Fi live streaming are added to make the device more playable. It is a reliable measurement tool widely used in the industrial field.

It can be equipped with a macro lens UT-Z003 (Optional), the recommended distance is 4 cm.

Are you trying to find a good, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is the only business in Bangladesh offering testing supplies and tools. As a result, you may get the best shipping options and fair pricing on the tool you want from us in Bangladesh.

Key Features :

3.5″ IPS touch display screen (640×480 Pixels)
IR resolution: 320×240
Temperature measurement range: -40℃ to 400℃ / -40℉ to 752 ℉
Auto alarm for HI/LO temperature
Auto tracking for HI/LO spot
On-screen analyzer : 5 Points/1 Line/3 Rectangles/3 Circles
Isotherm
With 5MP digital camera
2x, 4x magnification
4 image modes (Thermal, Visual image, Fusion (T-Mix), PIP)
QR Code – photo management
Video & voice recording
Laser pointer & laser ranging
LED flashlight
Wi-Fi connection through Mobile App – Wi-Fi live streaming is supported
PC software: analysis and real-time image projection
5200mAh detachable battery pack (UT-M17)
IP54
2m drop-proof

Specifications:

Technical Data
Display	3.5″ IPS Touch (640×480)
IR resolution(Pixels)	320×240
Spectral range	8~14µm
Pixel size	12µm
Frame rate	≤9Hz
Thermal sensitivity(NETD)	≤65mK
Focus	Focus Free
Field of view(FOV)	56°(H) × 42°(V)
Temperature measurement range	-40℃~400℃
Accuracy	±2℃ or ±2% whichever is greater
Functions
Color palettes	White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava
Image modes	Thermal, Visual image, Fusion (T-Mix), PIP
On screen analyzer	5 Points/1 Line/3 Rectangles/3 Circles
Isotherm	Auto/Manual
Hi/Lo temperature alarm	LCD animation, LED flashlight, Buzzer
Hi/Lo temperature tracking	√
Digital camera resolution	5MP
Digital zoom	2x, 4x
Video recording	√
Voice recording	√
Wi-Fi	√
Wi-Fi live streaming	√
LED lighting	√
Laser pointer	√
Laser distance measurement	√
Analysis software	PC+APP
General Characteristics
Battery	5200mAh detachable Li-ion battery pack (UT-M17)
Operating time	≥4 hours (with Wi-Fi off)
USB	Type-C
Storage	32GB Micro SD card
Image storage format	JPG
Video storage format	AVI
Protection	IP54 & 2m drop proof
Certificates	CE, UKCA, FCC, RoHS
Languages	EN, FR, DE, IT, ES, SV, PL, CZ
Weight	654g
Dimension	260mm×97mm×99mm
Packing Details
Standard accessories	Type-C USB cable, Micro SD card, Li-ion battery pack×2, Quick Start Guide, Documents Download Operation Guide
Standard individual packing	Toolbox & Gift box
Standard Qty per carton	1pcs
Standard carton size	400mm×185mm×345mm
Standard carton G.W.	4kg
