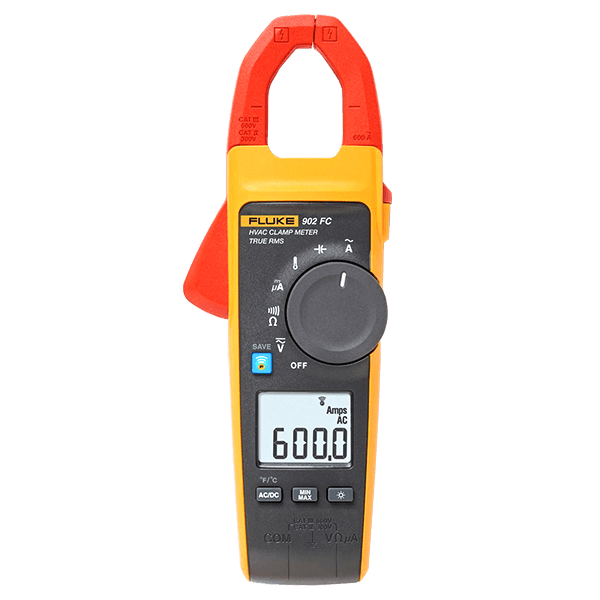

Model: Fluke 902 FC True-RMS HVAC Clamp Meter

\Fluke 902 FC True-RMS HVAC Clamp Meter the top class and brand new Fluke Clamp Meter that you can depend on.

The Fluke 902 FC Clamp Meter, following Fluke Connect wireless connectivity, can in the future HVAC technicians embellish productivity in the arena. The rugged dual-rated CAT III 600 V, CAT IV 300 V meter equips you to statute many valuable HVAC systems.

Measurements: microamps for scrutiny pilot fresh sensors; resistance taking place to 60 k; AC current and AC/DC voltage; capacitance; and associations temperature, all together amid just one tool. Plus its little form factor makes it comprehensible to hang upon to and navigate in tight be roomy spaces.

Other useful features:

Ergonomic design fits in your hand and can be used while wearing personal protective equipment
Large, easy-to-read backlit display improves readings in low light settings
Connects to your smartphone via Fluke Connect so you can read measurements at a safer distance
Measures AC current to 600 A and AC and DC voltage to 600 V
Measures capacitance to 1000 µF and DC current to 200 µA
Measures temperature from -10 °C to 400 °C (14 °F to 752 °F)
Offers True-RMS voltage and current measurements to accurately measure non-linear signals
Measures resistance to 60 kΩ
Offers Min/Max recording to capture variations automatically
Runs on two AA alkaline batteries

A professional engineer always wants to use the Fluke tool because of the 100% accurate result that is possible to get. Buy now from Tools Bangladesh with the best price in Bangladesh.

Key features: Fluke 902 FC True-RMS HVAC Clamp Meter

A wireless Fluke Connect®-enabled clamp meter designed specifically for the needs of HVAC technicians
Offers 200 µA DC current measurements to measure flame rod
Extends resistance range to measure thermistors up to 60kΩ
Captures flue gas temperature
Measures start and run motor capacitors
Measures variable frequency drive performance

Specifications: Fluke 902 FC True-RMS HVAC Clamp Meter

Function
A ac (via Jaw)
	Resolution	0.01/0.1 A
	Accuracy	2.0% ±5 digit (45-65 Hz)
	Accuracy	2.5% ±5 digit (65-400 Hz)
	Range	60.00/600.0 A
	Crest Factor (50Hz or 60Hz)	2.5 MIN@220 A 3.0 MIN@180 A > 1.4 MIN@600 A Add 2% for CF>400 A
V ac	Crest Factor (50Hz or 60Hz)
	Resolution	0.1 V
	Accuracy	1.5% ±5 digits
	Range	600.0 V
V dc
	Resolution	0.1 V
	Accuracy	1.5% ±5 digits
	Range	600.0 V
Ohms
	Resolution	0.1/1/10
	Accuracy	1% ±5 digits
	Range	600/6000/60.00 kΩ
Capacitance
	Resolution	0.1/1 µF
	Accuracy	1% ±4 digits
	Range	100.0/1000 µF
µA
	Resolution	0.1 µA
	Accuracy	1% ±5 digits
	Range	200 µA
Contact temperature
	Resolution	0.1 C/F
	Accuracy	1% ±8 digits
	Range	-40 to 400 °C (-40 °F to 752 °F)
Continuity beeper
	Beeper volume	75 dBA nom. 15 cm. from case front
	On threshold	<=30 Ω
Mechanical and General Specifications
Maximum voltage between any terminal and earth ground	1000 V
Battery type	2 AA alkaline batteries, NEDA 15A, IEC LR6
Temperature	Operating: -10 °C to +50 °C (14 °F to +122 °F) Storage: -40 °C to +60 °C (-40 °F to +140 °F)
Operating humidity	Non condensing (< 10 °C [50 °F]), ≤90 % RH (at 10 °C to 30 °C [50 °F to 86 °F]), ≤75 % RH (at 30 °C to 40 °C (86 °F to 104 °F)), ≤45 % RH (at 40 °C to 50 °C (104 °F to 122 °F))
Altitude	Operating: 3,000 m (9,842 ft) Storage: 12,000 m (39,370 ft)
Dimensions	230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in)
Weight (meter only)	419 g (15 oz)
Safety	IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
IP Rating	IEC 60529: IP30, non-operating
Radio Frequency Certification	FCC ID:T68-FBLE IC:6627A-FBLE
Electromagnetic Compatibility (EMC)	International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Temperature coefficients	Add 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C
