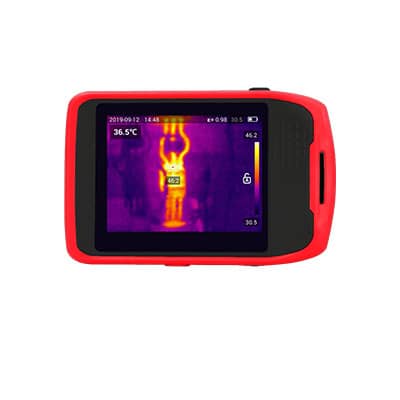

UTi120T Pocket-sized Thermal Camera:
UTi120T is a pocket-sized and compact thermal camera, it can be easily put into a pocket, which is very portable for users. Its 3.5’’ large LCD touchable display screen is convenient for users to operate easily. It can automatically track the objective’s temperature from -20℃~400℃. It also supports a Wi-Fi connection through the UNI-T Mobile App. With a UTi120T thermal camera in their pocket, users will be ready anytime to diagnose electrical, mechanical, and building problems and other potential issues.
Are you trying to find a great, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Specification:
| Technical Data |
| IR resolution (Pixels) |
120×90 |
| Display |
3.5” TFT Touch (320×240) |
| Field of view(FOV) |
50°×38° |
| Thermal sensitivity(NETD) |
≤60mK |
| Spatial resolution(IFOV) |
7.6mrad |
| Frame rate |
≤25Hz |
| Spectral range |
7.5~14µm |
| Focus |
Focus Free |
| Temperature measurement range |
-20℃~400℃ |
| Accuracy |
±2℃ or ±2% whichever is greater |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Color palettes |
6
(White hot, Black hot, Ironbow, Hot iron, Arctic,Medical) |
| Image modes |
Thermal,Visual image,Fusion,PIP |
| On screen analyzer |
1 Point/1 Rectangle |
| Digital camera resolution |
640×480 |
| Digital zoom |
1.0~8× continuous |
| Hi/Lo temperature alarm |
Icon,LED flashlight |
| PC software analysis |
√ |
| Wi-Fi |
√ |
| General Characteristics |
| Battery |
Fixed Li-ion battery (3.7V 5000mAh) |
| Battery operation time |
≥2 hours (with Wi-Fi off) |
| USB |
Type-C |
| IP rating |
IP54 |
| Drop proof |
1m |
| Storage |
4GB Internal |
| Image/Video storage format |
JPEG |
| Certificates |
CE,FCC,RoHS |
| Product net weight |
212g |
| Product size |
205mm×124mm×65mm |
| Packing Details |
| Standard accessories |
Hand strap, Carrying Bag, Micro SD card, Type-C USB cable, English manual, Documents download operation guide card |
| Standard individual packing |
Gift box |
| Standard Qty per carton |
5 |
| Standard carton size |
370mm×250mm×170mm |
| Standard carton G.W. |
3.6kg |
