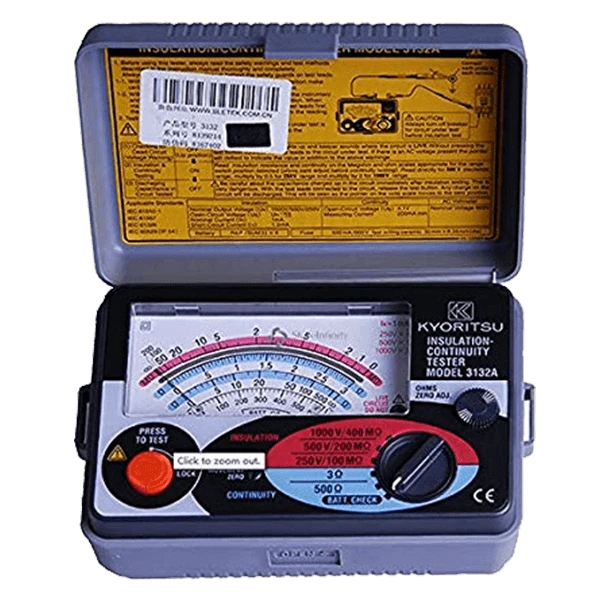

Kyoritsu 3132A is a little and lightweight analog insulation and continuity tester. With an AC voltage range of 600V, the Kyoritsu 3132A is able to examine insulation resistances using test voltages uphill to 1000V. A 1mA rated exam current can be utilized at minimum resistance, as dexterously as a 200mA measuring current as regards continuity chemical analysis
Features
Key Features: Kyoritsu 3132A Analogue Insulation Testers
•Dust and drip-proof construction. (designed to IEC 60529 IP54)
•Designed to meet IEC 61010-1 and IEC 61557 safety standards.
•1mA rated test current at the minimum resistance.
•200mA measuring current on continuity testing.
•Automatic discharge of circuit capacitance.
(Any charge stored in the circuit under test will be automatically discharged after testing.)
•Live circuit warning buzzer and neon lamp.
•Small and lightweight. Shock resistant new case material.
•AC voltmeter with linear, easy-to-read scale.
•Operates on AA, R6 × 6 dry batteries.
Specifications
Specifications: Kyoritsu 3132A Analogue Insulation Testers
Safety Standard |
IEC 61010-1 CAT III 600V Pollution Degree 2 IEC 61010-2-031 IEC 61557-1/2/4 |
IP Rating |
IEC 60529-IP54 |
EMC Standard |
IEC 61326-1 |
Power source |
R6 (AA) (1.5V) × 6 |
Dimensions |
106(L) × 160(W) × 72(D)mm |
Weight |
560g approx. |
Included Accessories |
7122B (Test leads) Pouch for test leads 8923 (F500mA/600V fuse) × 2 R6 (AA) × 6 9121 (Shoulder Strap) Instruction Manual |
