Name: Sanwa CD800a3 Digital Multimeter
Brand: Sanwa
Availability: OutOfStock

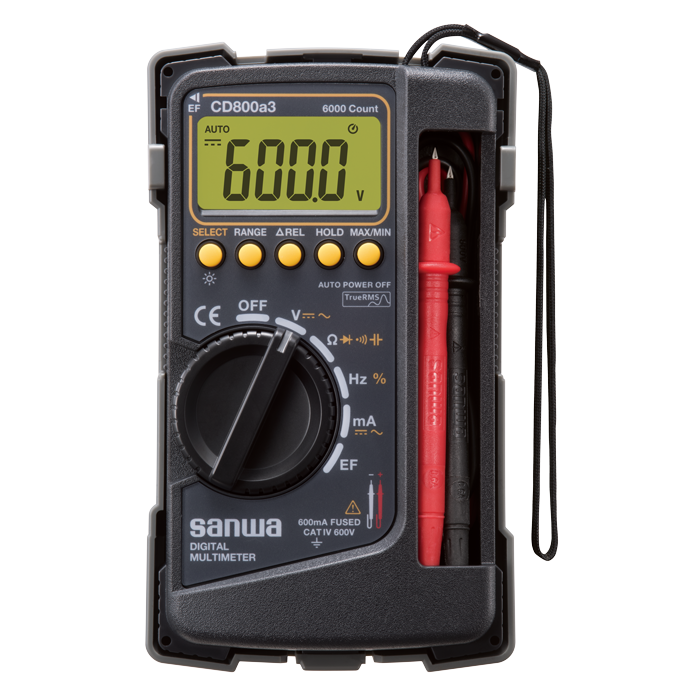

Sanwa CD800a3 Digital Multimeter

The Sanwa CD800a3 Digital Multimeter is a highly reliable and advanced measuring instrument, designed for professionals, technicians, and engineers who need accurate and consistent results. Known for its precision, durability, and user-friendly design, this multimeter is perfect for a wide range of electrical and electronic testing applications.

With features like True RMS measurement, auto-ranging function, and a large backlit LCD display, the Sanwa CD800a3 ensures accurate readings even in complex electrical systems. It supports multiple measurements such as AC/DC voltage, current, resistance, continuity, diode testing, frequency, and capacitance. The compact design makes it portable and easy to use, while the robust build ensures long-lasting performance in both industrial and field environments.

If you are looking for a high-performance digital multimeter that guarantees safety and efficiency, the Sanwa CD800a3 is an ideal choice. This device comes with safety compliance standards, making it suitable for both beginners and professionals in the electrical and electronics field.

At Tools Bangladesh, we are committed to bringing you the best electrical testing tools at the most competitive prices. We proudly offer the Sanwa CD800a3 Digital Multimeter Price in Bangladesh at an affordable range, ensuring that our customers get the best value for their investment. Whether you are working on installations, troubleshooting, or regular maintenance, this tool will be your trusted partner.

Buy the Sanwa CD800a3 Digital Multimeter today from Tools Bangladesh and experience professional-grade accuracy at the best market price. Shop with confidence, knowing you’re getting original products, reliable after-sales support, and fast delivery all over Bangladesh.

Key Features

6000 count
True RMS
0.7 best accuracy (DCmV)
Max/Min value hold
Data hold, Range hold, Relative function
EF (Electric Field) sensing
Auto power off (30min.)(cancelable)

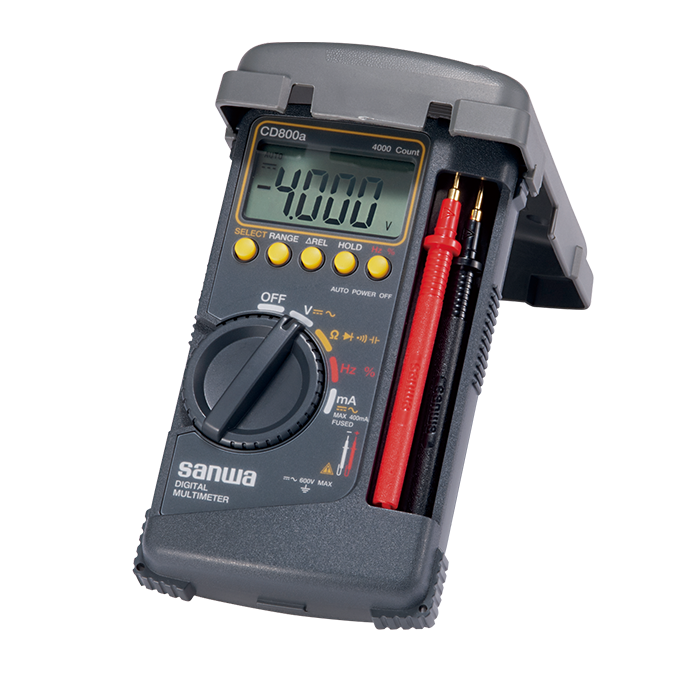

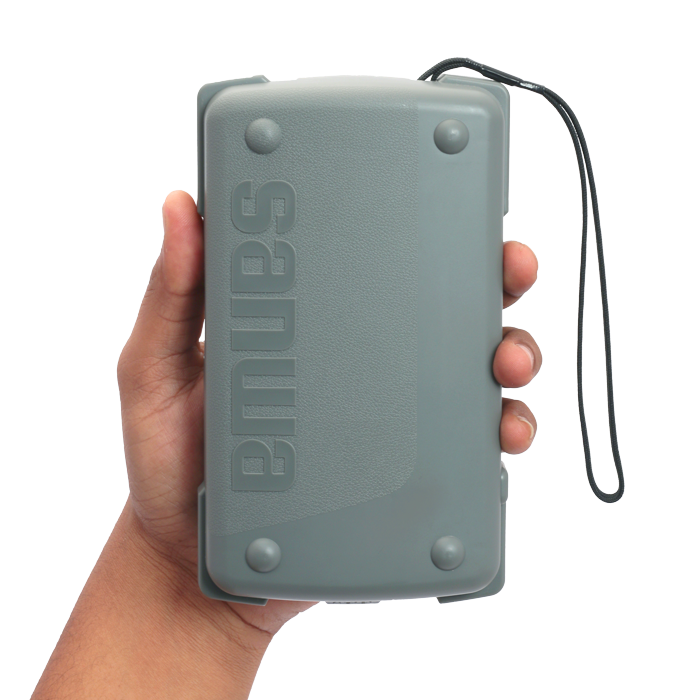

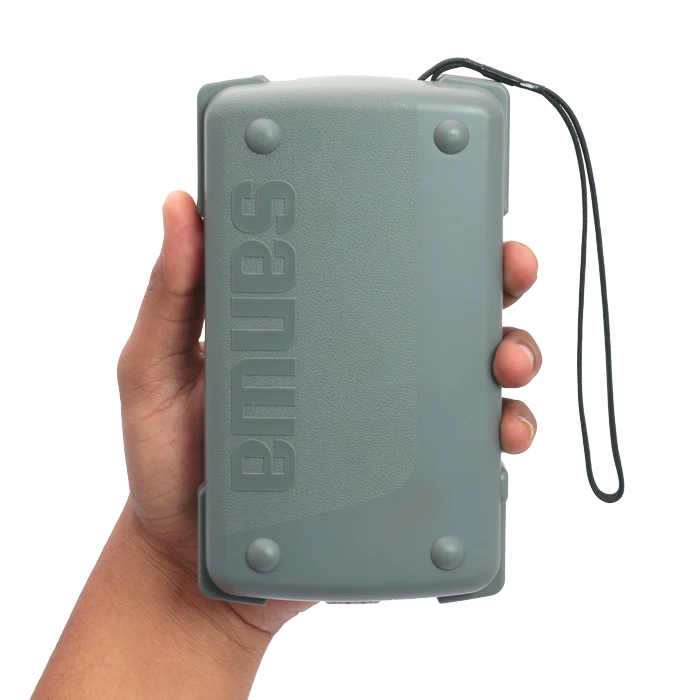

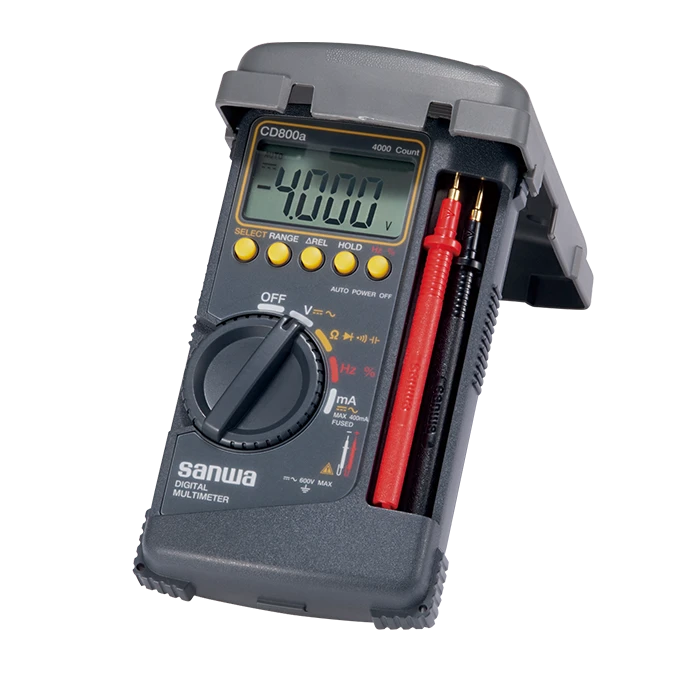

Body cover for protection and as a tilt stand
Back light
Chip holder behind the body cover

Specifications

CD800a3	Measuring range	Best accuracy	Resolution	Input impedance
DCV	600m/6/60/600V	±(0.7%+3)	0.1mV	10MΩ
ACV	6/60/600V	±(1.6%+5)	0.001V	10MΩ
DCA	60m/600mA	±(2.2%+5)	0.01mA
ACA	60m/600mA	±(2.8%+5)	0.01mA
Resistance	600/6k/60k/600k/6M/60MΩ	±(1.2%+5)	0.1Ω
Capacitance	60n/600n/6μ/60μ/600μ/6mF	±(5%+10)	0.01nF
Frequency	9.999/99.99/999.9/9.999k/99.99kHz	±(0.5%+3)	0.001Hz
Duty cycle	20%～80%	±(0.5%+5)	0.1%
Continuity	Buzzer sounds at 39-60Ω or less. Open voltage: approx. 0.4V
Diode test	Open voltage: approx. 3V
EF detection	Detects ACV and EF of approx. 90V or more

Display	numeral display 6000/9999(Hz function)
Sampling rate	3 times/sec.
Bandwidth	40-400Hz
Fuse	0.6A/600V 10kA Φ6.3×32mm Ceramic
Battery	R6x2
Battery life	Approx.650h at DCV
Size/Mass	H176×W104×D46mm/Approx. 340g
Test lead length/Pin tip	Length: approx. 0.77m/19mm
Safety standards	IEC61010 CAT.IV 600V
