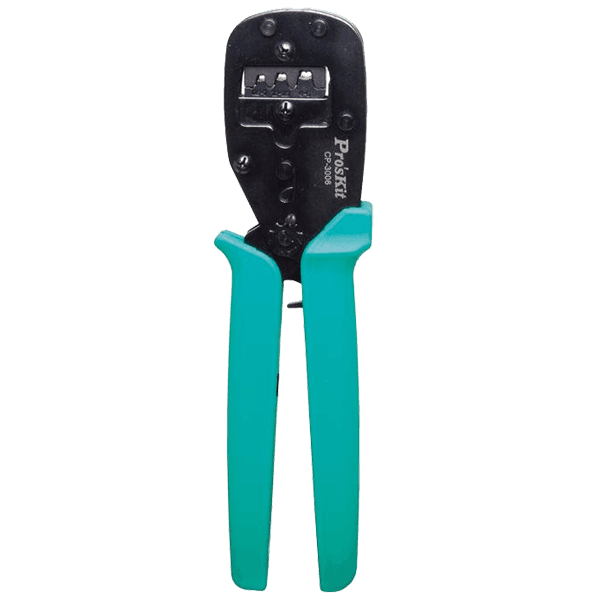

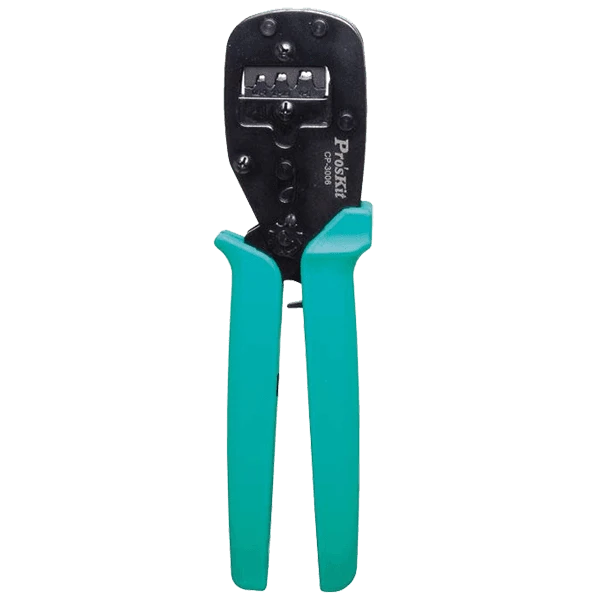

Key Features: Proskit CP 3006FD46 Parallel Action Crimping Tool

• Reliable: Parallel action crimping performance is consistent and accurate
• Practical: Safety crimp release helps eliminate rejected terminations due to incorrect positioning.
• Comfortable: Ergonomically shaped non-slip TPR handle for comfortable use in all conditions
• Versatile: Interchangeable die sets for wide range of applications.

Specifications: Proskit CP 3006FD46 Parallel Action Crimping Tool

Model No.	DIE Set	Crimp die profile	Application	Terminails
CP-3006F			Frame only
CP-3006FD2			Non insulated open barrel connectors, commercial type AWG 20-18/16-14/12-10 DIN 0.5-1.0/1.5-2.5/4.0-6.0 mm2  JIS 0.35-0.9/1.25-2.0/3.5-5.5 mm2
CP-3006FD18			Pin terminal insulated or non-insulated ferrules, cord end terminals AWG 22/20/18/16/14/12 DIN 0.5/0.75/1.0/1.5/2.5/4.0 mm2 JIS 0.35/0.5/0.9/1.25/2.0/3.5 mm2
CP-3006FD36			Non-insulated open barrel connectors &D-SUB V.35 contact pins AWG 30-24/22-18 DIN 0.05-0.25/0.50-1.0 mm2 JIS 0.05-0.25/0.35-0.9 mm2
CP-3006FD45			Non-insulated open barrel connectors AWG 22-18/16-14/12-10 DIN 0.5-1.0/1.5-2.5/4.0-6.0 mm2 JIS 0.5-0.9/1.25-2.0/3.5-5.5 mm2
CP-3006FD46			Insulated open barrel connectors commercial type AWG 22-18/16-14 DIN 0.5-1.0/1.5-2.5 mm2 JIS 0.5-1.0/1.25-2.0 mm2
CP-3006FD47			Insulated open barrel connectors commercial type AWG 20-18/16-14/12-10 DIN 0.5-1.0/1.5-2.5/4.0-6.0 mm2 JIS 0.5-1.0/1.25-2.0/3.5-5.5 mm2
CP-3006FS1			For MC 3 solar connector (Multi-Contact)& 2.5/4.0/6.0 mm2  (AWG 14/12/10) solar cable AWG 14/12/10 DIN 2.5/4.0/6.0 mm2
CP-3006FS2			For MC 4 solar connector (Multi-Contact)& 2.5/4.0/6.0 mm2(AWG 14/12/10) solar cable AWG 14/12/10 DIN 2.5/4.0/6.0 mm2
