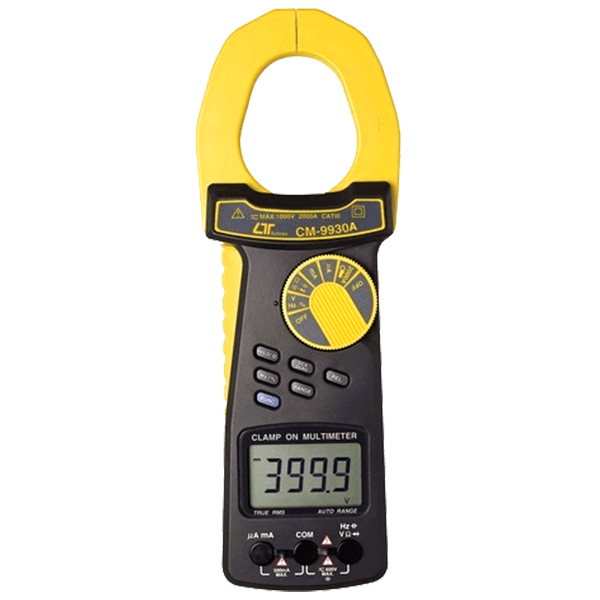

Lutron CM 9930 Clamp Meter is a two in one clamp meter with multimeter functions & true RMS reading for AC. Overload protection is on all ranges. It incorporates many multimeter functions and has wide jaw opening for large size cables to 65mm. It features auto-ranging and is water-resistant
Key Features: Lutron CM 9930 Clamp Meter
- 2 in 1, 2000 A Clamp Meter + Digital Multimeter
- Meet IEC 1010 CATIII 1000 V Safety Requirement
- True RMS Reading for ACV and ACA Measurement
- 4000 Counts, Auto Range Multi-functions for ACA, DCA, ACV, DCV, Ohms, Capacitance, Hz, Diode, Duty Cycle, and Continuity Check
- LSI Circuit Provide high Reliability and Durability
- Wide Range Clamp-on Current Measurement
- 4 Range direct current Input measurement for ACA and DCA
- Overload Protections circuit is provided for all range
- Data Hold, Relative Key, Back Light
Specificatons: Lutron CM 9930 Clamp Meter
SKU: ME.EL.DI6.330263
Type of Product: Digital AC/DC Clamp Meter
Sensing: True RMS
Display: 15 mm, 4 Digits LCD Display
Display Counts: 5000
Jaw Opening Size: 60 mm
DC Current Range: 0-2000 A
DC Current Accuracy: ±(2.0 % ± 8 Digits)
DC Voltage Range: 400 mV-1000 V
DC Voltage Accuracy: ±(1.0 % ± 2 Digits)
AC Current Range: 0-1000 A
AC Current Accuracy: ±(2.0 % ± 8 Digits)
AC Current Resolution: 0.1 A / 1 A
AC Voltage Range: 0-1000 V
AC Voltage Accuracy: ±(1.2 % ± 5 Digits)
Resistance Accuracy: ±(3.5 % ± 5 Digits)
Capacitance Range: 50 nF-50 µF
Capacitance Accuracy: ±(3.0 % ± 5 Digits)
Frequency: 5 Hz-500 kHz
Frequency Accuracy: ±(1.0 % ± 5 Digits)
Power: 9 V Battery Alkaline Type
Operating Environment: 0° to 50°C
Relative Humidity: < 80% RH
Weigh: 380 g
Dimensions: 255x73x38 mm
Includes: Operational Manual, Test leads ( Red & Black), Fuse
Max. DC Current Range: Above 1000 A
Max. DC Voltage Range: 601-1000 V
Max. AC Current Range: 601-1000 A
Max. AC Voltage Range: Above 750 V
Model No: CM-9930
Resistance Range (Ohm): 0-40 MΩ
Accessories: Lutron CM 9930 Clamp Meter
- Carrying Case ,
- Temperature Adapter ,
- Light Adapter ,
- Anemometer Adapter ,
- Pressure Adapter ,
- RH Adapter ,
- Tachometer Adapter ,
- High Voltage Probe
