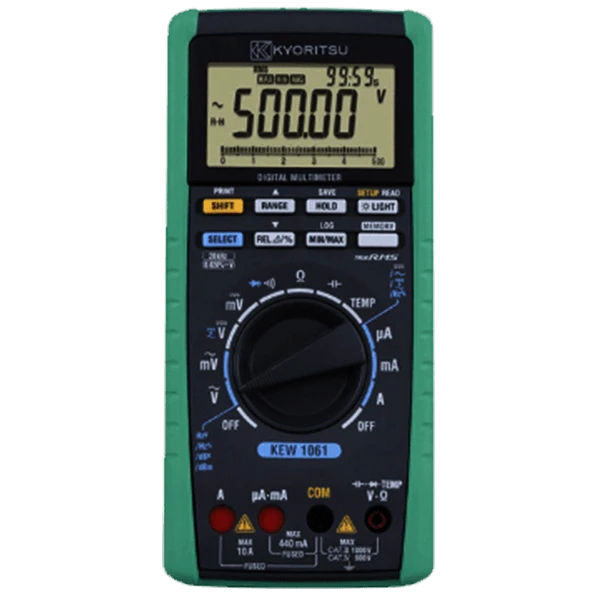

Kyoritsu KEW 1061 Digital Multimeters is rugged and reliable and the Kyoritsu KEW 1061 Digital Multimeters Find many great new & used options and get the best deals for O17 Kyoritsu Kew 1061 Digital Multimeter Standard Model at the best online prices with free delivery anywhere in Bangladesh.
Key Features: Kyoritsu KEW 1061 Digital Multimeters
0.02% basic DC accuracy
• Large display with 50,000 counts
• Dual display for the double indication for AC and DC, V and Hz, etc.
• True-RMS Measurements AC and AC+DC
• Fast Peak Hold response time of 250µs
• Complies with IEC 61010-1 CAT IV 600V, CAT III 1000V
• Terminal shutter to prevent incorrect test leads' insertion in current terminals
• Very wide operating temperature range from -20 to 55ºC
• Large data internal memory
KEW 1061: 1,000 data (logging), 100 data (manual)
• Download data and Live Monitoring on a PC via the USB interface
(Option for USB Communication set)
* MAX 32,767 data can be transferred.
Specifications: Kyoritsu KEW 1061 Digital Multimeters
| DC V |
50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V
(Input impedance: Approx. 100MΩ [50/500/2400mV], 10MΩ [5/50/500/1000V])
±0.02%rdg±2dgt (Basic accuracy) |
| AC V [RMS] |
500.00mV/5.0000/50.000/500.00/1000.0V
(Input impedance: 11MΩ<50pF [50/500mV/5V], 10MΩ<50pF [50/500/1000V])
±0.7%rdg±30dgt (Basic accuracy) |
| DCV+ACV |
5.0000/50.000/500.00/1000.0V
(Input impedance: 11MΩ<50pF [5V], 10MΩ<50pF [50/500/1000V])
±1%rdg±10dgt (Basic accuracy) |
| DC A |
500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
±0.2%rdg±5dgt (Basic accuracy) |
| AC A [RMS] |
500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
±1%rdg±20dgt (Basic accuracy) |
| DCA+ACA |
500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
±1.5%rdg±10dgt (Basic accuracy) |
| Ω |
500.00Ω/5.0000/50.000/500.00kΩ/5.0000/50.000MΩ
±0.1%rdg±2dgt (Basic accuracy) |
| Continuity buzzer |
500.0Ω (The buzzer turns on for resistances lower than 100±50Ω) |
| Diode test |
2.4000V ±1%rdg±2dgt
Open curcuit voltage: <5V (Approx. 0.5mA Measuring Current) |
| Capacitance |
5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF
±1%rdg±5dgt (Basic accuracy) |
| Frequency |
2.000 - 9.999/9.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz
±0.02%rdg±1dgt (Basic accuracy) |
| DUTY |
10 - 90% ±1%rdg |
| Temperature |
-200 - 1372ºC ±1%rdg±1.5ºC
-328 - 2501.6ºF ±1%rdg±2.0ºF
(with the use of K-type Temperature probe) |
| Measurement functions |
DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature, Capacitor, Duty cycle ratio, Decibel (dBV, dBm), Continuity Check, Diode Test |
| Other functions |
Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN), Average value (AVG), Zero Adjustment (Capacitor, Resistance), Relative values, Save to Memory, LCD backlight |
| Applicable standards |
IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2,
IEC 61010-031, IEC 61326-1 (EMC) |
| Power source |
R6 (1.5V)×4 (Auto power off: approx. 20 minutes) |
| Dimensions |
192(L)×90(W)×49(D) mm |
| Weight |
Approx. 560g (including batteries) |
| Included Accessories |
7220A (Test leads), R6×4, Instruction manual,
8926 (Fuse [440mA/1000V])×1 (included)
8927 (Fuse [10A/1000V])×1 (included) |
