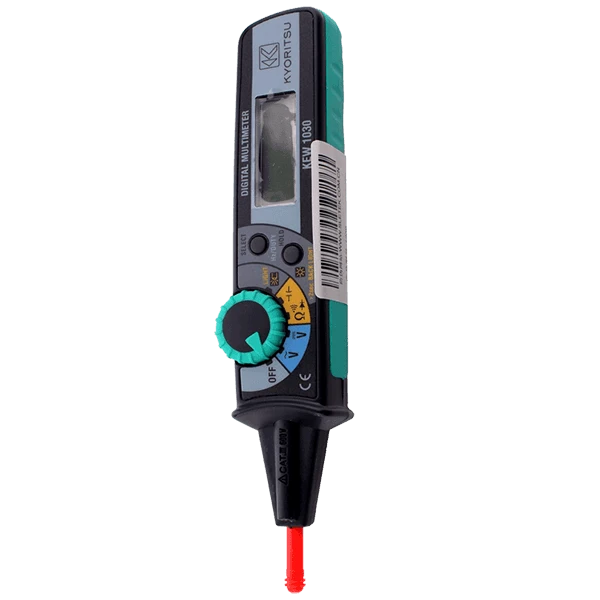

Kyoritsu KEW 1030 Digital Multimeters is a rugged and reliable tool. The Kyoritsu KEW 1030 Digital Multimeters is Well-suited for a poorly illuminated work environment through the penlight and LCD display. This text is machine translated.
Features
Key Features: Kyoritsu KEW 1030 Digital Multimeters
• Compact in Size, Light in Weight and Simple in Use.
• Double molding provides a comfortable and good feeling in hand.
• Penlight illuminates brightly the point to be measured, even in a dark place.
• Backlight LCD is highly visible, even in darkness.
• Unique wrapping mechanism for test lead in the rear side compartment.
• Unique protection mechanism for the test prod for safety.
• All ranges including the Ohm range are protected against an overload voltage of 600V.
Specifications
Specifications: Kyoritsu KEW 1030 Digital Multimeters
| DC V |
400m/4/40/400/600V (5 Range auto)
±0.8%rdg ±5dgt(400mV - 400V)
±1.0%rdg ±5dgt(600V) |
| AC V |
4/40/400/600V (4 Range auto)
±1.3%rdg ±5dgt (4/40V) (50/60Hz)
±1.6%rdg ±5dgt (400/600V) (50/60Hz) |
| Ω |
400/4k/40k/400k/4M/40MΩ (6 Range auto)
±1.0%rdg ±5dgt (400Ω - 4MΩ)
±2.5%rdg ±5dgt (40MΩ) |
| Continuity buzzer |
Buzzer sounds when resistance is 120Ω or less. |
| Diode test |
Test voltage approx. 0.3 - 1.5V |
| Capacitance |
50n/500n/5µ/50µ/100µF (5 Range auto)
±3.5%rdg ±10dgt (50nF)
±3.5%rdg ±5dgt (500n - 50µF)
±4.5%rdg ±5dgt (100µF) |
| Frequency |
5/50/500/5k/50k/200kHz
±0.1%rdg ±5dgt (Measurable input: 1.5Vrms or more) |
| DUTY |
0.1 - 99.9%
±2.5%rdg ±5dgt (Pulse width / Pulse cycle) |
| Measurement functions |
The measured value can be hold by pressing Data hold button |
| Other functions |
When the battery voltage drops to 2.4V±0.2V or less
Built-in |
| Applicable standards |
IEC 61010-1: 2001 CAT III 600V
IEC 61010-031
IEC 61326-1 |
| Power source |
Button type battery LR44 (SR44)1.5V × 2 |
| Dimensions |
190(L) × 39(W) × 31(D)mm |
| Weight |
Approx. 100g (including batteries |
| Included Accessories |
Carrying case, LR44 (1.5V) × 2, Instruction manual |
