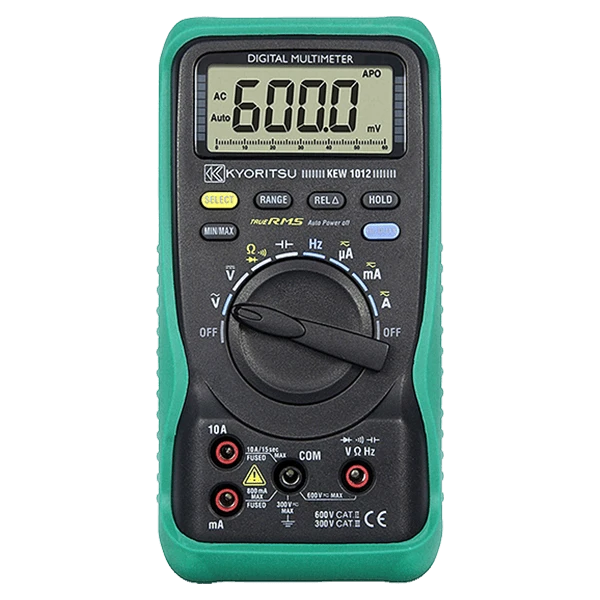

Kyoritsu KEW 1012 Digital Multimeters is rugged and reliable tool. This is the REL(relative value) function to indicate the measurement variation. Digital Multimeters KEW 1012 is True RMS can measure and indicate distorted waveforms.
Key Features: Kyoritsu KEW 1012 Digital Multimeters
• True RMS can measure and indicate distorted waveforms
• 6040 counts with Bar Graph display
• MIN/MAX function enables to record min & max value
• REL(relative value) function to indicate the measurement variation
Specifications: Kyoritsu KEW 1012 Digital Multimeters
| DC V |
600.0mV/6.000/60.00/600.0/600V
(Input Impedance: 10MΩ, 100MΩ only 600mV) ±0.5%±2dgt (600.0mV/6.000/60.00/600.0V) ±0.8%±3dgt (600V) |
| AC V |
6.000/60.00/600.0/600V
(Input Impedance: 10MΩ) ±1.5%±5dgt
(6.000V) ±1.2%±3dgt (60.00/600.0V) ±1.5%±5dgt (600V) |
| DC A |
600/6000µA/60/600mA/6/10A ±1.2%±3dgt (600/6000µA/60/600mA) ±2.0%±5dgt (6/10A) |
| AC A |
600/6000µA/60/600mA/6/10A ±1.5%±4dgt (600/6000µA/60/600mA) ±2.2%±5dgt (6/10A) |
| Ω |
600Ω/6/60/600kΩ/6/60MΩ ±1.0%±2dgt
(600Ω/6/60/600kΩ/6MΩ) ±2.0%±3dgt (60MΩ) |
| Continuity buzzer |
0 - 600Ω (Buzzer sounds below 100Ω) |
| Diode test |
2.8V Release Voltage:Approx. 0.4mA Test Current |
| Capacitance |
40/400nF/4/40/400/4000µF |
| Frequency |
10/100/1000Hz/10/100/1000kHz/10MHz |
| DUTY |
0.1 - 99.9% (Pulse width/Pulse period) ±2.0%±2dgt (- 10kHz) |
| Applicable standards |
IEC 61010-1 CAT III 300V Pollution degree 2
IEC 61010-1 CAT II 600V Pollution degree 2
IEC 61010-031
IEC 61326 |
| Display |
6040 Counts |
| Power source |
R6 (1.5V) × 2 (Auto-power-OFF within 15 minutes) |
| Dimensions |
161(L) × 82(W) × 50(D)mm |
| Weight |
Approx. 280g |
| Included Accessories |
7066A (Test leads)
0.8A/600V (Ceramic Fuse) × 1built-in
10A/600V (Ceramic Fuse) × 1built-in
R6 × 2
Instruction Manual |
| Optional Accessories |
7234 (Crocodile clip test lead)
9095 (Carrying case) |
