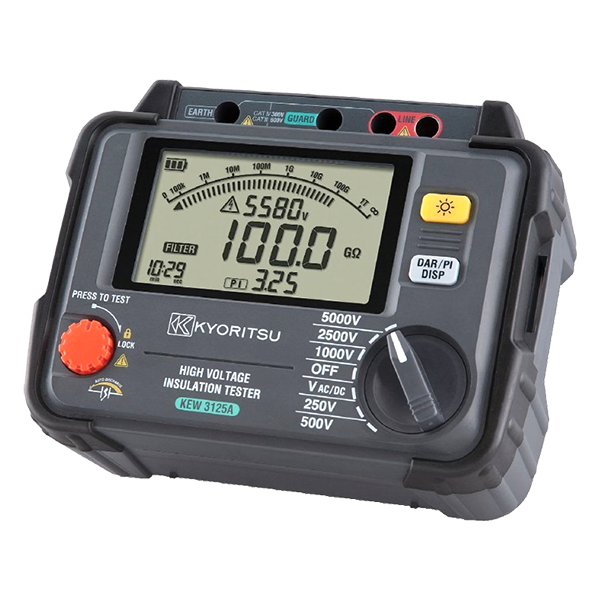

kyoritsu 3125A High Voltage Insulation Testers
Supplier: TMI Biotech Corporation
Brand: Kyoritsu
Category: Insulation, Resistance And Battery
Sub Category: Insulation Resistance Tester
Out of Stock Ask for Pricekyoritsu 3125A High Voltage Insulation Testers Digital High Voltage Insulation Testers. This tester easily can measure Insulation Resistance up to 1TΩ. The main things about this tester always provide an accurate result.
kyoritsu 3125A High Voltage Insulation Testers rugged, reliable & accurate tools for your workspace. We always provide reliable tools. We not only provide the best tools but also we provide free delivery anywhere in Dhaka.
Features
Key Features: kyoritsu 3125A High Voltage Insulation Testers
• Insulation Resistance up to 1TΩ
• Short-Circuit Current up to 1.5mA
• Wide Test Voltage from 250V to 5000V
• Diagnosis Function of PI and DAR
• Newly-designed alligator clip
• It comes with a tough hard case
• Filter function reduces noise interference for obtaining stable measurement
• Large display with Bar Graph indication and backlight
• Live voltage warning
• Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V
Specifications
Specifications: kyoritsu 3125A High Voltage Insulation Testers
Insulation resistance
Rated voltage | 250V | 500V | 1000V | 2500V | 5000V | |
---|---|---|---|---|---|---|
Accuracy | 0.0 - 100.0MΩ | 0.0 - 99.9MΩ 80 - 1000M Ω |
0.0 - 99.9MΩ 80 - 999MΩ 0.80 - 2.00G Ω |
0.0 - 99.9MΩ 80 - 999MΩ 0.80 - 9.99GΩ 8.0 - 100.0GΩ |
0.0 - 99.9MΩ 80 - 999MΩ 0.80 - 9.99GΩ 8.0 - 99.9GΩ 80 - 1000GΩ |
|
±5%rdg±3dgt | ±5%rdg±3dgt | ±5%rdg±3dgt | ±5%rdg±3dgt | ±5%rdg±3dgt ±20%rdg (100GΩ or more) |
||
Short circuit current | 1.5mA | |||||
Output voltage | ||||||
Accuracy | ±10% | -10 - +20% | 0 - +20% | |||
Monitor | ±10%rdg±20V |
Voltage measurement
Measuring range | AC: 30 - 600V (50/60Hz), DC: ±30 - ±600V |
---|---|
Accuracy | ±2%rdg±3dgt |
General
Applicable standards | IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2 |
---|---|
Power source | DC12V : LR14/R14 × 8pcs |
Dimensions | 177 (L) × 226 (W) × 100 (D) mm 300 (L) × 315 (W) × 125 (D) mm (Hard case) |
Weight | 3125A: 1.9kg approx. (including batteries) 4kg approx. (including accessories) |
Included Accessories | 7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m), 8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case), LR14 (Alkaline battery size C) × 8, Instruction manual |
Optional Accessories | 7168A (Line probe with alligator clip: 3m), 7253 (Longer line probe with alligator clip: 15m), 8302 (Adaptor for recorder) |
Includes
Includes: kyoritsu 3125A High Voltage Insulation Testers
- kyoritsu 3125A High Voltage Insulation Testers
Accessories
Accessories: kyoritsu 3125A High Voltage Insulation Testers
- Adaptor For Recorder
- Longer Line probe with alligator clip
- Line probe with alligator clip
- Carrying case [Hard]
- Hook type prod
- Guard cord
- Earth cord
- Line Probe
