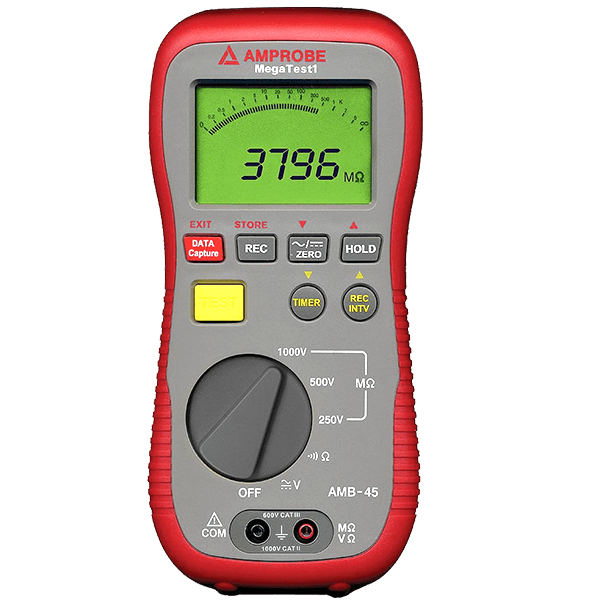

Amprobe AMB-45 Insulation Resistance Tester is the Best Programmable timer to perform the dielectric absorption ratio test. This is the always best rugged and reliable for the test point.
Amprobe AMB-45 test insulation of wires, cables, transformers, and electrical motors quickly and easily with this rugged tester.
Tools Bangladesh is the only way to get an original product in Bangladesh. You never mistake and as soon as possible you collect from Tools Bangladesh because product stock limited.
Features
Key Teatures: Amprobe AMB-45 Insulation Resistance Tester
- Tests insulation of wires, cables, transformers and electrical motors
- Comes as a complete kit including test leads and PC software
- Selectable test voltages 250V, 500V and 1000V
- Programmable timer to perform the dielectric absorption ratio test
- Sensitive Ohmmeter for checking resistance of motor windings
- Built in voltmeter
- Fast and easy to use, rugged durable design
- Internal memory to store measurements for future reference
- Data download to PC
Specifications
Specifications: Amprobe AMB-45 Insulation Resistance Tester
| Insulation resistance (100 V DC) |
– |
| Insulation resistance (250 V DC) |
4.000 MO, 40.00 MO, 400.0 MO, 4000 MO |
| Insulation resistance (500 V DC) |
4.000 MO, 40.00 MO, 400.0 MO, 4000 MO |
| Insulation resistance (1000 V DC) |
4.000 MO, 40.00 MO, 400.0 MO, 4000 MO |
| Resistance (9 V) |
400.0 MO, 4000 O |
| Voltage AC/DC |
600.0 V |
For complete specs please download the product datasheet under the “Resources” tab.
Includes
Includes: Amprobe AMB-45 Insulation Resistance Tester
- Tests insulation of wires, cables, transformers, and electrical motors
- Comes as a complete kit including test leads and PC software
- Selectable test voltages: 250V, 500V and 1000V
- Programmable timer to perform the Dielectric Absorption Ratio Test
- Built-in voltmeter
- Data download to PC
Accessories
Accessories: Amprobe AMB-45 Insulation Resistance Tester
Test leads,
Users manual,
Batteries(installed),
Carrying case,
Software & download cable
