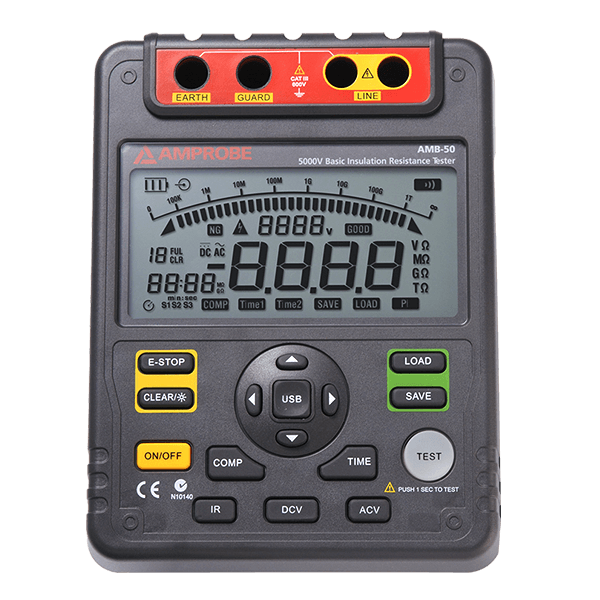

Amprobe AMB-50 Industrial High-Voltage Insulation Tester
Supplier: Iconic Engineering Limited
Brand: Amprobe
Category: Mechanical & Maintenance
Sub Category: Insulation Resistance Tester
Out of Stock Ask for PriceAmprobe AMB-50 Industrial High-Voltage Insulation Tester is giving these features Test insulation of wires, cables, transformers, motors, surge arrestors and generators. It's a reliable and 100% trusted product.
Amprobe AMB-50 High-Voltage Insulation Tester has valuable features for professional insulation diagnostics. It features appendage of PI, and DAR parameters.
The toting occurring/fail comparison take steps help to intensify psychoanalysis productivity. Readings are clearly displayed on a large backlit LCD display. Windows compatible PC Software and USB communications harbor alleviate for connecting the instrument to the PC and supervision of the recorded test data.
Tools Bangladesh is the largest website of electronic all equipment in Bangladesh. Amprobe AMB-50 is selling at with the best price. Also, you can get any types of electronic tools and we deliver anywhere in Bangladesh
Features
Key Features: Amprobe AMB-50 Industrial High-Voltage Insulation Tester
- Test insulation of wires, cables, transformers, motors, surge arrestors and generators
- Selectable testing voltages – one testing instrument for low and high voltage systems from 500/1000/2500 and 5000V
- Insulation resistance measurement up to 1T Ω
- User selectable programmable timer (10s to 30 min)
- Automatic discharge of test object after completion of measurement
- Diagnostic tools
- Polarization index (PI)
- Dielectric absorption ratio (DAR)
- Comparison feature to set pass/fail thresholds for quick measurement and verification
- Dual power source – receptacle or batteries
- Built in internal memory storing 18 measurements
- Comes as a complete kit: power adapter, software, USB interface cable, hard carrying case, batteries, complete set of test leads, and instruction manual
- CAT III 600V
Specifications
Specifications: Amprobe AMB-50 Industrial High-Voltage Insulation Tester
FEATURE | AMB-50 |
Insulation resistance | 0.5 MO → 20 GO, 2 MO → 40 GO, 5 MO → 100 MO, 100 MO → 1000 GO |
Test voltage and step voltage display range | 0 V → 5000 V |
Current display range | 0 mA → 1.2 mA |
Dielectric absorption ratio (DAR) | 0 → 9.99 |
Polarization index (PI) | 0 → 9.99 |
Dielectric discharge test (DD) | 0 → 9.99 |
Leakage current display range | 1 mA → 1.2 mA |
External voltage measurement | 30 V → 600 V |
Capacitance measurement | – |
Download PC interface | • |
Memory size | 18 Measurements |
Specifications | |
Display (LCD): | 1999 counts. Analog bar graph. |
Operating temperature: | -10°C~40°C (14°F ~104°F ) |
Storage temperature: | -20°C ~60°C (-4 °F~152°F ) |
Relative humidity: | < 85% @ -10°C ~40°C below; < 90% @ 0°C ~40°C : |
Battery type: | 8pcs X 1.5V (LR14) batteries or power adaptor (input voltage 230V, 50/60Hz, 75mA, input DC14V, 1.0A). Power adaptor is not included. |
Storage environment: | -20°C to 60°C, 0 to 70% R.H. with battery removed from meter. |
For complete specs please download the product datasheet under the “Resources” tab.
Includes
Includes: Amprobe AMB-50 Industrial High-Voltage Insulation Tester
- Test insulation of wires, cables, transformers, motors, surge arrestors and generators
- Selectable testing voltages – one testing instrument for low and high voltage systems from 500/1000/2500 and 5000V
- Insulation resistance measurement up to 1T Ω
Accessories
Accessories: Amprobe AMB-50 Industrial High-Voltage Insulation Tester
- Test lead,
- Large jaw alligator clips,
- Batteries,
- Users manual,
- Carrying case,
- Software,
- USB cable
