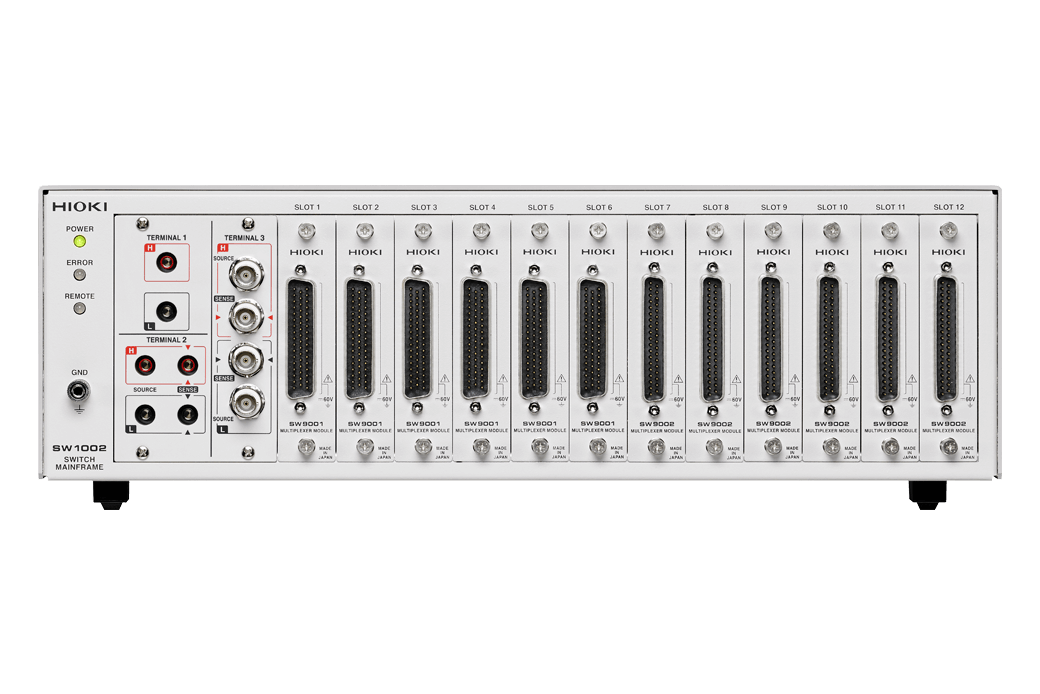

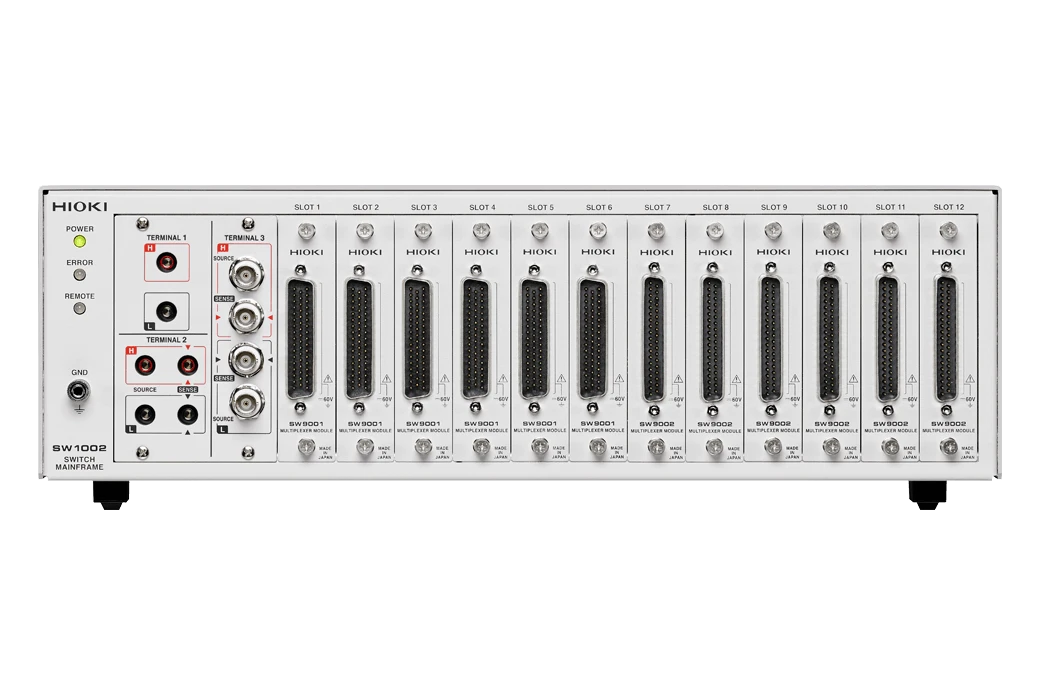

The SW1002 is a switch mainframe for housing the SW9001 or SW9002 Multiplexer Module to deliver quick, multi-channel battery testing. Connect up to 2 battery testing instruments to test OCV measurement, internal resistance measurement, and external potential measurement of battery cells. HIOKI SWITCH MAINFRAME SW1002 Price in Bangladesh offers reliable multi-channel testing with high-speed scanning capabilities for precision measurements. Ideal for advanced industrial and laboratory applications, it ensures seamless integration and accurate data acquisition. For professionals seeking performance and value, the HIOKI SWITCH MAINFRAME SW1002 Price in Bangladesh is a top choice.
Key Features
- Switch between voltmeter and battery tester while testing
- SW1002: max. 264 channels (2-wire) to max. 72 channels (4-terminal pair)
- Circuit-design-friendly for impedance measurements that minimize errors between channels (Effect: 0.01% f.s. [*1])
- For OCV measurement, internal resistance measurement, and external potential measurement of battery cells
Basic specifications
| Slots |
12 slots |
| Supported modules |
MULTIPLEXER MODULE SW9001 (2-wire/4-wire)
MULTIPLEXER MODULE SW9002 (4-terminal pair) |
| Connectible instruments |
Max. 2 units
2-wire × 1 + 4-wire × 1, or 2-wire × 1 + 4-terminal pair × 1 |
| Max. input voltage |
60 V DC (Cannot connect to battery packs in excess of 60 V DC), 30 V AC rms, 42.4 V peak, Maximum rated voltage to ground: 60 V DC |
| Communication I/F |

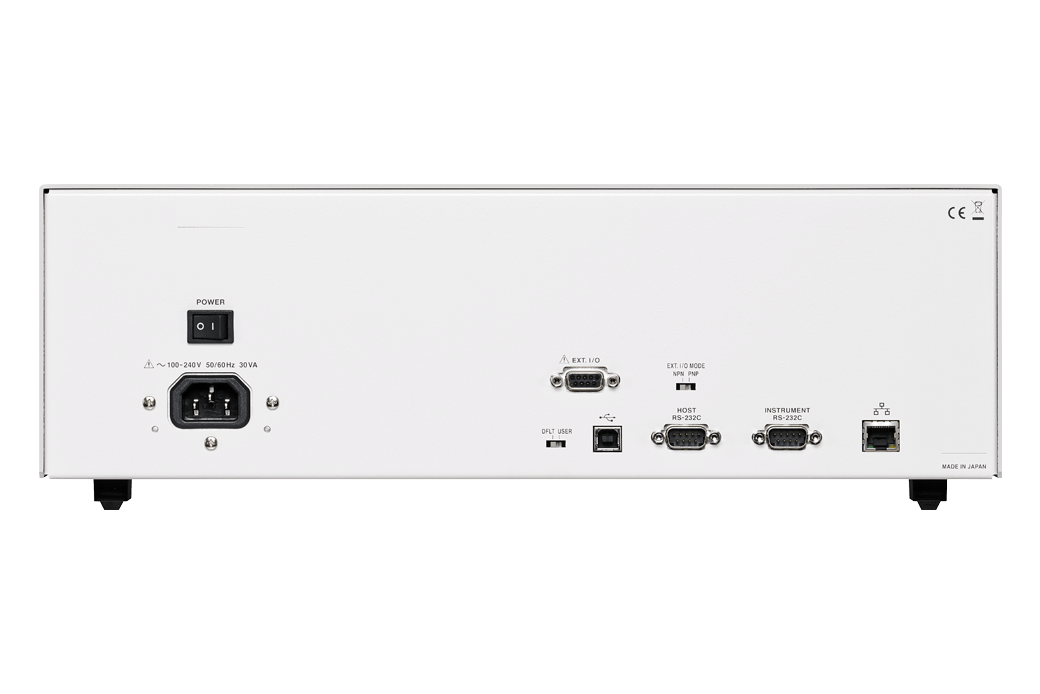

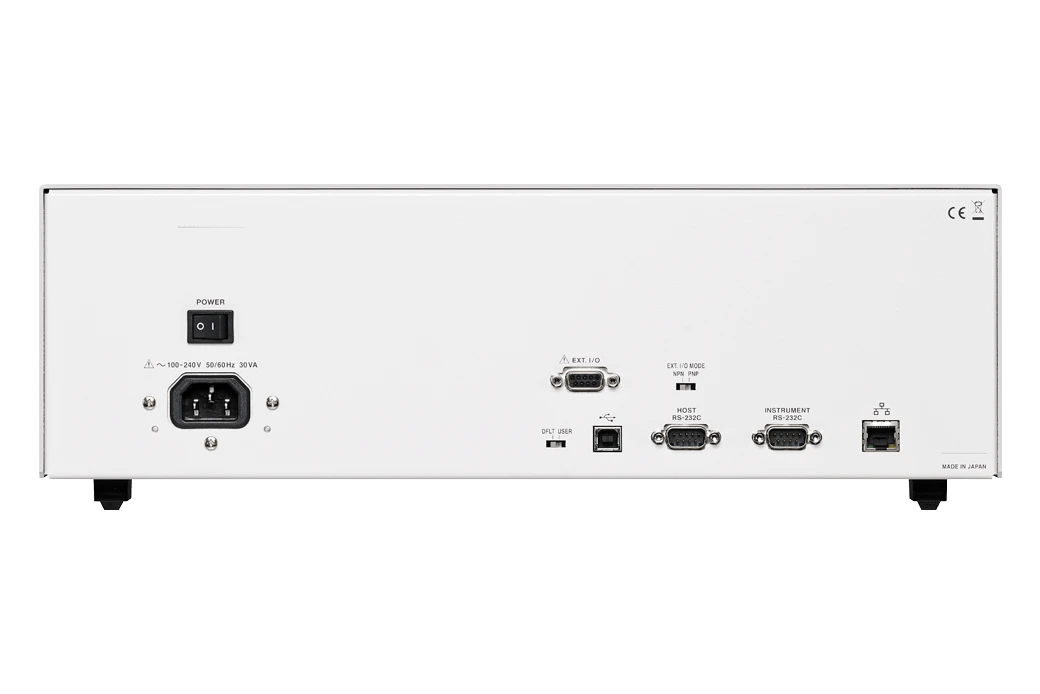

LAN, USB, RS-232C (for host, for measurement instruments) |
| Functions |
Channel switching, wiring method, scan function, communication command transmission, channel delay, shield switching |
| Power supply |
100 to 240 V AC / 30 VA (50/60 Hz) |
| Dimensions and mass |
430 mm (16.93 in) W × 132 mm (5.20 in) H × 420 mm (16.54 in) D, 6.0 kg (211.6 oz) |
| Included accessories |
Power cord ×1, instruction manual ×1, usage precautions ×1, USB driver CD ×1 |
Basic specifications for MULTIPLEXER MODULE
| |
SW9001 |
SW9002 |
| Wiring method |
2-wire or 4-wire |
4-terminal pair (6-wire) or 2-wire |
| No. of channels |
22 channels (2-wire) / 11 channels (4-wire) |
6 channels (4-terminal pair) / 6 channels (2-wire) |
| Contact method |
Armature relays |
| Channel switching time |
11 ms (excluding measurement time) |
| Max. allowable voltage |
60 V DC, 30 V AC rms, 42.4 V peak |
| Max. allowable current |
1 A DC, 1 A AC rms |
1 A DC, 1 A AC rms (Sense), 2 A DC, 2 A AC rms (Source, Return) |
| Max. allowable power |
30 W (resistive load) |
| Maximum rated voltage to ground |
60 V DC |
| Dimensions and mass |
25.5 mm (1.00 in) W × 110 mm (4.33 in) H × 257 mm (10.12 in) D, 210 g (7.4 oz) |
25.5 mm (1.00 in) W × 110 mm (4.33 in) H × 257 mm (10.12 in) D, 196 g (6.9 oz) |
| Included accessories |
Instruction manual ×1 |
| Included accessories |
Instruction manual ×1 |
| Included accessories |
Instruction manual ×1 |
