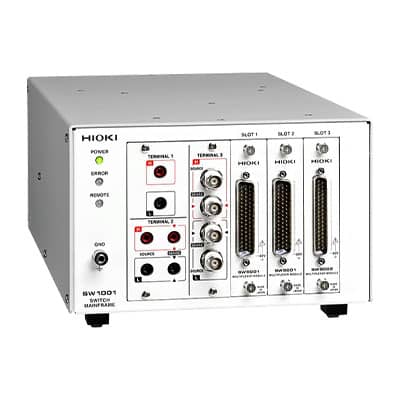

HIOKI SW1001 SWITCH MAINFRAME:
The SW1001 is a switch mainframe for housing up to 3 units of SW9001 or SW9002 Multiplexer Module to deliver quick, multi-channel battery testing. Connect up to 2 battery testing instruments to test OCV measurement, internal resistance measurement, and external potential measurement of battery cells. Packed with Features to Assure Accuracy in Multi-channel Battery Testing.
Are you looking for an outstanding, battery tester? Yes, you are in the right place at the right time. tools Bangladesh provides testing supplies and tools. So, you may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest shipping services.
Key Features:
- Switch between voltmeter and battery tester while testing
- SW1001: max. 66 channels (2-wire) to max. 18 channels (4-terminal pair)
- Circuit-design-friendly for impedance measurements that minimize errors between channels (Effect: 0.01% f.s. [*1])
- For OCV measurement, internal resistance measurement, and external potential measurement of battery cells
- Measure battery modules up to 60 V DC
Basic specifications:
| Slots |
3 slots |
| Supported modules |
MULTIPLEXER MODULE SW9001 (2-wire/4-wire)
MULTIPLEXER MODULE SW9002 (4-terminal pair) |
| Connectible instruments |
Max. 2 units
2-wire × 1 + 4-wire × 1, or 2-wire × 1 + 4-terminal pair × 1 |
| Max. input voltage |
60 V DC (Cannot connect to battery packs in excess of 60 V DC), 30 V AC rms, 42.4 V peak, Maximum rated voltage to ground: 60 V DC |
| Communication I/F |
LAN, USB, RS-232C (for host, for measurement instruments) |
| Functions |
Channel switching, wiring method, scan function, communication command transmission, channel delay, shield switching |
| Power supply |
100 to 240 V AC / 30 VA (50/60 Hz) |
| Dimensions and mass |
215 mm (8.46 in) W × 132 mm (5.20 in) H × 420 mm (16.54 in) D, 3.7 kg (130.5 oz) |
| Included accessories |
Power cord ×1, instruction manual ×1, usage precautions ×1, USB driver CD ×1 |
Basic specifications for MULTIPLEXER MODULE
| |
SW9001 |
SW9002 |
| Wiring method |
2-wire or 4-wire |
4-terminal pair (6-wire) or 2-wire |
| No. of channels |
22 channels (2-wire) / 11 channels (4-wire) |
6 channels (4-terminal pair) / 6 channels (2-wire) |
| Contact method |
Armature relays |
| Channel switching time |
11 ms (excluding measurement time) |
| Max. allowable voltage |
60 V DC, 30 V AC rms, 42.4 V peak |
| Max. allowable current |
1 A DC, 1 A AC rms |
1 A DC, 1 A AC rms (Sense), 2 A DC, 2 A AC rms (Source, Return) |
| Max. allowable power |
30 W (resistive load) |
| Maximum rated voltage to ground |
60 V DC |
| Dimensions and mass |
25.5 mm (1.00 in) W × 110 mm (4.33 in) H × 257 mm (10.12 in) D, 210 g (7.4 oz) |
25.5 mm (1.00 in) W × 110 mm (4.33 in) H × 257 mm (10.12 in) D, 196 g (6.9 oz) |
| Included accessories |
Instruction manual ×1 |
