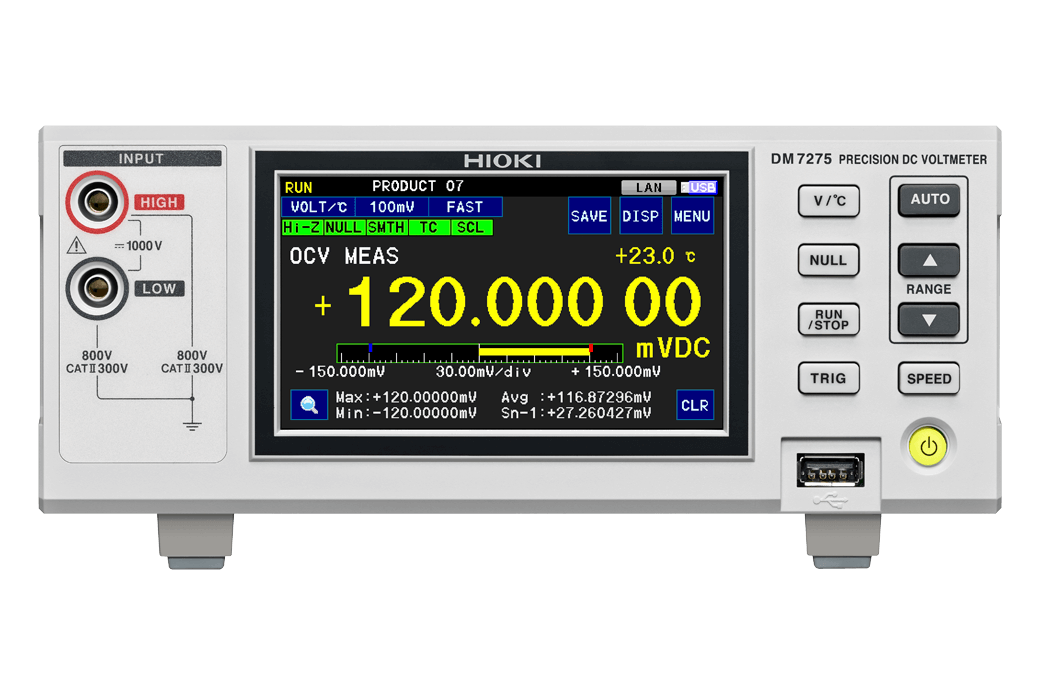

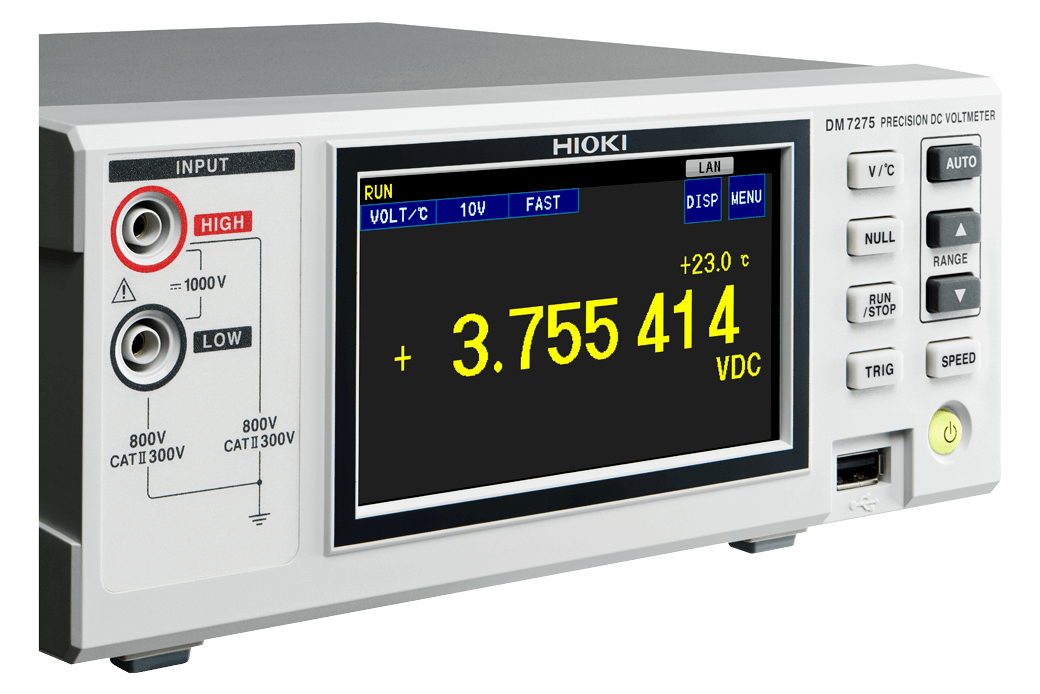

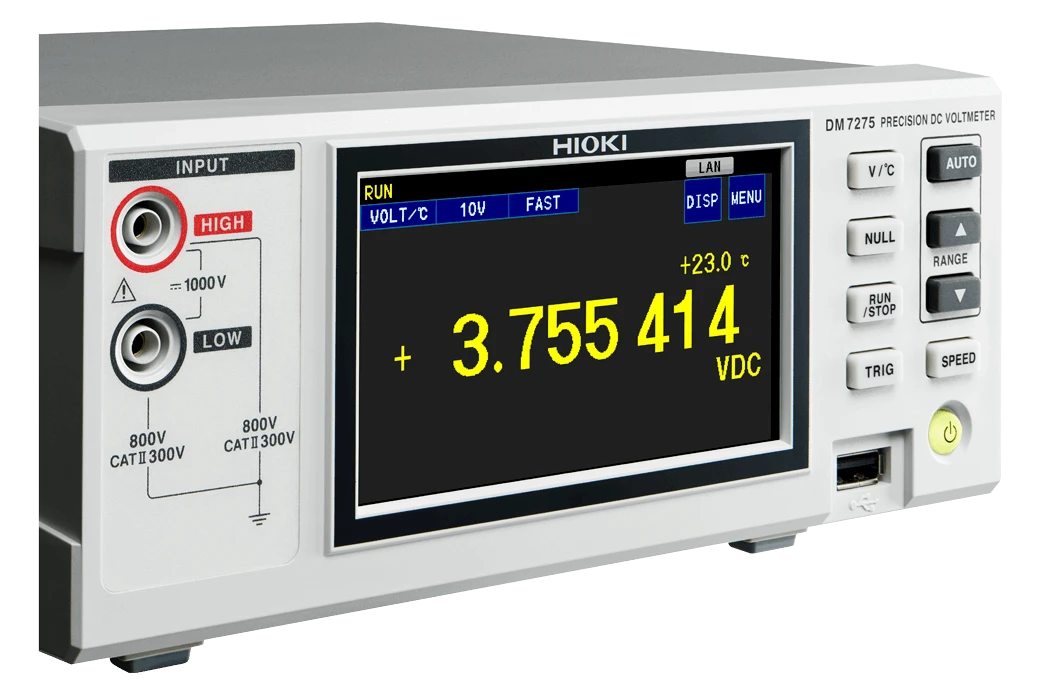

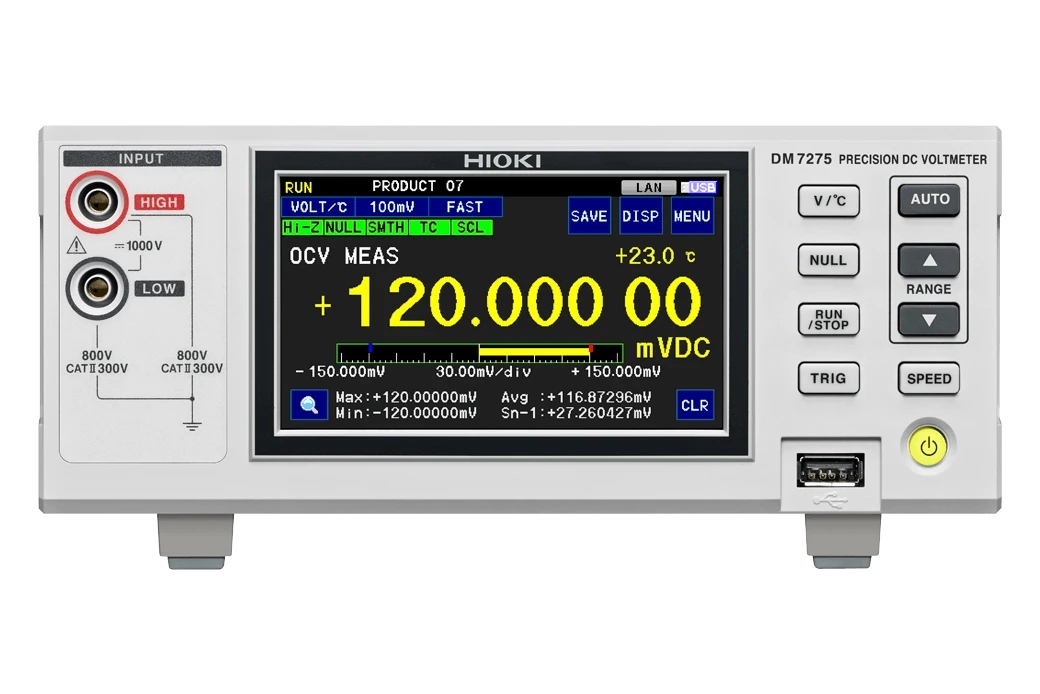

The DM7275 Precision DC Voltmeter delivers superior measurement accuracy of 20 ppm (0.002%), an accuracy level that is demanded by advanced applications such as aging tests of lithium-ion batteries. Other key features include contact check to maximize measurement reliability, binning, and temperature compensation, making the voltmeter ideal for developing and manufacturing Li-ion batteries, electrical double-layer capacitors, electric vehicle components, and other next-generation devices. HIOKI PRECISION DC VOLTMETER DM7275 Price in Bangladesh reflects top-tier performance for precision voltage measurement in advanced electronics. Designed for high-speed testing, it ensures stable, reliable results with minimal error. Ideal for R&D labs and production lines. Discover unmatched accuracy with HIOKI PRECISION DC VOLTMETER DM7275 Price in Bangladesh.
Key Features
- Basic model with 1-year 20ppm Accuracy: DM7275
- Capacitance contact check (using built-in C-monitor)
- Supports global production with built-in variable power supply
- Built-in EXT I/O, LAN, and USB
Basic specifications
Accuracy guaranteed: 1 year
| DC Voltage |
100 mV ( ±120.000 00 mV) to 1000 V ( ±1000.000 0 V ), 5 ranges |
| Basic accuracy |
10 V range: ±0.0020% rdg. ±12 μV |
| Temperature |
-10.0°C to 60.0°C (14.0°F to 140°F), combined with sensor Z2001: ±0.5°C (5.0°C to 35°C) |
| Integration time |
Integration time unit: PLC/ms (PLC setting: 0.02/ 0.2/ 1/ 10/ 100, ms setting: 1 ms to 9999 ms) |
| Measurement support functions |
Smoothing function, null, temperature compensation, scaling, over-range display, self-calibration, auto-hold, contact check |
| Management support functions |
Comparator, BIN, absolute value judgment, label display, statistics, measurement information, communication monitor, EXT. I/O TEST |
| Contact check |
Check signal: 10 mV rms, threshold value: 0.5 nF to 50 nF (Cannot use in the 100 V/1000 V ranges), Contact check integration time: 1 ms to 100 ms |
| Interfaces |
Standard: LAN (100BASE-TX), EXT. I/O, USB flash drive / USB device (USB2.0 Full-Speed)
Optional: GP-IB (-02 type only) / RS-232C (-03 type only) / PRINTER (-03 type only) |
| Power supply |
100 to 240 V AC, 50/60 Hz, 30 VA |
| Dimensions and mass |
215 mm (8.46 in) W × 88 mm (3.46 in) H × 232 mm (9.13 in) D
(-01 type): 2.3 kg (81.1 oz), (-02/-03 type): 2.4 kg (84.7 oz) |
| Included accessories |
Instruction manual ×1, power cord ×1, application disk (CD-R) ×1 |
| Included accessories |
Instruction manual ×1, power cord ×1, application disk (CD-R) ×1 |
| Included accessories |
Instruction manual ×1, power cord ×1, application disk (CD-R) ×1 |
