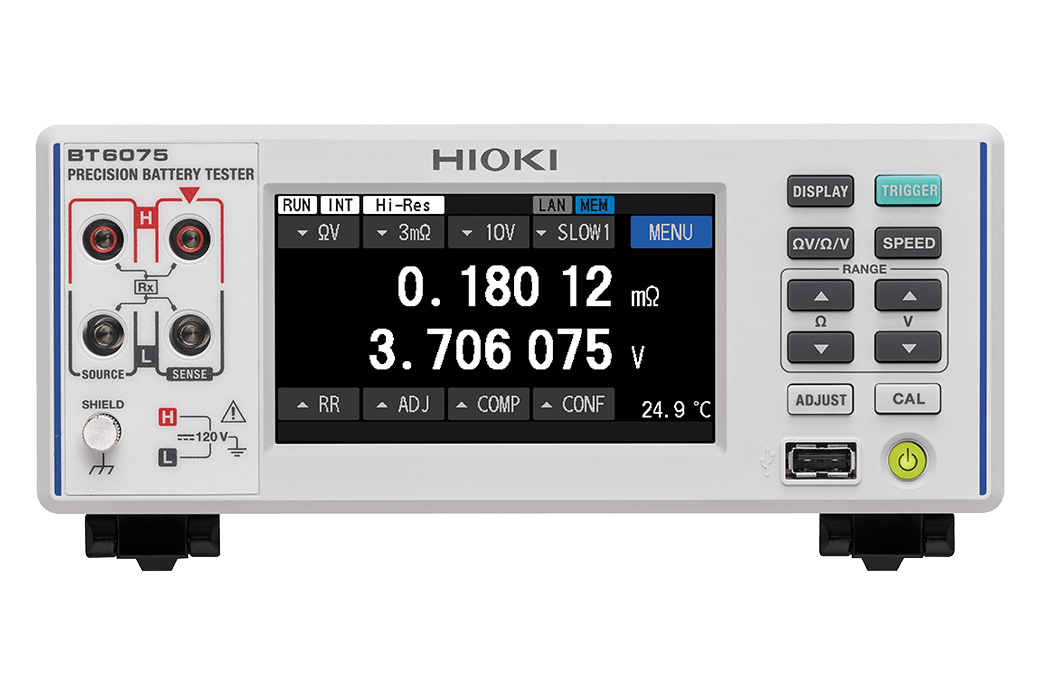

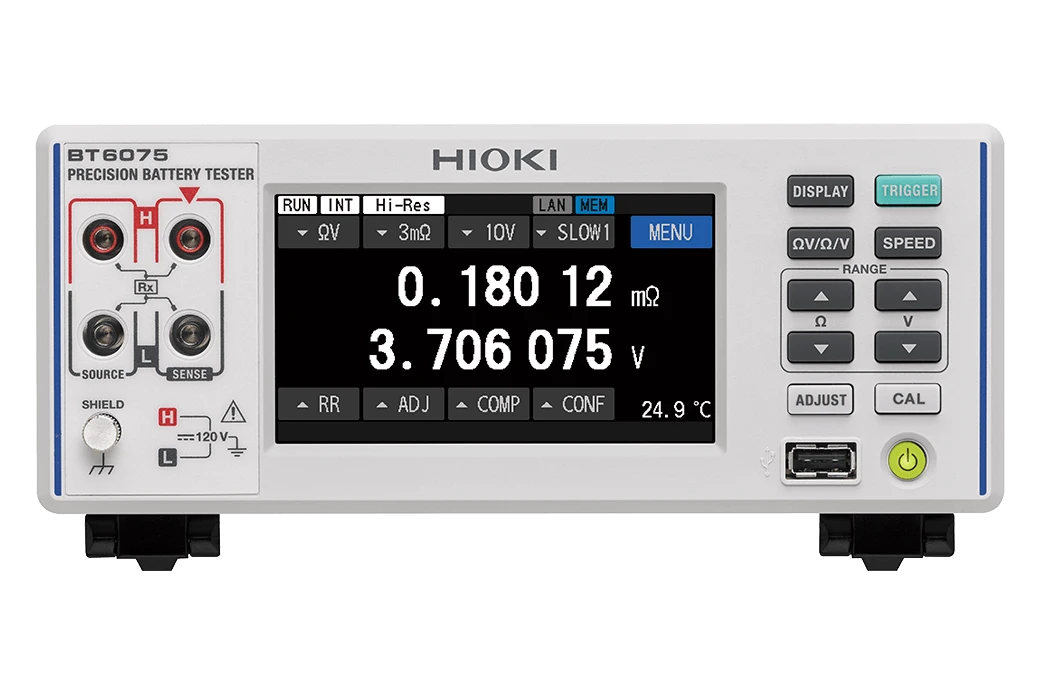

HIOKI PRECISION BATTERY TESTER BT6065, BT6075

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4229
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

The Precision Battery Tester BT6065 and BT6075 are designed for OCV/AC-IR testing of high-capacity EV battery cells with low internal resistance. The extremely high resolution enables these models to perform advanced cell-grading. These testers powerfully facilitate the creation of reliable and efficient OCV/IR testing systems with their innovative features and capability of high-speed testing. HIOKI PRECISION BATTERY TESTER BT6065, BT6075 Price in Bangladesh offers accurate, high-speed testing for lithium-ion and lead-acid batteries. Ideal for R&D and production lines, these testers ensure precise internal resistance and voltage measurement. Choose reliability with HIOKI PRECISION BATTERY TESTER BT6065, BT6075, Price in Bangladesh for optimal battery evaluation.

Key Features

  • Industry's most accurate & high-speed OCV/IR test performance
  • Shorter testing times while maintaining exceptional reproducibility
  • Two testers work in tandem without interference
  • Channel-specific correction and optional multiplexer
  • Supports seamless setup of inspection systems
  • High durability and long-term, stable test system operations

Basic specifications

Accuracy guaranteed: 1 year

Resistance measurement ranges
(HIGH RESOLUTION ON)		 [Range (Measurement current), Accuracy (SLOW2), Maximum display value, Resolution]
3 mΩ (300 mA), ±0.08% rdg. ±0.08 μΩ, 5.10000 mΩ, 0.01 μΩ
3 mΩ (100 mA), ±0.08% rdg. ±0.50 μΩ, 5.10000 mΩ, 0.01 μΩ
30 mΩ (100 mA), ±0.08% rdg. ±0.5 μΩ, 51.0000 mΩ, 0.1 μΩ
300 mΩ (10 mA), ±0.08% rdg. ±5 μΩ, 510.000 mΩ, 1 μΩ
3 Ω (1 mA), ±0.10% rdg. ±50 μΩ, 5.10000 Ω, 10 μΩ
30 Ω (100 μA), ±0.15% rdg. ±0.5 mΩ, 51.0000 Ω, 100 μΩ
Measurement-current frequency: 1 kHz ±0.2 Hz

Additional accuracy deterioration
Temperature coefficient: add the following value to the measurement accuracy if the temperature is 0°C to 18°C or 28°C to 40°C: (measurement accuracy × 0.1) / °C
Addition when resistance measurement MIR mode is enabled: add ±0.01% rdg. to the resistance measurement accuracy.
DC-voltage measurement range [Product model: Range, SLOW2, Maximum display value, Resolution]
BT6065: 10 V, ±0.002% rdg. ±20 μV, ±12.00000 V, 10 μV
BT6065: 100 V, ±0.004% rdg. ±0.6 mV, ±120.0000 V, 100 μV
BT6075: 10 V, ±0.0012% rdg. ±11 μV, ±12.000000 V, 1 μV
BT6075: 100 V, ±0.003% rdg. ±0.60 mV, ±120.00000 V, 10 μV

Additional accuracy deterioration
Temperature coefficient: add the following value to the measurement accuracy if the temperature is 0°C to 18°C or 28°C to 40°C: (measurement accuracy × 0.1) / °C
Temperature measurement range Range: -10.0°C to 60.0°C (14°F to 140°F)

Accuracy (instrument + Z2005): ±0.5°C (measurement temperature of 10.0°C to 40.0°C)
±1.0°C (measurement temperature of -10.0°C to 9.9°C, 40.1°C to 60.0°C)
Route resistance measurement range [Resistance range, Measurement current, Maximum display value]
3 mΩ, 300 mA, 10.0 Ω
3 mΩ, 100 mA, 50.0 Ω
30 mΩ, 100 mA, 50.0 Ω
300 mΩ, 10 mA, 50.0 Ω
3 Ω, 1 mA, 50.0 Ω
30 Ω, 100 μA, 500 Ω
Sampling time (*1) [Power frequency, FAST1, FAST2, MEDIUM1(MED1), MEDIUM2(MED2), SLOW1, SLOW2]
50 Hz, 4 ms, 10 ms, 20 ms, 40 ms, 100 ms, 200 ms
60 Hz, 4 ms, 10 ms, 17 ms, 33 ms, 100 ms, 200 ms

*1: All common to measurement functions ΩV, Ω, and V.
Response time Approx. 8 ms
(when measuring only resistance and voltage of a 4 V battery)
Functions Averaging (up to 256 times), contact check, resistance self calibration, DC voltage self-calibration, zero adjustment (528 channels), referential adjustment (528 channels), route resistance monitor, resistance measurement MIR mode, comparator, command compatibility (BT3562A Battery HiTester compatible), panel save (number of savable sets: 6), command monitor, EXT. I/O test

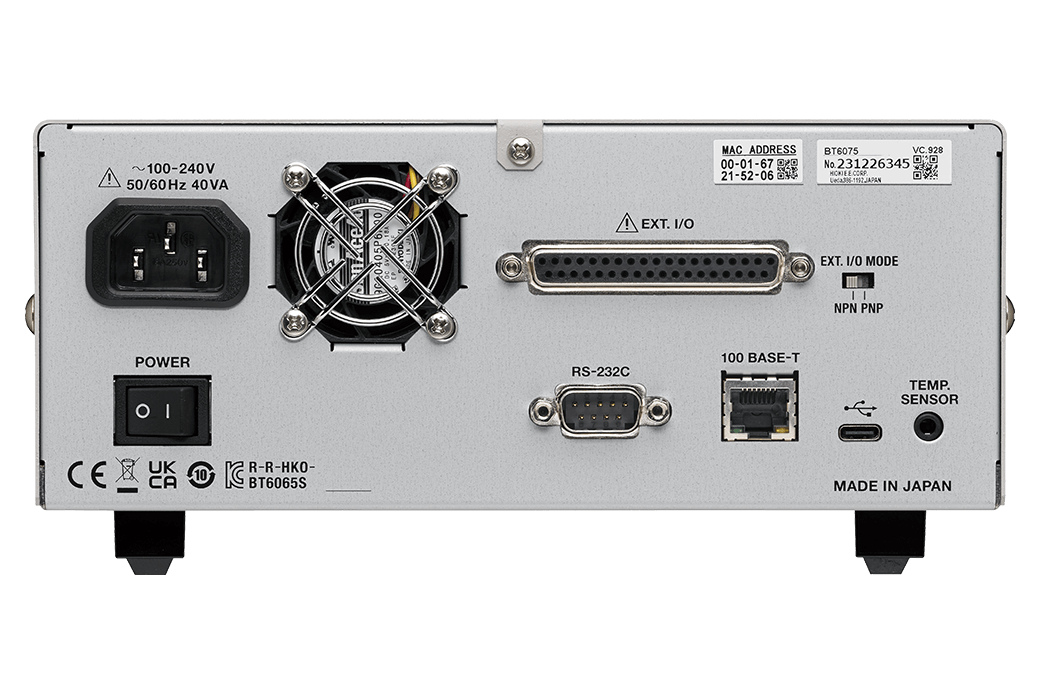

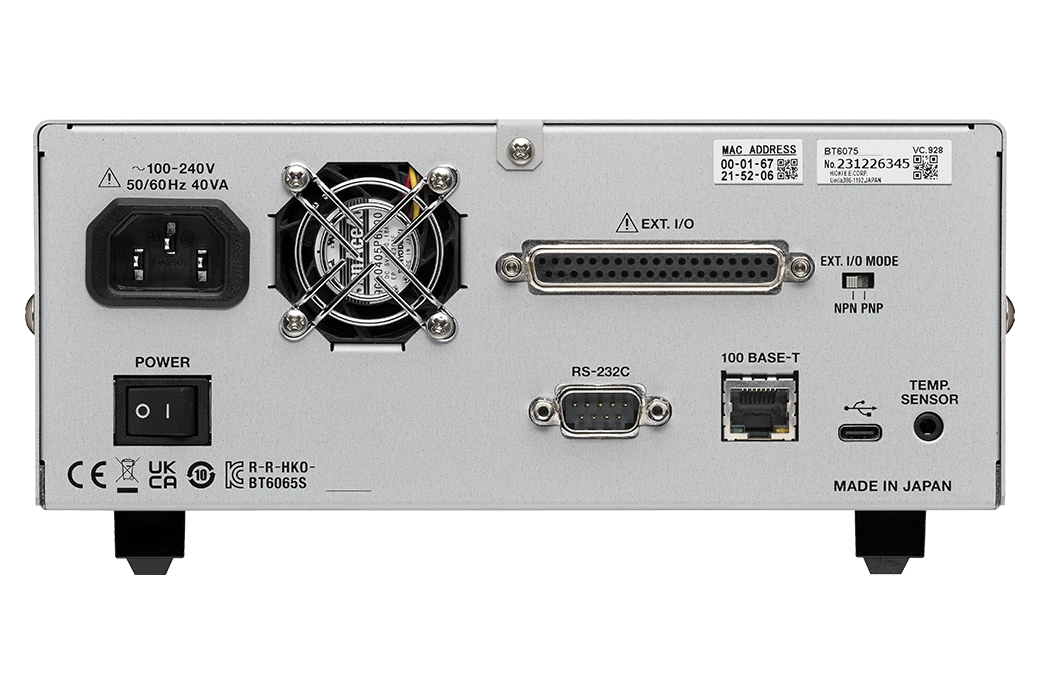

Interface LAN (10BASE T/100BASE-T, TCP/IP), USB (COM mode, Connector Type-C), USB (MEM mode, Connector Type-A, the Z4006 USB Drive is used), RS-232C (9600 bps, 19200 bps, 38400 bps), EXT. I/O
Power supply Rated supply voltage: 100 V to 240 V AC
Rated power-supply frequency: 50 Hz, 60 Hz
Maximum rated power: 40 VA
Dimensions and weight Approx. 215W × 88H × 313D mm (8.5W × 3.5H × 12.3D in.)
Approx. 3.1 kg (6.8 lb.) (excluding protrusions)
Included accessories Power cord × 1, Startup Guide × 1, Operating Precautions × 1
Included accessories Power cord × 1, Startup Guide × 1, Operating Precautions × 1
Included accessories Power cord × 1, Startup Guide × 1, Operating Precautions × 1

The Precision Battery Tester BT6065 and BT6075 are designed for OCV/AC-IR testing of high-capacity EV battery cells with low internal resistance. The extremely high resolution enables these models to perform advanced cell-grading. These testers powerfully facilitate the creation of reliable and efficient OCV/IR testing systems with their innovative features and capability of high-speed testing. HIOKI PRECISION BATTERY TESTER BT6065, BT6075 Price in Bangladesh offers accurate, high-speed testing for lithium-ion and lead-acid batteries. Ideal for R&D and production lines, these testers ensure precise internal resistance and voltage measurement. Choose reliability with HIOKI PRECISION BATTERY TESTER BT6065, BT6075, Price in Bangladesh for optimal battery evaluation.

Key Features

  • Industry's most accurate & high-speed OCV/IR test performance
  • Shorter testing times while maintaining exceptional reproducibility
  • Two testers work in tandem without interference
  • Channel-specific correction and optional multiplexer
  • Supports seamless setup of inspection systems
  • High durability and long-term, stable test system operations

Basic specifications

Accuracy guaranteed: 1 year

Resistance measurement ranges
(HIGH RESOLUTION ON)		 [Range (Measurement current), Accuracy (SLOW2), Maximum display value, Resolution]
3 mΩ (300 mA), ±0.08% rdg. ±0.08 μΩ, 5.10000 mΩ, 0.01 μΩ
3 mΩ (100 mA), ±0.08% rdg. ±0.50 μΩ, 5.10000 mΩ, 0.01 μΩ
30 mΩ (100 mA), ±0.08% rdg. ±0.5 μΩ, 51.0000 mΩ, 0.1 μΩ
300 mΩ (10 mA), ±0.08% rdg. ±5 μΩ, 510.000 mΩ, 1 μΩ
3 Ω (1 mA), ±0.10% rdg. ±50 μΩ, 5.10000 Ω, 10 μΩ
30 Ω (100 μA), ±0.15% rdg. ±0.5 mΩ, 51.0000 Ω, 100 μΩ
Measurement-current frequency: 1 kHz ±0.2 Hz

Additional accuracy deterioration
Temperature coefficient: add the following value to the measurement accuracy if the temperature is 0°C to 18°C or 28°C to 40°C: (measurement accuracy × 0.1) / °C
Addition when resistance measurement MIR mode is enabled: add ±0.01% rdg. to the resistance measurement accuracy.
DC-voltage measurement range [Product model: Range, SLOW2, Maximum display value, Resolution]
BT6065: 10 V, ±0.002% rdg. ±20 μV, ±12.00000 V, 10 μV
BT6065: 100 V, ±0.004% rdg. ±0.6 mV, ±120.0000 V, 100 μV
BT6075: 10 V, ±0.0012% rdg. ±11 μV, ±12.000000 V, 1 μV
BT6075: 100 V, ±0.003% rdg. ±0.60 mV, ±120.00000 V, 10 μV

Additional accuracy deterioration
Temperature coefficient: add the following value to the measurement accuracy if the temperature is 0°C to 18°C or 28°C to 40°C: (measurement accuracy × 0.1) / °C
Temperature measurement range Range: -10.0°C to 60.0°C (14°F to 140°F)

Accuracy (instrument + Z2005): ±0.5°C (measurement temperature of 10.0°C to 40.0°C)
±1.0°C (measurement temperature of -10.0°C to 9.9°C, 40.1°C to 60.0°C)
Route resistance measurement range [Resistance range, Measurement current, Maximum display value]
3 mΩ, 300 mA, 10.0 Ω
3 mΩ, 100 mA, 50.0 Ω
30 mΩ, 100 mA, 50.0 Ω
300 mΩ, 10 mA, 50.0 Ω
3 Ω, 1 mA, 50.0 Ω
30 Ω, 100 μA, 500 Ω
Sampling time (*1) [Power frequency, FAST1, FAST2, MEDIUM1(MED1), MEDIUM2(MED2), SLOW1, SLOW2]
50 Hz, 4 ms, 10 ms, 20 ms, 40 ms, 100 ms, 200 ms
60 Hz, 4 ms, 10 ms, 17 ms, 33 ms, 100 ms, 200 ms

*1: All common to measurement functions ΩV, Ω, and V.
Response time Approx. 8 ms
(when measuring only resistance and voltage of a 4 V battery)
Functions Averaging (up to 256 times), contact check, resistance self calibration, DC voltage self-calibration, zero adjustment (528 channels), referential adjustment (528 channels), route resistance monitor, resistance measurement MIR mode, comparator, command compatibility (BT3562A Battery HiTester compatible), panel save (number of savable sets: 6), command monitor, EXT. I/O test
Interface LAN (10BASE T/100BASE-T, TCP/IP), USB (COM mode, Connector Type-C), USB (MEM mode, Connector Type-A, the Z4006 USB Drive is used), RS-232C (9600 bps, 19200 bps, 38400 bps), EXT. I/O
Power supply Rated supply voltage: 100 V to 240 V AC
Rated power-supply frequency: 50 Hz, 60 Hz
Maximum rated power: 40 VA
Dimensions and weight Approx. 215W × 88H × 313D mm (8.5W × 3.5H × 12.3D in.)
Approx. 3.1 kg (6.8 lb.) (excluding protrusions)
Included accessories Power cord × 1, Startup Guide × 1, Operating Precautions × 1

Included accessories Power cord × 1, Startup Guide × 1, Operating Precautions × 1

Included accessories Power cord × 1, Startup Guide × 1, Operating Precautions × 1
