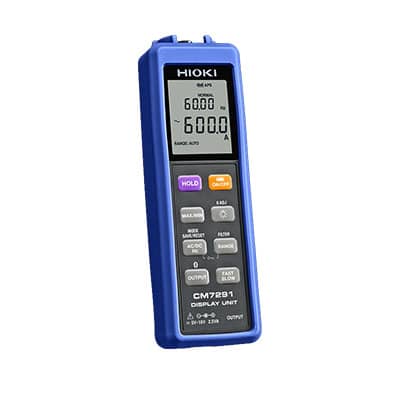

HIOKI CM7291 DISPLAY UNIT:
Hioki clamp-on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM7291 is the wireless receiving/display and output unit for the CT7600 and CT7700 AC/DC Current Sensor series, creating a standalone clamp meter for field use or enabling waveform signals to be output to a Hioki memory recorder or logger for further analysis. Multi-functional Receiving and Display Unit to Use Right on the Field or Output to Advanced Recorder or Logger.
Key Features:
- Send measured values to a smartphone or tablet using Bluetooth® wireless technology
- Use the GENNECT Cross dedicated app to display and review measured values and waveforms in real time
- Power supply and signal output for Current Sensor CT7000 series
- Simultaneous dual display of the measured values, frequency, and output rate
- Four output formats to output data to loggers or other devices (via Display Unit)
- Supports AC adapter, AA alkaline batteries, and external power supply
Specifications:
Accuracy guaranteed: 3 years
| Sensor |
CT7642, 7742 |
CT7636, 7736 |
CT7631, 7731 |
| Measurement parameters |
DC, AC, DC+AC, Hz |
| Crest factor |
3 at 5000 counts or 2.5 at 6000 counts for AC and DC+AC |
| Output method |
WAVE, RMS, PEAK, FREQ |
| Input connectors |
HIOKI PL 14 |
| Output update time |
PEAK--- FAST: 0.02 s / NORMAL: 0.2 s / SLOW: 1 s
FREQ--- FAST: FAST: 0.2 s / NORMAL: 0.2 s / SLOW: 3.0 s
(WAVE, RMS: analog output) |
| PEAK sensing duration |
2 ms or greater
(during PEAK MAX/PEAK MIN and PEAK output) |
| Other functions |
Auto range, Zero adjustment at power-up, Analysis display, Filter, Output amplification, Display value hold, Backlight , Auto-power save, Save settings, keypad lock |
Typical accuracy
(WAVE output DC) |
±2.0% rdg. ±10.8 mV
(60.00 A range) |
±2.5% rdg. ±30.8 mV
(60.00 A range) |
±1.5% rdg. ±5.8 mV
(60.00 A range) |
Typical accuracy
(RMS output AC) |
±2.3% rdg. ±10.8 mV
(60.00 A range) |
±2.8% rdg. ±30.8 mV
(60.00 A range) |
±1.8% rdg. ±5.8 mV
(60.00 A range) |
| Communication interface |
Built-in Bluetooth® 4.0 LE, Display of measured values on an iOS or Android handset (CM7291 only) |
| Power supply |
LR6 alkaline batteries (AA) ×2, Continuous use: 16 h (backlight OFF and WAVE or RMS output, when used with CT7600s), Rated power 2.5 VA
or AC adapter 9445-02/03 (100 to 240V AC), or 5 to 15 V DC external power supply, Rated power 2.5 VA |
| Dust and water resistance (*1) |
IP54 (with sensor connected and caps fitted to AC adapter and power connector) |
| Dimensions and mass |
52 mm (2.05 in)W × 163 mm (6.42 in)H × 37 mm (1.46 in)D, 220 g (7.8 oz) (including protector and battery) |
| Included accessories |
LR6 alkaline batteries ×2, Protector ×1, Instruction manual ×1 |
- *1:Waterproof characteristics intended to maintain measurement function; measuring energized parts while instrument is wet will increase the risk of electric shock.
Countries and regions where wireless operation is currently supported (CM7291)
Last update: August 2022
| Countries and regions where wireless operation is currently supported |
Australia, Austria, Bangladesh, Belgium, Bulgaria, Canada, Chile, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hong Kong, Hungary, Iceland, Ireland, Israel, Italy, Japan, Kenya, Korea, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malta, Myanmar, Netherlands, New Caledonia, New Zealand, Norway, Peru, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, Thailand, Turkey, United Kingdom, United States, Viet Nam |
| Note |
Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument in a country or region where they have not been approved may be subject to penalty as a violation of law. |
