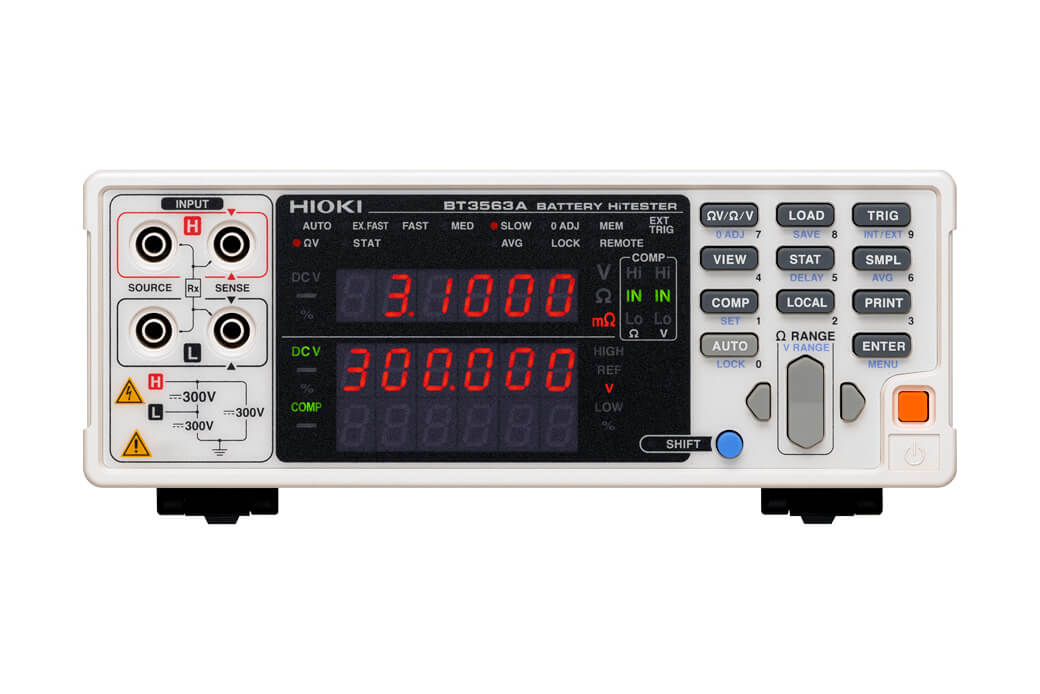

HIOKI BATTERY HiTESTER BT3563A is a high-precision testing device designed for accurate battery voltage and resistance measurement. Ideal for production lines, it ensures fast, reliable, and automated battery testing. With enhanced data logging and a user-friendly interface, BATTERY HiTESTER BT3563A delivers efficiency and performance for all battery inspection needs. HIOKI BATTERY HiTESTER BT3563A Price in Bangladesh offers a reliable solution for testing internal resistance and voltage of lithium-ion batteries. Ideal for production lines and quality inspection, it ensures precision and efficiency. For accurate battery diagnostics, choose performance and value with HIOKI BATTERY HiTESTER BT3563A Price in Bangladesh.
Key Features
- Simultaneous measurement of internal resistance and open circuit voltage.
- Fully automated production line testing of large packs for xEVs or large packs of up to 300 V.
- Measure from 0 Ω to 3.1 kΩ (minimum resolution 0.1 μΩ)
- Resistance measurement ranges: 3 mΩ/30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
- Measure from 0V DC to ±300 V DC (minimum resolution 10 μV)
- Voltage measurement ranges: 6 V/60 V/300 V
- Equipped with LAN
Basic specifications
Accuracy guaranteed: 1 year
| Resistance measurement ranges |
3 mΩ（Max. display: 3.1000 mΩ, resolution: 0.1 μΩ, measurement current: 100 mA）
30 mΩ（Max. display: 31.000 mΩ, resolution: 1 μΩ, measurement current: 100 mA）
300 mΩ（Max. display: 310.00 mΩ, resolution: 10 μΩ, measurement current: 10 mA）
3 Ω（Max. display: 3.1000 Ω, resolution: 100 μΩ, measurement current: 1 mA）
30 Ω（Max. display: 31.000 Ω, resolution: 1 mΩ, measurement current: 100 μA）
300 Ω（Max. display: 310.00 Ω, resolution: 10 mΩ, measurement current: 10 μA）
3 kΩ（Max. display: 3.1000 kΩ, resolution: 100 mΩ, measurement current: 10 μA）
Basic accuracy: ±0.5% rdg ±10 dgt（3 mΩ range）, ±0.5% rdg ±5 dgt（30 mΩ range or more）
Measurement frequency: 1 kHz ±0.2 Hz
Measurement method: AC four-terminal method |
| Voltage measurement ranges |
6 V（Max. display: 6.00000 V, resolution: 10 μV）
60 V（Max. display: 60.0000 V, resolution: 100 μV）
300 V（Max. display: 300.000 V, resolution: 1 mV）
Basic accuracy: ±0.01% rdg. ±3 dgt. |
| Response time |
10 ms |
| Sampling period |
Ω or V (60 Hz): 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW)
ΩV (60 Hz): 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW)
Ω or V (50 Hz): 4 ms (EX.FAST), 12 ms (FAST), 42 ms (MEDIUM), 157 ms (SLOW)
ΩV (50 Hz): 8 ms (EX.FAST), 24 ms (FAST), 84 ms (MEDIUM), 259 ms (SLOW) |
| Functions |
Contact check, Zero adjustment (±1000 counts), Pulse measurement, Comparator (Hi/ IN/ Lo), Statistical calculations (Max. 30,000), Delay, Average, Panel saving/loading, Memory storage, LabVIEW® driver |

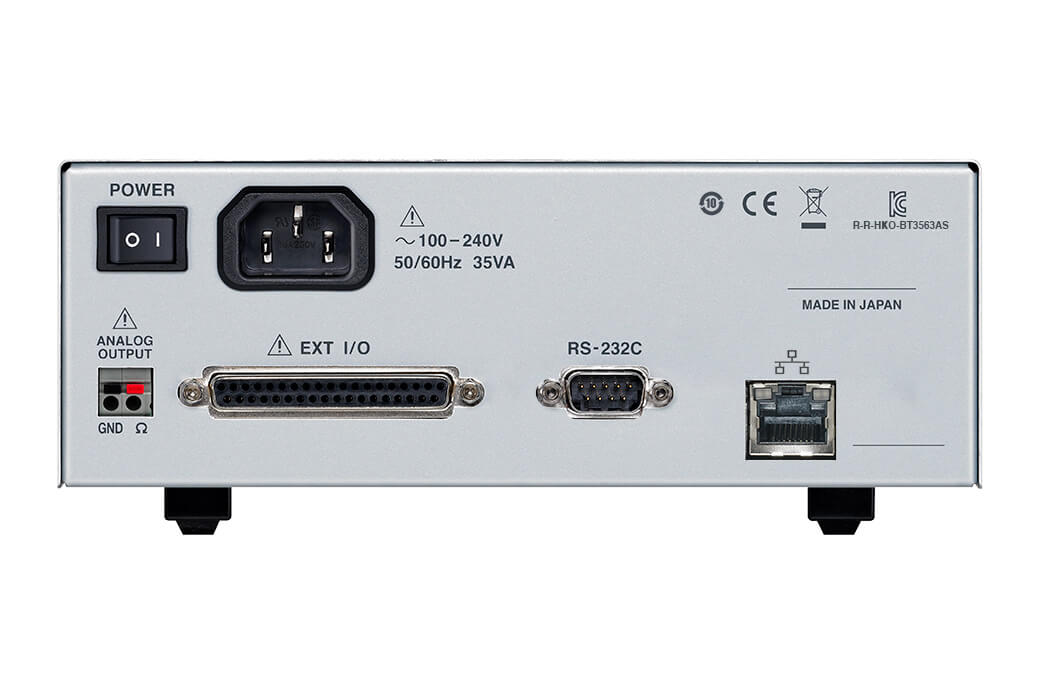

| Interfaces |
LAN (TCP/IP, 10BASE-T/100BASE-TX)
RS-232C (Max. 38.4 kbps, Available as printer I/F)
EXT I/O (37-pin Handler interface)
Analog output (DC 0 V to 3.1 V) |
| Power supply |
100 to 240 V AC, 50 Hz/60 Hz, 35 VA max. |
| Dimensions and mass |
215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz) |
| Included accessories |
Instruction manual ×1, Power cord ×1, Operating Precautions ×1 |
| Included accessories |
Instruction manual ×1, Power cord ×1, Operating Precautions ×1 |
| Included accessories |
Instruction manual ×1, Power cord ×1, Operating Precautions ×1 |
