HIOKI BATTERY HiTESTER BT3562A offers precise battery testing with advanced features for reliable performance. Designed for professionals, it ensures accurate measurements and durability in various environments. Compact and easy to use, the HIOKI BATTERY HiTESTER BT3562A is the ideal tool for efficient battery diagnostics. HIOKI BATTERY HiTESTER BT3562A Price in Bangladesh offers precise battery testing with advanced features and reliable performance. This compact tester ensures accurate voltage and resistance measurements, ideal for professional use. For those seeking quality and affordability, the HIOKI BATTERY HiTESTER BT3562A Price in Bangladesh is a top choice.

Key Features

  • Simultaneous measurement of internal resistance and open circuit voltage.
  • Fully automated production line testing of large cells for xEVs or mid-sized packs of up to 100 V.
  • Measure from 0 Ω to 3.1 kΩ (minimum resolution 0.1 μΩ)
  • Resistance measurement ranges: 3 mΩ/30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
  • Measure from 0 V DC to ±100 V DC (minimum resolution 10 μV)
  • Voltage measurement ranges: 6 V/60 V/100 V
  • Equipped with LAN

Basic specifications

Accuracy guaranteed: 1 year

Resistance measurement ranges 3 mΩ（Max. display: 3.1000 mΩ, resolution: 0.1 μΩ, measurement current: 100 mA）
30 mΩ（Max. display: 31.000 mΩ, resolution: 1 μΩ, measurement current: 100 mA）
300 mΩ（Max. display: 310.00 mΩ, resolution: 10 μΩ, measurement current: 10 mA）
3 Ω（Max. display: 3.1000 Ω, resolution: 100 μΩ, measurement current: 1 mA）
30 Ω（Max. display: 31.000 Ω, resolution: 1 mΩ, measurement current: 100 μA）
300 Ω（Max. display: 310.00 Ω, resolution: 10 mΩ, measurement current: 10 μA）
3 kΩ（Max. display: 3.1000 kΩ, resolution: 100 mΩ, measurement current: 10 μA）

Basic accuracy: ±0.5% rdg ±10 dgt（3 mΩ range）, ±0.5% rdg ±5 dgt（30 mΩ range or more）
Measurement frequency: 1 kHz ±0.2 Hz
Measurement method: AC four-terminal method
Voltage measurement ranges 6 V（Max. display: 6.00000 V, resolution: 10 μV）
60 V（Max. display: 60.0000 V, resolution: 100 μV）
100 V（Max. display: 100.000 V, resolution: 1 mV）

Basic accuracy: ±0.01% rdg. ±3 dgt.
Response time 10 ms
Sampling period Ω or V (60 Hz): 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW)
ΩV (60 Hz): 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW)

Ω or V (50 Hz): 4 ms (EX.FAST), 12 ms (FAST), 42 ms (MEDIUM), 157 ms (SLOW)
ΩV (50 Hz): 8 ms (EX.FAST), 24 ms (FAST), 84 ms (MEDIUM), 259 ms (SLOW)
Functions Contact check, Zero adjustment (±1000 counts), Pulse measurement, Comparator (Hi/ IN/ Lo), Statistical calculations (Max. 30,000), Delay, Average, Panel saving/loading, Memory storage, LabVIEW® driver

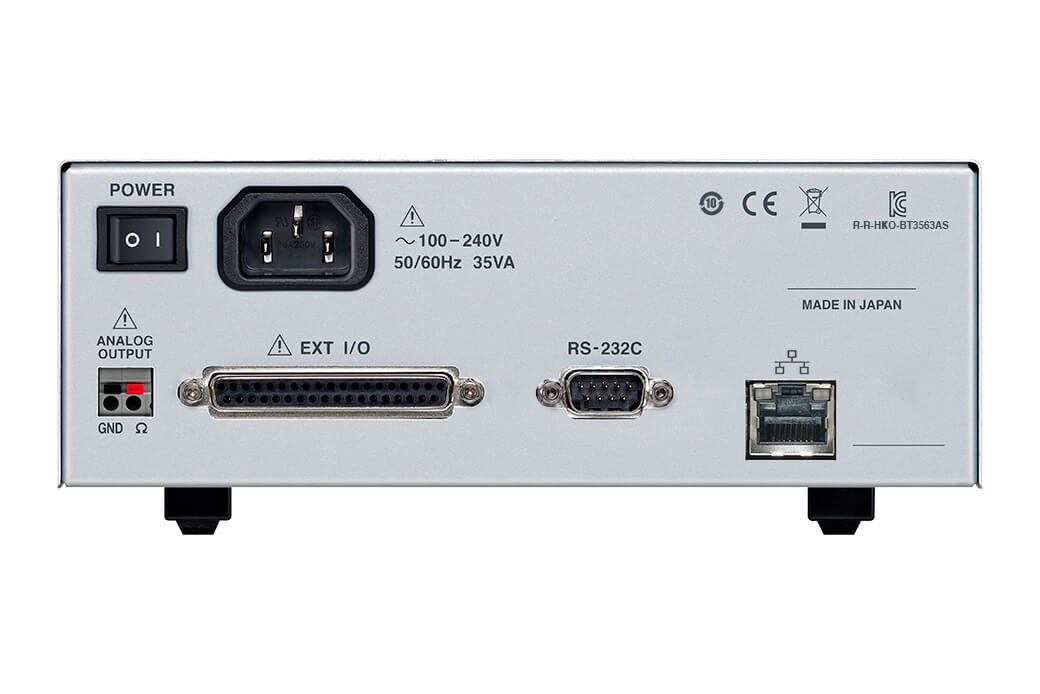

Interfaces LAN (TCP/IP, 10BASE-T/100BASE-TX)
RS-232C (Max. 38.4 kbps, Available as printer I/F)
EXT I/O (37-pin Handler interface)
Analog output (DC 0 V to 3.1 V)
Power supply 100 to 240 V AC, 50 Hz/60 Hz, 35 VA max.
Dimensions and mass 215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz)
Included accessories Instruction manual ×1, Power cord ×1, Operating Precautions ×1
Included accessories Instruction manual ×1, Power cord ×1, Operating Precautions ×1
Included accessories Instruction manual ×1, Power cord ×1, Operating Precautions ×1
