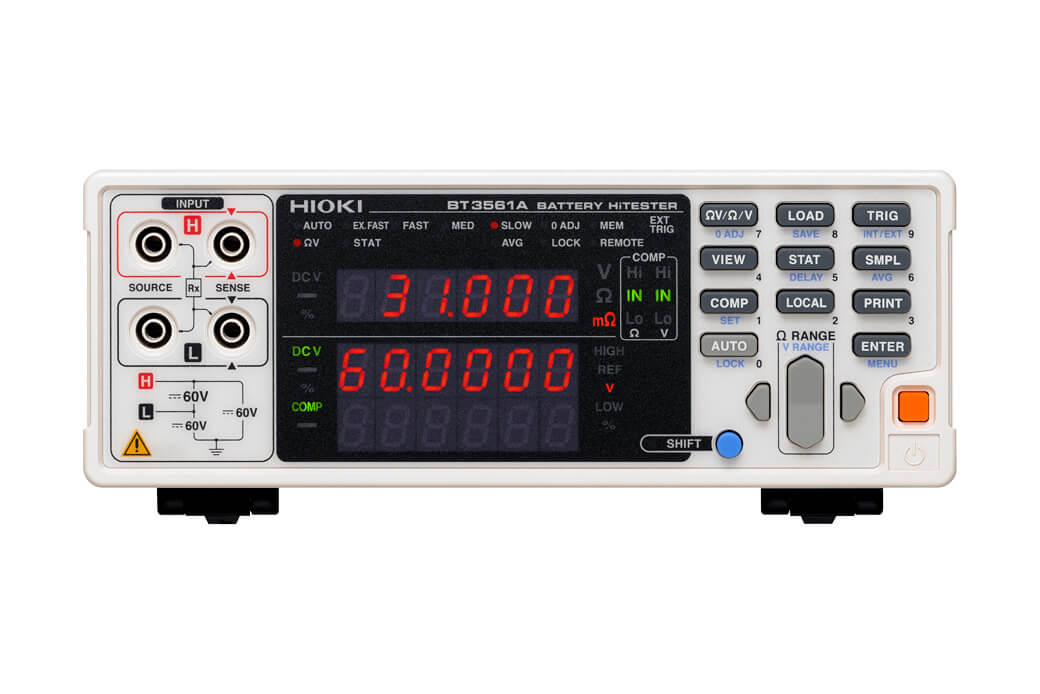

Fully automated production line testing of small cells for power motors or small packs of up to 60 V. HIOKI BATTERY HiTESTER BT3561A is a precision instrument designed for accurate battery testing in production lines. It ensures reliable measurement of internal resistance and voltage. Compact and efficient, it supports high-speed testing with excellent repeatability. Choose HIOKI BATTERY HiTESTER BT3561A for dependable performance in battery quality inspection. HIOKI BATTERY HiTESTER BT3561A Price in Bangladesh offers precise battery testing with advanced features for reliable performance. Ideal for professionals needing accurate results, this tester ensures durability and ease of use. For quality and affordability, check the latest HIOKI BATTERY HiTESTER BT3561A Price in Bangladesh today.
Key Features
- Simultaneous measurement of internal resistance and open circuit voltage.
- Fully automated production line testing of small cells for power motors or small packs of up to 60 V.
- Measure from 0 Ω to 3.1 kΩ (minimum resolution 1 μΩ)
- Resistance measurement ranges: 30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
Basic specifications
Accuracy guaranteed: 1 year
| Resistance measurement ranges |
30 mΩ（Max. display: 31.000 mΩ, resolution: 1 μΩ, measurement current: 100 mA）
300 mΩ（Max. display: 310.00 mΩ, resolution: 10 μΩ, measurement current: 10 mA）
3 Ω（Max. display: 3.1000 Ω, resolution: 100 μΩ, measurement current: 1 mA）
30 Ω（Max. display: 31.000 Ω, resolution: 1 mΩ, measurement current: 100 μA）
300 Ω（Max. display: 310.00 Ω, resolution: 10 mΩ, measurement current: 10 μA）
3 kΩ（Max. display: 3.1000 kΩ, resolution: 100 mΩ, measurement current: 10 μA）
Basic accuracy: ±0.5% rdg ±5 dgt（30 mΩ range or more）
Measurement frequency: 1 kHz ±0.2 Hz
Measurement method: AC four-terminal method |
| Voltage measurement ranges |
6 V（Max. display: 6.00000 V, resolution: 10 μV）
60 V（Max. display: 60.0000 V, resolution: 100 μV）
Basic accuracy: ±0.01% rdg. ±3 dgt. |
| Response time |
10 ms |
| Sampling period |
Ω or V (60 Hz): 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW)
ΩV (60 Hz): 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW)
Ω or V (50 Hz): 4 ms (EX.FAST), 12 ms (FAST), 42 ms (MEDIUM), 157 ms (SLOW)
ΩV (50 Hz): 8 ms (EX.FAST), 24 ms (FAST), 84 ms (MEDIUM), 259 ms (SLOW) |
| Functions |
Contact check, Zero adjustment (±1000 counts), Pulse measurement, Comparator (Hi/ IN/ Lo), Statistical calculations (Max. 30,000), Delay, Average, Panel saving/loading, Memory storage, LabVIEW® driver |

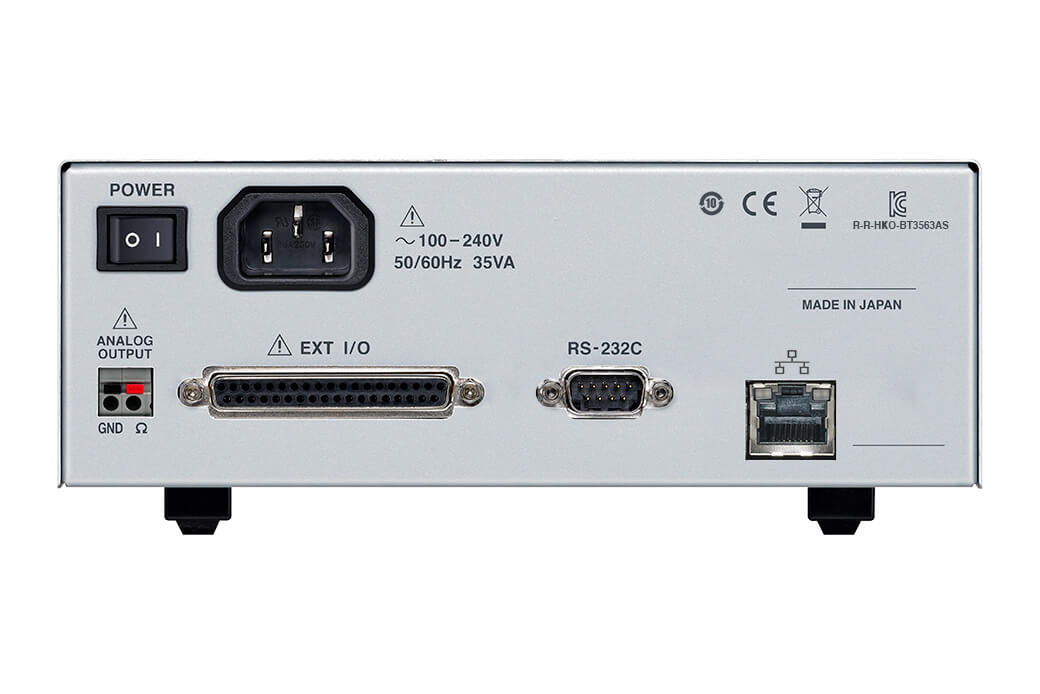

| Interfaces |
LAN (TCP/IP, 10BASE-T/100BASE-TX)
RS-232C (Max. 38.4 kbps, Available as printer I/F)
EXT I/O (37-pin Handler interface)
Analog output (DC 0 V to 3.1 V) |
| Power supply |
100 to 240 V AC, 50 Hz/60 Hz, 35 VA max. |
| Dimensions and mass |
215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz) |
| Included accessories |
Instruction manual ×1, Power cord ×1, Operating Precautions ×1 |
| Included accessories |
Instruction manual ×1, Power cord ×1, Operating Precautions ×1 |
| Included accessories |
Instruction manual ×1, Power cord ×1, Operating Precautions ×1 |
